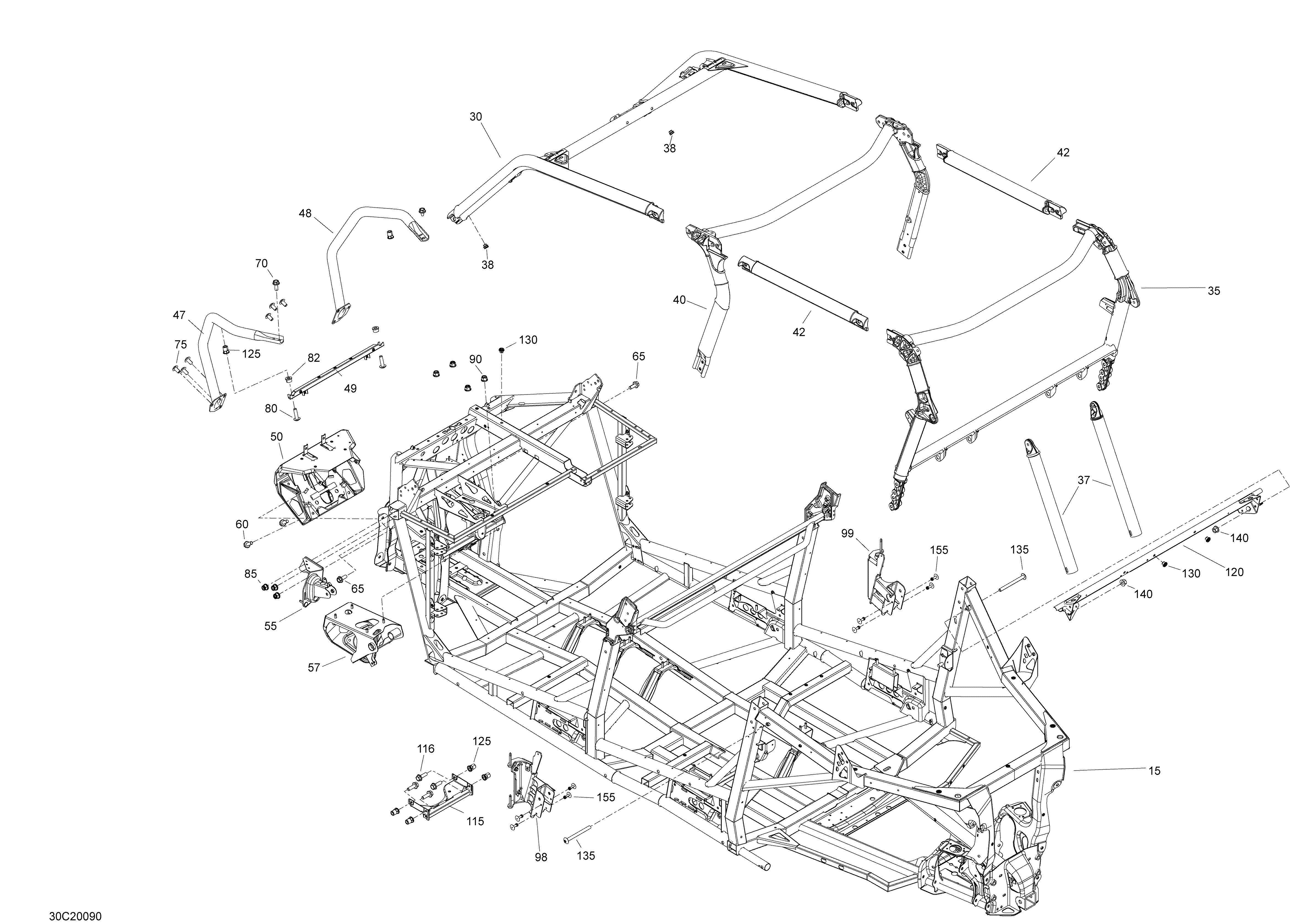

09- Frame для BRP 007 - Maverick Sport MAX 1000R - North America - 2020
-
№АртикулНазвание
-
30715006214 Deep Black, Front Cage. North americaDeep Black, Front Cage. North america
-
35715005841 Deep Black, Rear Cage. North americaDeep Black, Rear Cage. North america
-
37705206280 Rear Cage ExtensionRear Cage Extension
-
38250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
40705205900 Mid CageMid Cage
-
42705205401 Black, Cage ExtensionBlack, Cage Extension
-
47705206303 LH Front BumperLH Front Bumper
-
48705206308 RH Front BumperRH Front Bumper
-
49705206313 Cross MemberCross Member
-
50705205890 Front BumperFront Bumper
-
55705206217 Brake SupportBrake Support
-
57705206294 DPS SupportDPS Support
-
60207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
65207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
70207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
75250000746 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
80250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
82705207229 BushingBushing
-
85233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
90233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
98705207764 LH Hinge Ass'y SupportLH Hinge Ass'y Support
-
99705207765 RH Hinge Ass'y SupportRH Hinge Ass'y Support
-
115705206746 Bearing SupportBearing Support
-
116207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
120705206568 Mid TubeMid Tube
-
125293450307 Insert Half Hex Body M8 x 1.25Insert Half Hex Body M8 x 1.25
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
135250000806 Torx Truss M8 X 90Torx Truss M8 X 90
-
140233181414 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
155293150087 Pop Rivet 3/16”Pop Rivet 3/16”
