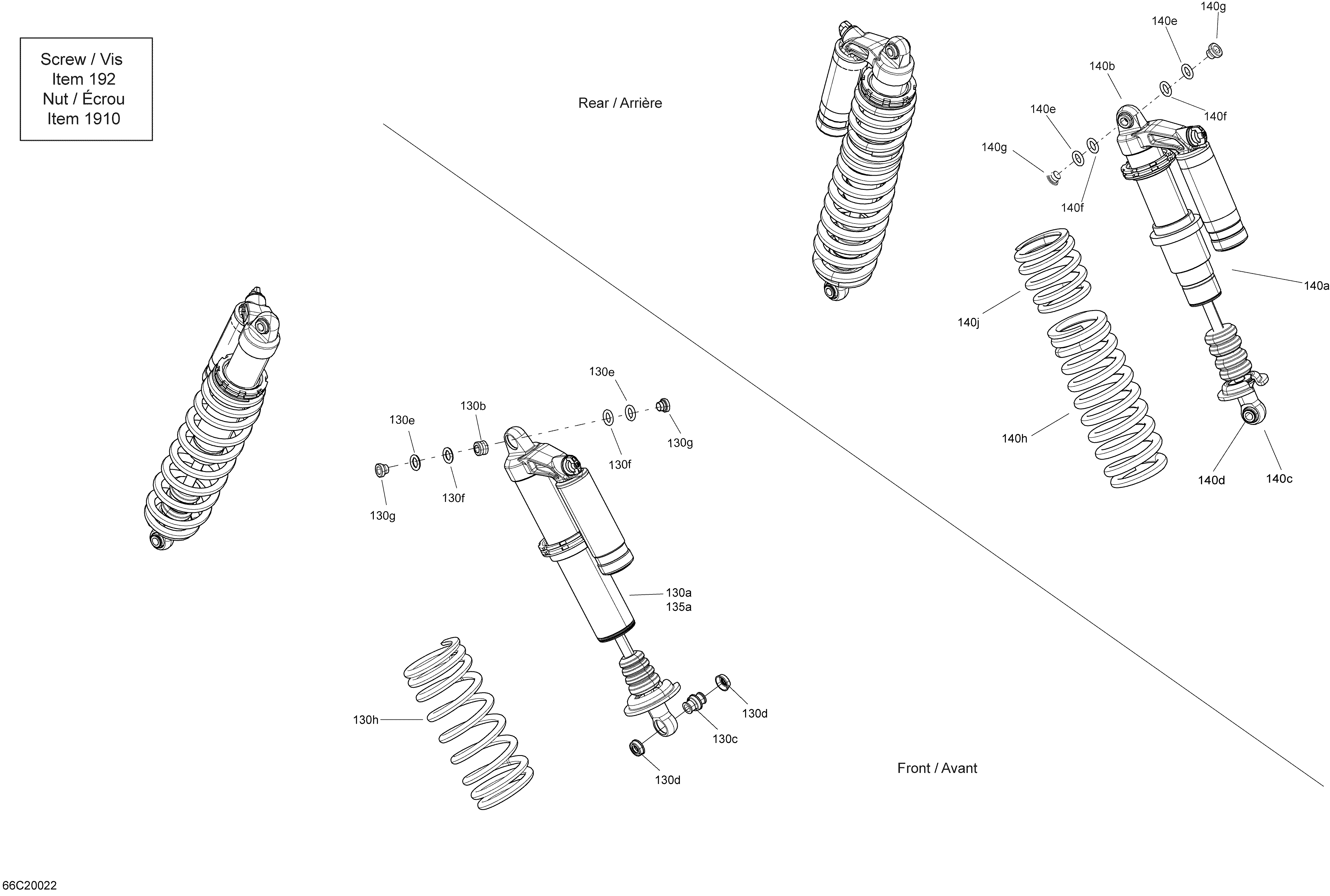

07- Shocks для BRP 007 - Maverick Sport MAX 1000R - North America - 2020
-
№АртикулНазвание
-
130a706203673 LH Front Shock. Includes 130a to 130fLH Front Shock. Includes 130a to 130f
-
130b715900329 Spherical BearingSpherical Bearing
-
130c715900330 Spherical BearingSpherical Bearing
-
130d715900331 ProtectorProtector
-
130e715900268 O-Ring BushingO-Ring Bushing
-
130f715900252 Retaining RingRetaining Ring
-
130h706203349 Can-Am Red Front SpringCan-Am Red Front Spring
-
135a706203675 RH Front Shock. Includes 135a to 135fRH Front Shock. Includes 135a to 135f
-
140a706003503 Rear Shock. Includes 140a to 140fRear Shock. Includes 140a to 140f
-
140b715900329 Spherical BearingSpherical Bearing
-
140c715900330 Spherical BearingSpherical Bearing
-
140d715900331 ProtectorProtector
-
140e715900268 O-Ring BushingO-Ring Bushing
-
140f715900252 Retaining RingRetaining Ring
-
140h706003179 Can-Am Red, Rear SpringCan-Am Red, Rear Spring
-
140j706003470 Can-Am Red, Rear SpringCan-Am Red, Rear Spring
-
192250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
1910233221466 Elastic Flange Nut M12Elastic Flange Nut M12
