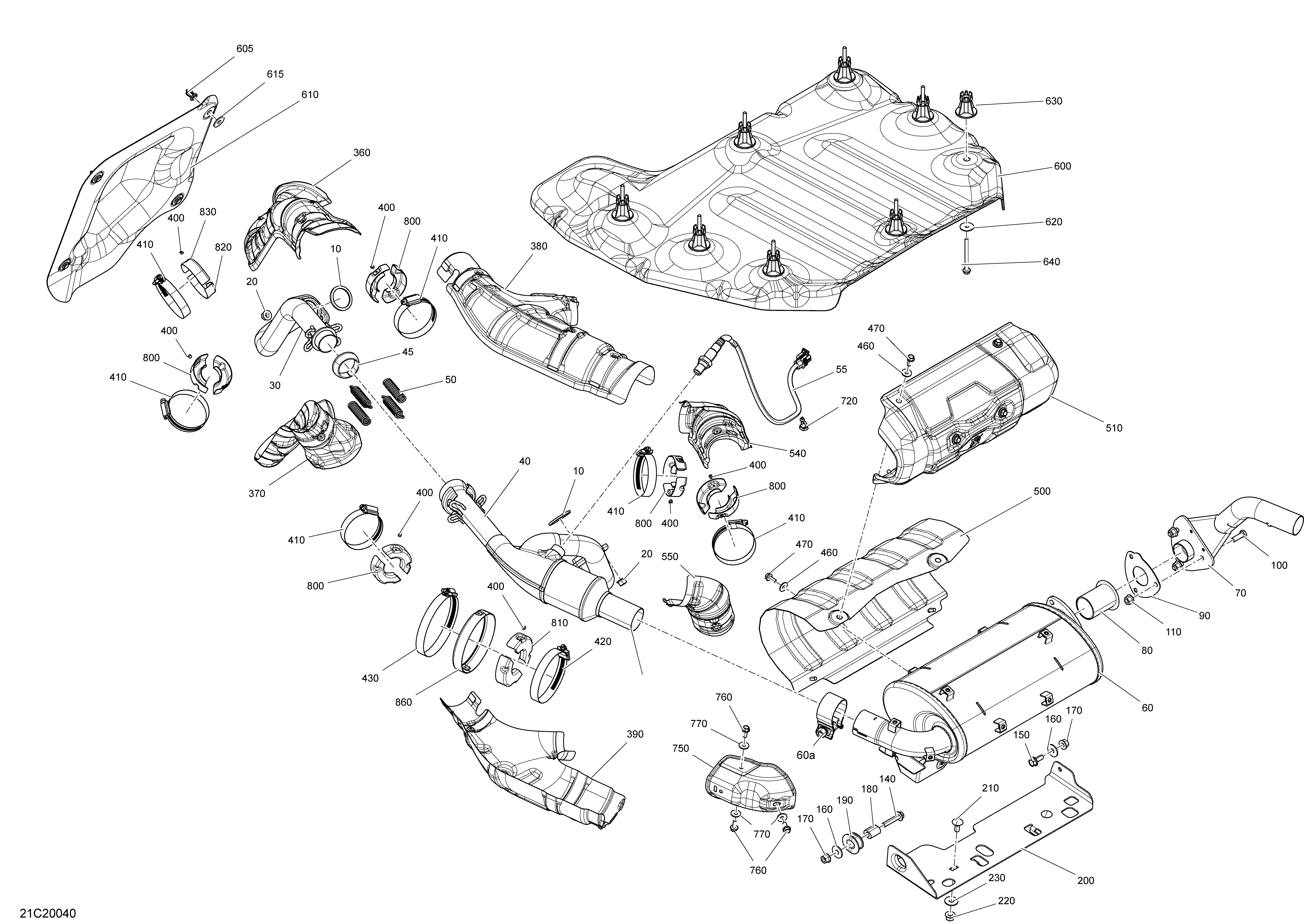

01- Exhaust для BRP 001 - Maverick Trail 800 - North America - 2020
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707601913 Front Exhaust PipeFront Exhaust Pipe
-
40707601916 Rear Exhaust PipeRear Exhaust Pipe
-
45707601814 Exhaust GasketExhaust Gasket
-
50707601834 SpringSpring
-
55707600872 Oxygen SensorOxygen Sensor
-
60703501046 Exhaust MufflerExhaust Muffler
-
60a293650228 Exhaust Pipe ClampExhaust Pipe Clamp
-
70707602520 Tail PipeTail Pipe
-
80707601803 Spark ArrestorSpark Arrestor
-
90707602205 GasketGasket
-
100207182546 Screw-Hex.Cap DIN.933Screw-Hex.Cap DIN.933
-
110233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
140207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160234082410 Flat Washer 8 mmFlat Washer 8 mm
-
170233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
180707601969 SpacerSpacer
-
190707602102 RubbermountRubbermount
-
200707601588 Muffler SupportMuffler Support
-
210207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
220233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
230234082410 Flat Washer 8 mmFlat Washer 8 mm
-
360707601923 Heat Shield, FrontHeat Shield, Front
-
370707602403 Front Heat ShieldFront Heat Shield
-
380707601925 Heat ShieldHeat Shield
-
390707601926 Heat ShieldHeat Shield
-
400293150071 Pop Rivet 1/8Pop Rivet 1/8
-
410293650258 Tridon Gear ClampTridon Gear Clamp
-
420293650250 Tridon Gear ClampTridon Gear Clamp
-
430293650261 Tridon Gear ClampTridon Gear Clamp
-
460234062410 Flat Washer 6 mmFlat Washer 6 mm
-
470250000906 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
500707601521 Heat ShieldHeat Shield
-
510707602041 Heat ShieldHeat Shield
-
540707601927 Heat Shield, RearHeat Shield, Rear
-
550707601928 Heat Shield, RearHeat Shield, Rear
-
600707602042 Heat ShieldHeat Shield
-
605293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
610707602043 Heat ShieldHeat Shield
-
615234082410 Flat Washer 8 mmFlat Washer 8 mm
-
620224060251 WasherWasher
-
630706002976 Heatshield SpacerHeatshield Spacer
-
640207566544 Hex. Flanged Screw M6x65Hex. Flanged Screw M6x65
-
720710005529 Dart MountDart Mount
-
750707602532 Heat ShieldHeat Shield
-
760250000906 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
770234062410 Flat Washer 6 mmFlat Washer 6 mm
-
800707602026 Exhaust Pipe SpacerExhaust Pipe Spacer
-
810707602027 Exhaust Pipe SpacerExhaust Pipe Spacer
-
820707601948 Exhaust Pipe SpacerExhaust Pipe Spacer
-
830707602016 Exhaust Pipe SpacerExhaust Pipe Spacer
-
860707602013 Exhaust Pipe SpacerExhaust Pipe Spacer
