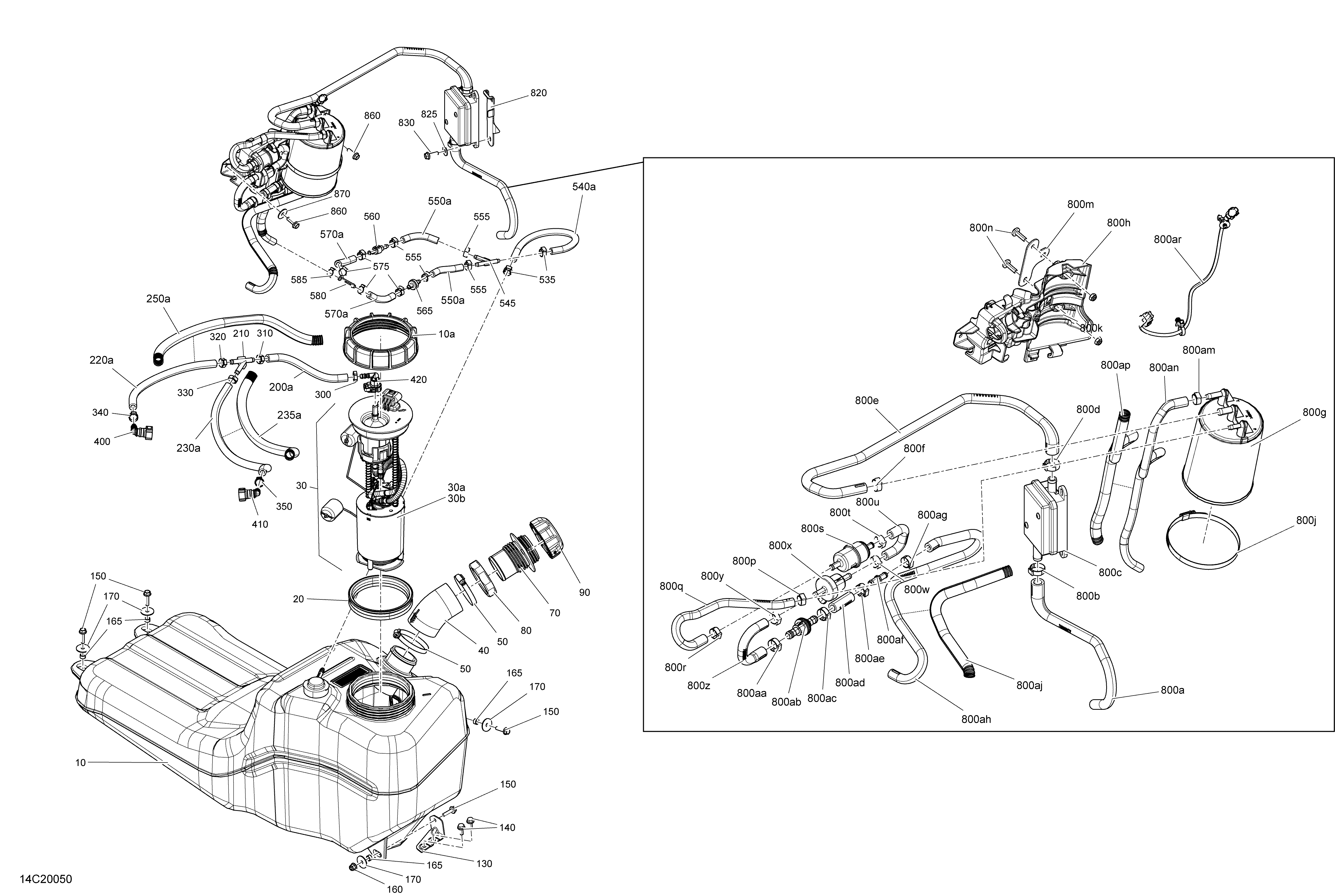

02- Fuel - EVAP для BRP 001 - Maverick Trail 800 - North America - 2020
-
№АртикулНазвание
-
10709000815 Fuel Tank Ass'y. Includes 10 to 10aFuel Tank Ass'y. Includes 10 to 10a
-
10a250100062 Special Nut M130Special Nut M130
-
20293250173 GasketGasket
-
30709001056 Fuel Pump. Includes 30 to 30bFuel Pump. Includes 30 to 30b
-
30a270600113 Fuel FilterFuel Filter
-
30b715900424 Fuel SenderFuel Sender
-
40709000828 Fil Neck HoseFil Neck Hose
-
50293650081 Norma ClampNorma Clamp
-
70709000867 Filler NeckFiller Neck
-
80211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
90709000868 Fuel CapFuel Cap
-
130709000997 Tank BracketTank Bracket
-
140207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
150207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
160233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
165293900135 SpacerSpacer
-
170250200029 Washer M6Washer M6
-
200a709000516 Fuel LineFuel Line
-
210293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
220a709000516 Fuel LineFuel Line
-
230a709000516 Fuel LineFuel Line
-
235a415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
250a415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
300293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
310293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
320293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
330293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
340293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
350293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
400275500700 Quick Attach 90°Quick Attach 90°
-
410275500700 Quick Attach 90°Quick Attach 90°
-
420275500921 Quick DisconnectQuick Disconnect
-
535293650042 Oetiker ClampOetiker Clamp
-
540a709000667 HoseHose
-
545293710059 Y-FittingY-Fitting
-
550a709000667 HoseHose
-
555293650042 Oetiker ClampOetiker Clamp
-
560513033469 Check ValveCheck Valve
-
565275500398 Check ValveCheck Valve
-
570a709000667 HoseHose
-
575293650042 Oetiker ClampOetiker Clamp
-
580293710059 Y-FittingY-Fitting
-
585293650042 Oetiker ClampOetiker Clamp
-
800a709000879 Formed HoseFormed Hose
-
800b293650186 Oetiker ClampOetiker Clamp
-
800c709000524 Air FilterAir Filter
-
800d293650186 Oetiker ClampOetiker Clamp
-
800e709000957 Formed HoseFormed Hose
-
800f293650053 Crimp ClampCrimp Clamp
-
800g709000806 Vapor CanisterVapor Canister
-
800h709000851 Canister SupportCanister Support
-
800j293650054 Tridon ClampTridon Clamp
-
800k232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
800m709000936 SupportSupport
-
800n250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
800p293650042 Oetiker ClampOetiker Clamp
-
800q709000853 Formed HoseFormed Hose
-
800r293650046 Oetiker ClampOetiker Clamp
-
800s513033719 FilterFilter
-
800t293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800u709000857 Formed HoseFormed Hose
-
800w293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800x709000443 Bleed ValveBleed Valve
-
800y293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800z709000881 Formed HoseFormed Hose
-
800aa293650053 Crimp ClampCrimp Clamp
-
800ab275500941 Valve-CheckValve-Check
-
800ac293650053 Crimp ClampCrimp Clamp
-
800ad709000882 HoseHose
-
800ae293650053 Crimp ClampCrimp Clamp
-
800af709000933 Flow ReducerFlow Reducer
-
800ag293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800ah709000883 Formed Hose. Includes 800ah to 800ajFormed Hose. Includes 800ah to 800aj
-
800aj415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
800am293650046 Oetiker Clamp. Includes 800am to 800apOetiker Clamp. Includes 800am to 800ap
-
800an709000667 HoseHose
-
800ap415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
800ar710005866 Extension Wiring HarnessExtension Wiring Harness
-
820709000935 Filter SupportFilter Support
-
825234062670 Flat Washer, StainlessFlat Washer, Stainless
-
830207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
860207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
870250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
