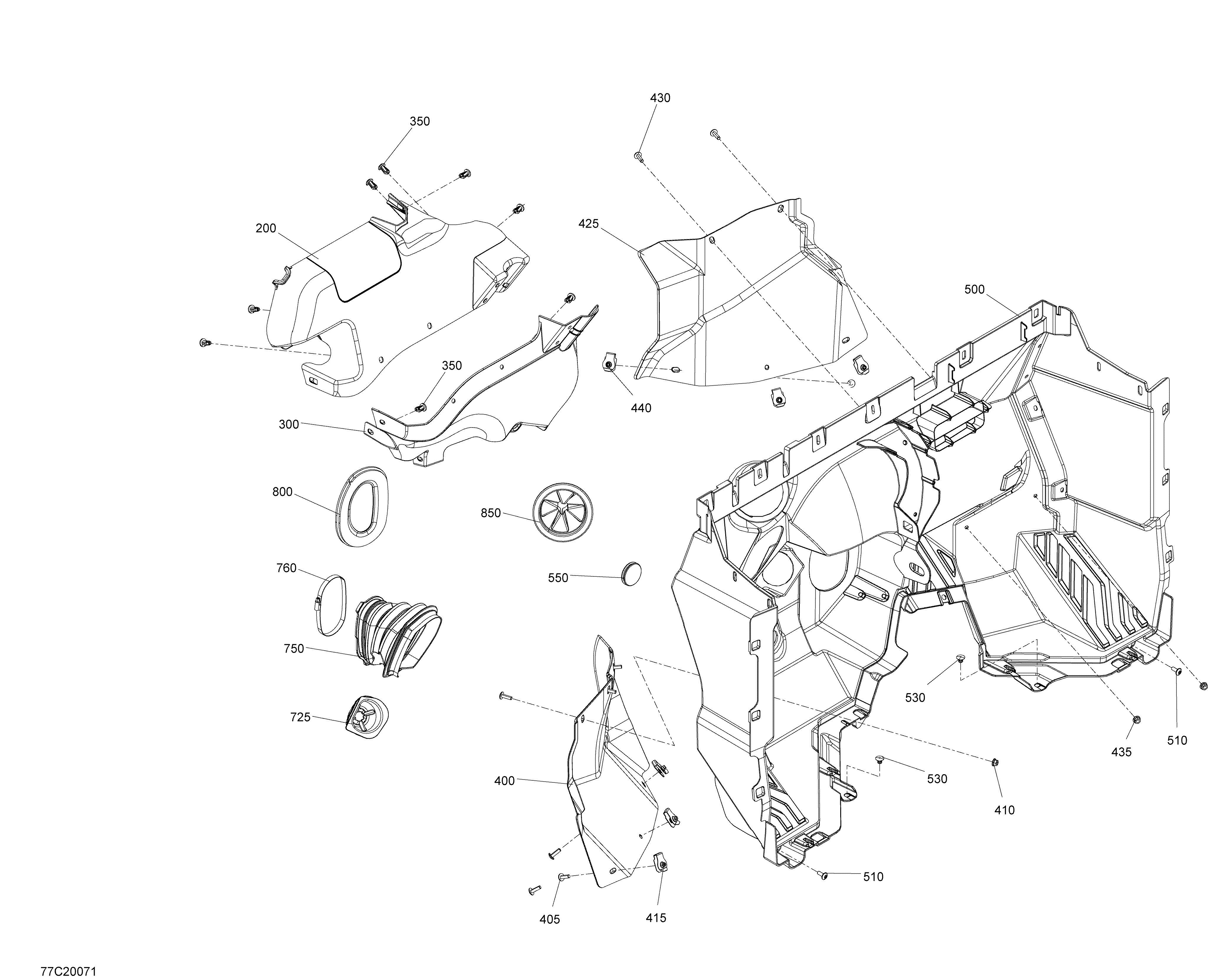

09- Cab Interior - Fire Wall Section для BRP 001 - Maverick Trail 800 - North America - 2020
-
№АртикулНазвание
-
200705013664 Front Upper Heat DeflectorFront Upper Heat Deflector
-
300705012498 Front Lower Heat DeflectorFront Lower Heat Deflector
-
350293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
400705013616 LH Front DeflectorLH Front Deflector
-
405250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
410233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
415250100177 Panel nut M6Panel nut M6
-
425705013617 RH Front DeflectorRH Front Deflector
-
430250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
435233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
440250100177 Panel nut M6Panel nut M6
-
450293150100 Pop Rivet 3/16''. Not ShownPop Rivet 3/16''. Not Shown
-
475250000720 Torx Screw K50 X 16. Not ShownTorx Screw K50 X 16. Not Shown
-
500707900777 Front Lower BulkheadFront Lower Bulkhead
-
510250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
530293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
550293250242 Rubber CoverRubber Cover
-
725707900511 Steering Column DeflectorSteering Column Deflector
-
750707900515 Break Pedal DeflectorBreak Pedal Deflector
-
760514052983 Norma Gear ClampNorma Gear Clamp
-
800707900516 Gas Pedal DeflectorGas Pedal Deflector
-
850707900517 Front Rubber DeflectorFront Rubber Deflector
