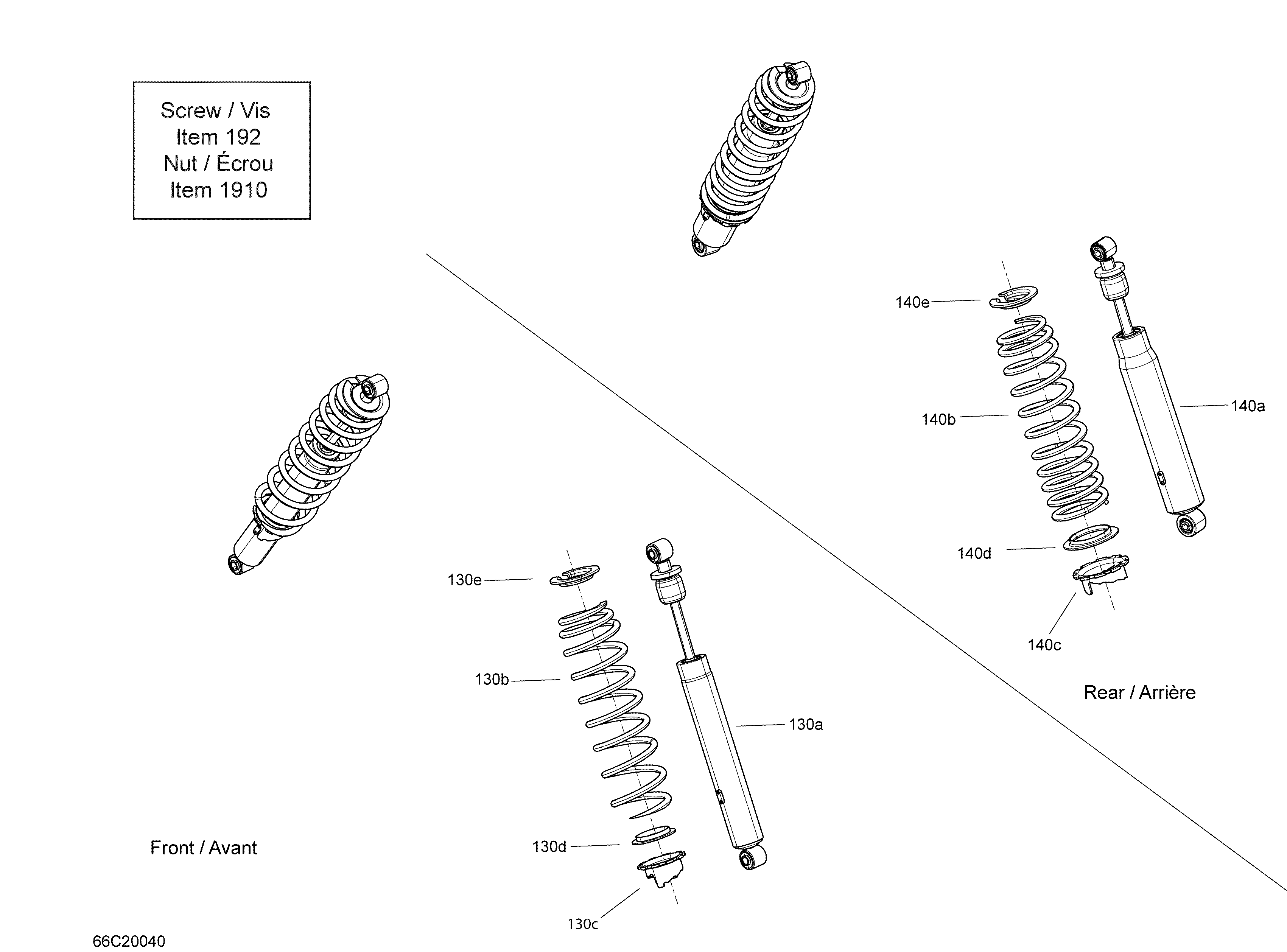

07- Shocks - DPS для BRP 001 - Maverick Trail 800 - North America - 2020
-
№АртикулНазвание
-
130a706202835 Front ShockFront Shock
-
130b706203173 Can-Am Red Front SpringCan-Am Red Front Spring
-
130c706000910 Adjustable RingAdjustable Ring
-
130d706000911 Protector RingProtector Ring
-
130e706001894 Spring CupSpring Cup
-
140a706002719 Rear ShockRear Shock
-
140b706003007 Can-Am Red Rear SpringCan-Am Red Rear Spring
-
140c706000910 Adjustable RingAdjustable Ring
-
140d706000911 Protector RingProtector Ring
-
140e706001894 Spring CupSpring Cup
-
192250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
1910233221466 Elastic Flange Nut M12Elastic Flange Nut M12
