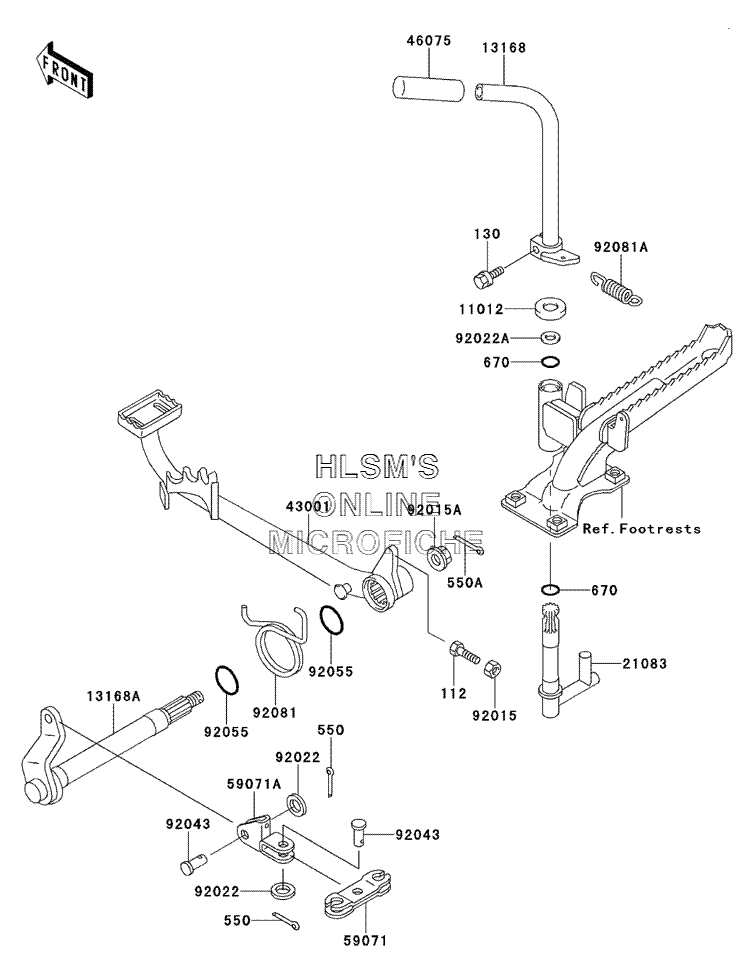

BRAKE PEDAL для Kawasaki Bayou 300 (KLF300-B14) - 2001 года выпуска
-
№АртикулНазвание
-
112112D0622 BOLT-UPSETBOLT-UPSET
-
130130S0620 BOLT-FLANGED, 6X20 (BLACK)BOLT-FLANGED, 6X20 (BLACK)
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D2518 PIN-COTTER, 2.5X18PIN-COTTER, 2.5X18
-
670670B2012 O RING, 12MMO RING, 12MM
-
1101211012-1482 CAP, STEPCAP, STEP
-
1316813168-1282 LEVER, PARKING BRAKELEVER, PARKING BRAKE
-
13168A13168-1366 LEVER, REAR BRAKELEVER, REAR BRAKE
-
2108321083-1072 ARM, PARKING BRAKEARM, PARKING BRAKE
-
4300143001-1236 LEVER-BRAKE, PEDAL, REARLEVER-BRAKE, PEDAL, REAR
-
4607546075-1062 GRIP, PARKING BRAKE LEVERGRIP, PARKING BRAKE LEVER
-
5907159071-1106 JOINTJOINT
-
59071A59071-1138 JOINTJOINT
-
9201592015-1410 NUT, 6MMNUT, 6MM
-
92015A92015-1415 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
92022A92022-1936 WASHER, 12X20X3.2WASHER, 12X20X3.2
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9205592055-1257 RING-O, 23.7X1.9RING-O, 23.7X1.9
-
9208192081-1887 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
92081A92081-1922 SPRING, BRAKE LEVER RETURNSPRING, BRAKE LEVER RETURN
