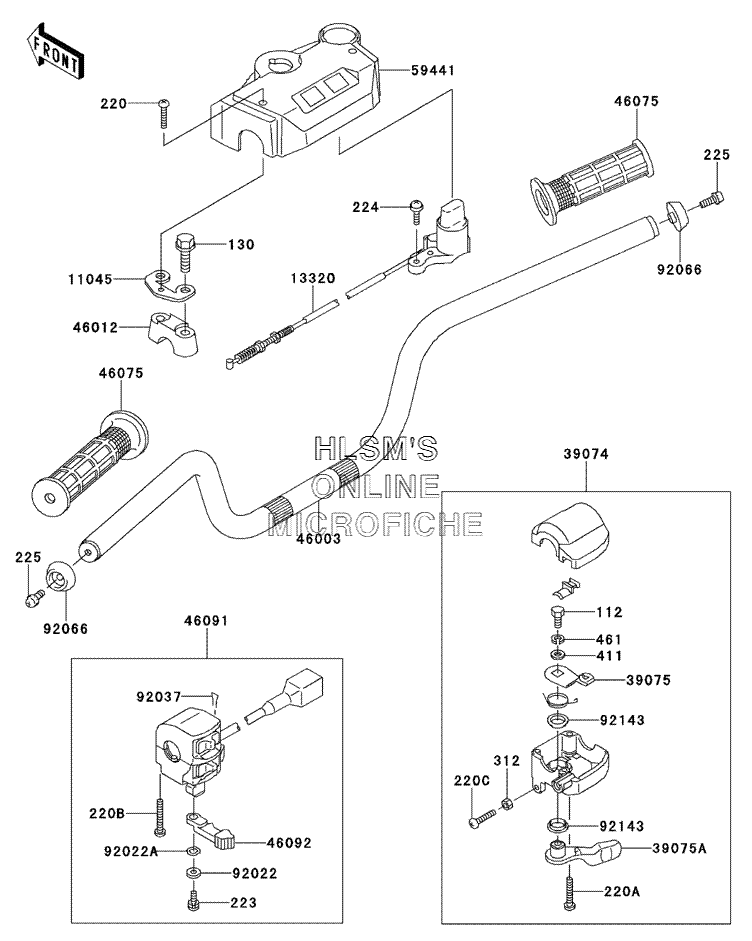

HANDLEBAR для Kawasaki Bayou 300 (KLF300-B14) - 2001 года выпуска
-
№АртикулНазвание
-
112112D0614 BOLT-UPSETBOLT-UPSET
-
130130P0860 BOLT-FLANGEDBOLT-FLANGED
-
220220C0420 SCREW-PAN-CROS, 4X20SCREW-PAN-CROS, 4X20
-
220A220C0530 SCREW-PAN-CROSSCREW-PAN-CROS
-
220B220C0535 SCREW-PAN-CROSSCREW-PAN-CROS
-
220C220C0630 SCREW-PAN-CROS, 6X30 (BLACK)SCREW-PAN-CROS, 6X30 (BLACK)
-
223223C0512 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
224224B0520 SCREW-PAN-WP-CROS, 5X20SCREW-PAN-WP-CROS, 5X20
-
225225C0620 SCREW-PAN-WSP-CROS, 6X20SCREW-PAN-WSP-CROS, 6X20
-
312312C0600 NUT-HEX, 6MM (BLACK)NUT-HEX, 6MM (BLACK)
-
411411E0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
461461L0600 WASHER-SPRINGWASHER-SPRING
-
1104511045-1925 BRACKET, HANDLE COVERBRACKET, HANDLE COVER
-
1332013320-1007 LEVER-ASSY, REVERSELEVER-ASSY, REVERSE
-
3907439074-1055 LEVER-ASSY-THROTTLELEVER-ASSY-THROTTLE
-
3907539075-1054 LEVER-THROTTLE, ARMLEVER-THROTTLE, ARM
-
39075A39075-1059 LEVER-THROTTLELEVER-THROTTLE
-
4600346003-1292 HANDLEHANDLE
-
4601246012-1168 HOLDER-HANDLEHOLDER-HANDLE
-
4607546075-1056 GRIPGRIP
-
4609146091-1462 HOUSING-ASSY-CONTROL (LEFT)HOUSING-ASSY-CONTROL (LEFT)
-
4609246092-1149 LEVER-GRIP, CHOKELEVER-GRIP, CHOKE
-
5944159441-1077 COVER-HANDLECOVER-HANDLE
-
9202292022-1837 WASHER, 5MMWASHER, 5MM
-
92022A92022-1838 WASHER, WAVE, 5MMWASHER, WAVE, 5MM
-
9203792037-1836 CLAMP, CLIPCLAMP, CLIP
-
9206692066-1191 PLUG, HANDLEPLUG, HANDLE
-
9214392143-1138 COLLARCOLLAR
