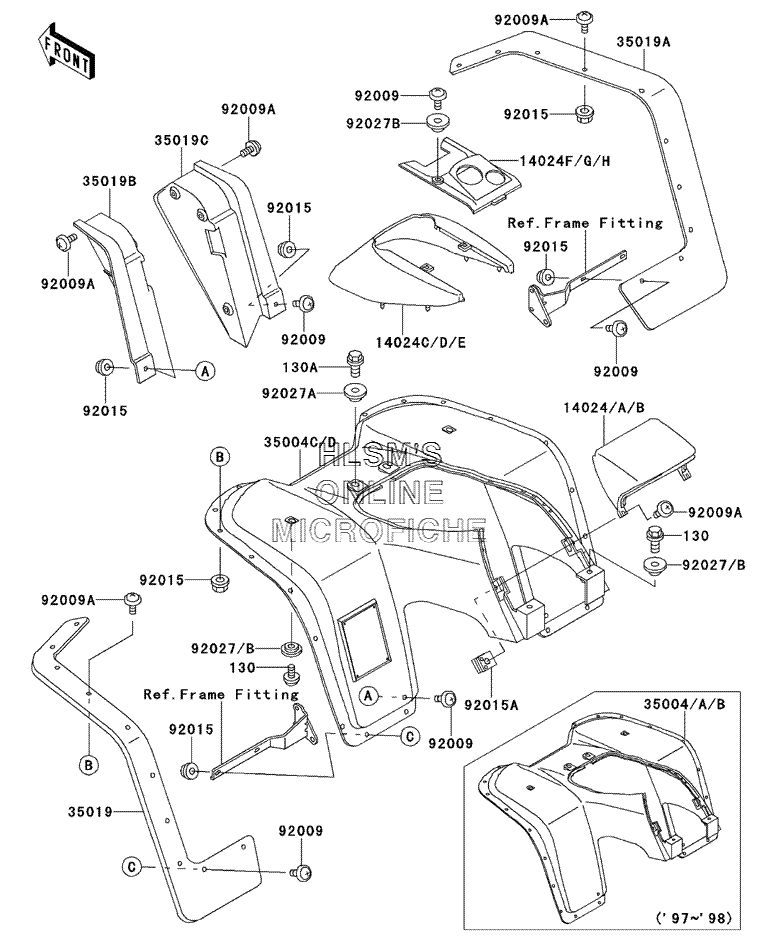

FENDER - FRONT для Kawasaki Bayou 300 (KLF300-B14) - 2001 года выпуска
-
№АртикулНазвание
-
130130C0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130C0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
14024A14024-1093-6A COVER, FRONT FENDER, REAR (H.GREEN)COVER, FRONT FENDER, REAR (H.GREEN)
-
14024B14024-1093-6L COVER, FRONT FENDER, REAR (F.RED)COVER, FRONT FENDER, REAR (F.RED)
-
14024D14024-1544-6A COVER, FRONT FENDER, FRONT (H.GREEN)COVER, FRONT FENDER, FRONT (H.GREEN)
-
14024E14024-1544-6L COVER, FRONT FENDER, FRONT (F.RED)COVER, FRONT FENDER, FRONT (F.RED)
-
14024G14024-1545-6A COVER, FUEL TANK (H.GREEN)COVER, FUEL TANK (H.GREEN)
-
14024H14024-1545-6L COVER, FUEL TANK (F.RED)COVER, FUEL TANK (F.RED)
-
35004C35004-1382-6A FENDER-FRONT (H.GREEN)FENDER-FRONT (H.GREEN)
-
35004D35004-1382-6L FENDER-FRONT (F.RED)FENDER-FRONT (F.RED)
-
3501935019-1146 FLAP, FRONT (LEFT)FLAP, FRONT (LEFT)
-
35019A35019-1147 FLAP, FRONT (RIGHT)FLAP, FRONT (RIGHT)
-
35019B35019-1208 FLAP, FRONT INSIDE (LEFT)FLAP, FRONT INSIDE (LEFT)
-
35019C35019-1209 FLAP, FRONT INSIDE (RIGHT)FLAP, FRONT INSIDE (RIGHT)
-
9200992009-1181 SCREW, 6X18 (BLACK)SCREW, 6X18 (BLACK)
-
92009A92009-1288 SCREW, 6X14SCREW, 6X14
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
92027A92027-1909 COLLAR, L=5.6COLLAR, L=5.6
-
92027B92027-1964 COLLAR, L=4.7COLLAR, L=4.7
