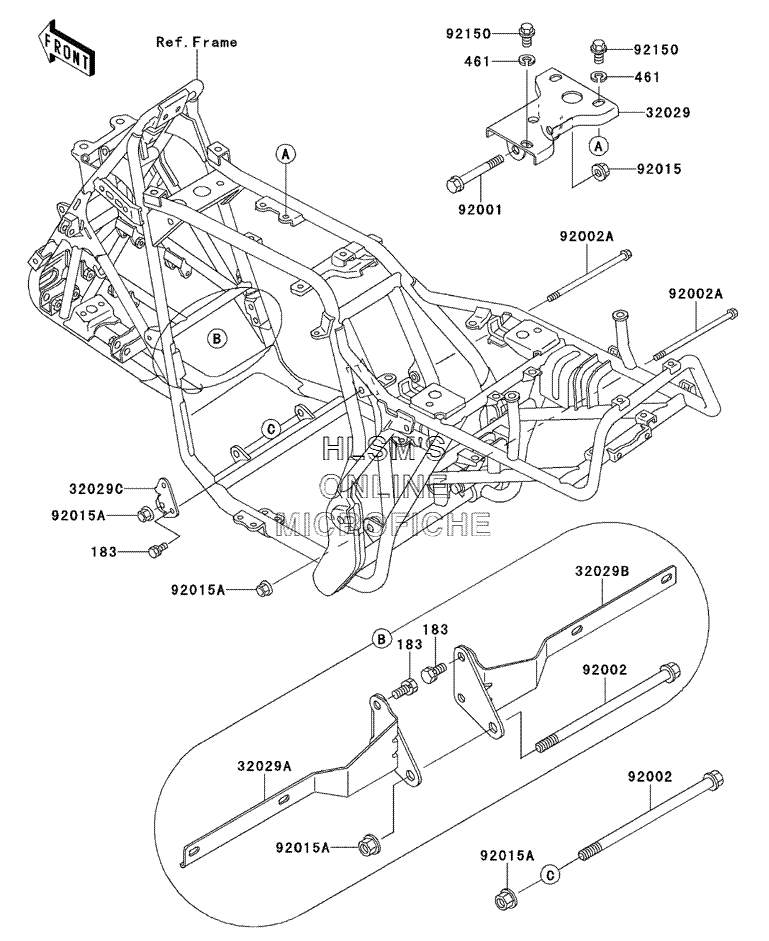

FRAME FITTINGS для Kawasaki Bayou 300 (KLF300-B14) - 2001 года выпуска
-
№АртикулНазвание
-
183183J0818 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
461461K0800 WASHER-SPRING, 8MM (BLACK)WASHER-SPRING, 8MM (BLACK)
-
3202932029-1569 BRACKET-ENGINE, TOPBRACKET-ENGINE, TOP
-
32029A32029-1594 BRACKET-ENGINE (LEFT)BRACKET-ENGINE (LEFT)
-
32029B32029-1595 BRACKET-ENGINE (RIGHT)BRACKET-ENGINE (RIGHT)
-
32029C32029-1597 BRACKET-ENGINEBRACKET-ENGINE
-
9200192001-1615 BOLT, FLANGED, 8X60 (BLACK)BOLT, FLANGED, 8X60 (BLACK)
-
9200292002-1546 BOLT, FLANGED, 10X180BOLT, FLANGED, 10X180
-
92002A92002-1548 BOLT, FLANGED, 10X190BOLT, FLANGED, 10X190
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1727 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9215092150-1066 BOLT, FLANGED, 8X14BOLT, FLANGED, 8X14
