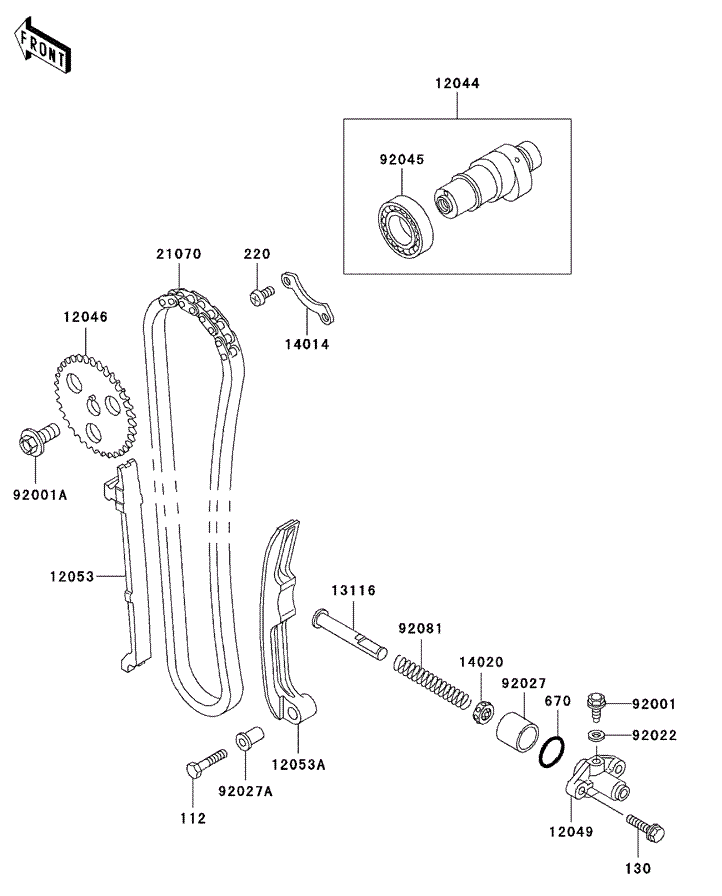

CAMSHAFT(S)/TENSIONER для Kawasaki Lakota Sport (KLF300-B1) - 2001 года выпуска
-
№АртикулНазвание
-
112112G0630 BOLT-UPSETBOLT-UPSET
-
130130Y0625 BOLT-FLANGEDBOLT-FLANGED
-
220220B0610 SCREW-PAN-CROS, 6X10SCREW-PAN-CROS, 6X10
-
670670B2021 O RING, 21MMO RING, 21MM
-
1204412044-1149 CAMSHAFT-VALVECAMSHAFT-VALVE
-
1204612046-1037 SPROCKET, CAM CHAIN (32 TEETH)SPROCKET, CAM CHAIN (32 TEETH)
-
1204912049-1055 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
1205312053-1358 GUIDE-CHAIN, CAMGUIDE-CHAIN, CAM
-
12053A12053-1359 GUIDE-CHAIN, CAMGUIDE-CHAIN, CAM
-
1311613116-1019 ROD-PUSH, TENSIONERROD-PUSH, TENSIONER
-
1401414014-1030 PLATE-POSITIONPLATE-POSITION
-
1402014020-1054 RETAINER, TENSIONERRETAINER, TENSIONER
-
2107021070-013 CHAIN, CAMSHAFT, BF05TX90LCHAIN, CAMSHAFT, BF05TX90L
-
9200192001-1155 BOLT, TENSIONER ADJUSTBOLT, TENSIONER ADJUST
-
92001A92001-1859 BOLT, 10X23BOLT, 10X23
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9202792027-1273 COLLAR, TENSIONERCOLLAR, TENSIONER
-
92027A92027-155 COLLAR, L=17.6COLLAR, L=17.6
-
9204592045-1056 BEARING-BALL, #6005C4BEARING-BALL, #6005C4
-
9208192081-1105 SPRING, TENSIONERSPRING, TENSIONER
