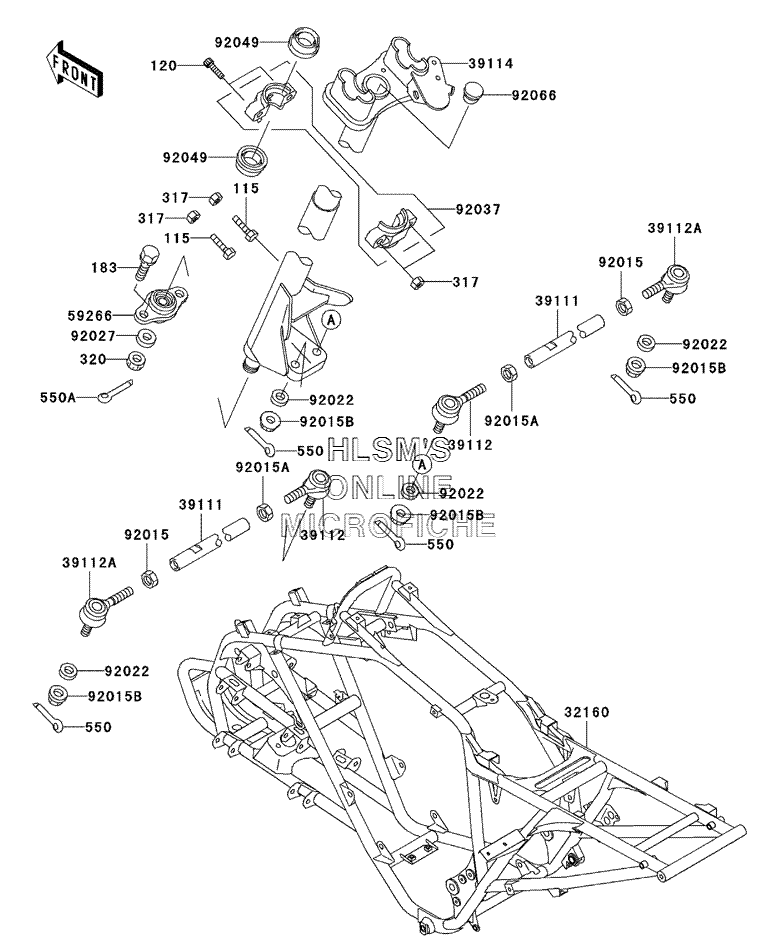

FRAME для Kawasaki Lakota Sport (KLF300-B1) - 2001 года выпуска
-
№АртикулНазвание
-
115115G0830 BOLT-SMALL-UPSET, 8X30BOLT-SMALL-UPSET, 8X30
-
120120P0850 BOLT-SOCKET, 8X50BOLT-SOCKET, 8X50
-
183183G0822 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
317317G0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
320320H1000 NUT-CASTLENUT-CASTLE
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D2518 PIN-COTTER, 2.5X18PIN-COTTER, 2.5X18
-
3216032160-1676-5A FRAME-COMP, SILVERFRAME-COMP, SILVER
-
3911139111-1069 ROD-TIEROD-TIE
-
3911239112-1063 RODEND-TIERODEND-TIE
-
39112A39112-1064 RODEND-TIERODEND-TIE
-
3911439114-1080-5A SHAFT-COMP-STEERINGSHAFT-COMP-STEERING
-
5926659266-1066 JOINT-BALLJOINT-BALL
-
9201592015-1460 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015A92015-1494 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015B92015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9202292022-239 WASHER, 10.5X20X1WASHER, 10.5X20X1
-
9202792027-1817 COLLAR, 10X21.3X7COLLAR, 10X21.3X7
-
9203792037-1839 CLAMP, STEERING SHAFTCLAMP, STEERING SHAFT
-
9204992049-1278 SEAL-OIL, SR7 25 34 7.8 NSSEAL-OIL, SR7 25 34 7.8 NS
-
9206692066-1220 PLUGPLUG
