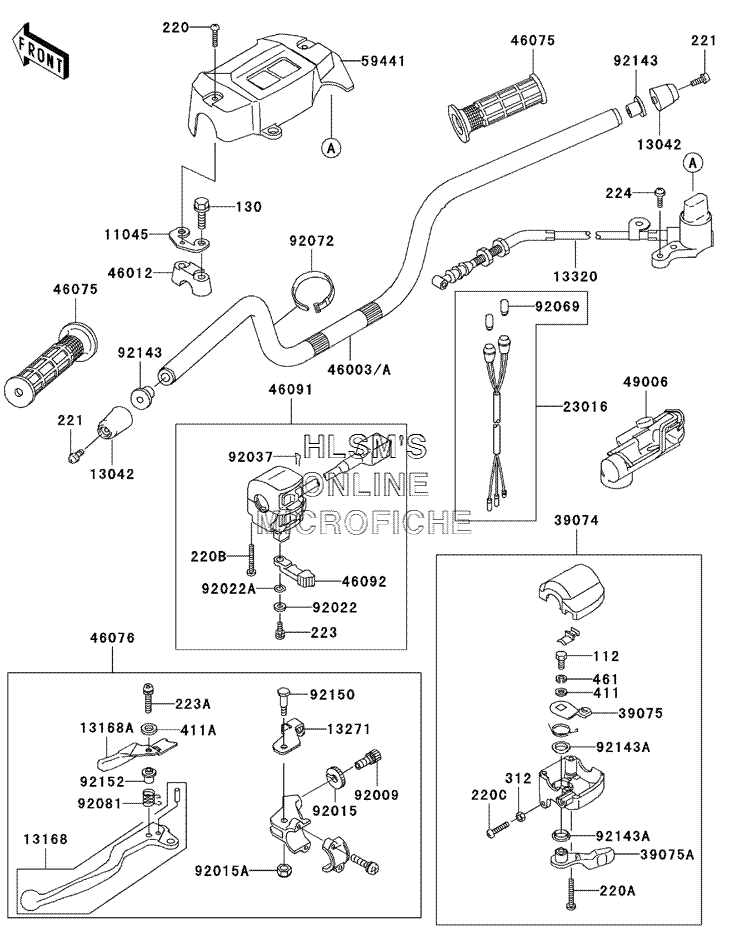

HANDLEBAR для Kawasaki Lakota Sport (KLF300-B1) - 2001 года выпуска
-
№АртикулНазвание
-
112112D0614 BOLT-UPSETBOLT-UPSET
-
130130P0860 BOLT-FLANGEDBOLT-FLANGED
-
220220C0420 SCREW-PAN-CROS, 4X20SCREW-PAN-CROS, 4X20
-
220A220C0530 SCREW-PAN-CROSSCREW-PAN-CROS
-
220B220C0535 SCREW-PAN-CROSSCREW-PAN-CROS
-
220C220C0630 SCREW-PAN-CROS, 6X30 (BLACK)SCREW-PAN-CROS, 6X30 (BLACK)
-
221221C0650 SCREW-CSK-CROSSCREW-CSK-CROS
-
223223C0512 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
1104511045-1925 BRACKET, HANDLE COVERBRACKET, HANDLE COVER
-
1304213042-1005 WEIGHT, HANDLEWEIGHT, HANDLE
-
1316813168-1672 LEVER (LEFT)LEVER (LEFT)
-
13168A13168-1673 LEVER, LOCKLEVER, LOCK
-
1327113271-1259 PLATE, LOCKPLATE, LOCK
-
1332013320-1010 LEVER-ASSY, REVERSELEVER-ASSY, REVERSE
-
2301623016-1083 LAMP-ASSY, NEUTRAL & REVERSELAMP-ASSY, NEUTRAL & REVERSE
-
3907439074-1055 LEVER-ASSY-THROTTLELEVER-ASSY-THROTTLE
-
3907539075-1054 LEVER-THROTTLE, ARMLEVER-THROTTLE, ARM
-
39075A39075-1059 LEVER-THROTTLELEVER-THROTTLE
-
4600346003-1410-5A HANDLE, SILVER NO.40HANDLE, SILVER NO.40
-
4601246012-1168 HOLDER-HANDLEHOLDER-HANDLE
-
4607546075-1056 GRIPGRIP
-
4607646076-1224 LEVER-ASSY-GRIP (LEFT)LEVER-ASSY-GRIP (LEFT)
-
4609146091-1462 HOUSING-ASSY-CONTROL (LEFT)HOUSING-ASSY-CONTROL (LEFT)
-
4609246092-1149 LEVER-GRIP, CHOKELEVER-GRIP, CHOKE
-
4900649006-1338 BOOT (RIGHT)BOOT (RIGHT)
-
5944159441-1111 COVER-HANDLECOVER-HANDLE
-
9200992009-1435 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
9201592015-1596 NUT, CABLE ADJUST LOCK, 8MMNUT, CABLE ADJUST LOCK, 8MM
-
92015A92015-1829 NUTNUT
-
9202292022-1837 WASHER, 5MMWASHER, 5MM
-
92022A92022-1838 WASHER, WAVE, 5MMWASHER, WAVE, 5MM
-
9203792037-1836 CLAMP, CLIPCLAMP, CLIP
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
9207292072-031 BAND, L=149BAND, L=149
-
9208192081-1358 SPRING, LOCK RETURNSPRING, LOCK RETURN
-
9214392143-1016 COLLAR, L=9.6COLLAR, L=9.6
-
92143A92143-1138 COLLARCOLLAR
-
9215092150-1420 BOLTBOLT
-
9215292152-1176 COLLARCOLLAR
-
223A223C0520 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
224224B0520 SCREW-PAN-WP-CROS, 5X20SCREW-PAN-WP-CROS, 5X20
-
312312C0600 NUT-HEX, 6MM (BLACK)NUT-HEX, 6MM (BLACK)
-
411411E0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
411A411F0500 WASHER-PLAIN, 5MM (BLACK)WASHER-PLAIN, 5MM (BLACK)
-
461461L0600 WASHER-SPRINGWASHER-SPRING
