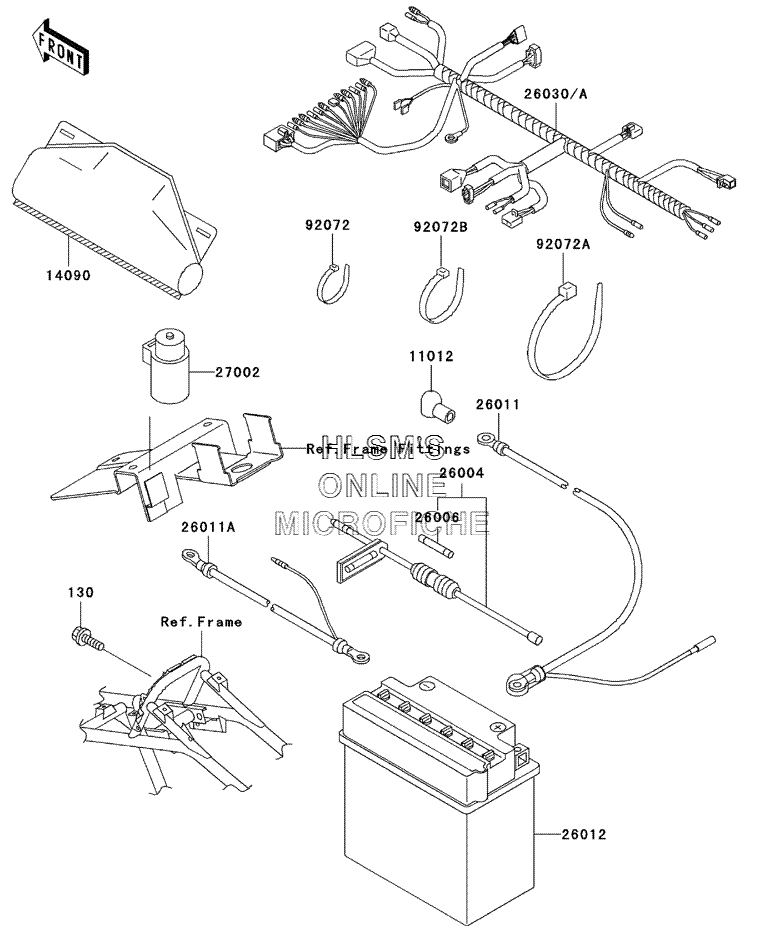

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Lakota Sport (KLF300-B1) - 2001 года выпуска
-
№АртикулНазвание
-
130130B0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1101211012-1354 CAP, TERMINALCAP, TERMINAL
-
1409014090-1611 COVER, COUPLERCOVER, COUPLER
-
2600426004-3715 FUSE-ASSYFUSE-ASSY
-
2600626006-1059 FUSE, 30A, L=30FUSE, 30A, L=30
-
2601126011-1602 WIRE-LEAD, BATTERY (+)WIRE-LEAD, BATTERY (+)
-
26011A26011-1782 WIRE-LEAD, BATTERY (-)WIRE-LEAD, BATTERY (-)
-
2601226012-1388 BATTERY, YB14A-A2, 12V 14AHBATTERY, YB14A-A2, 12V 14AH
-
2603026030-1796 HARNESS, MAINHARNESS, MAIN
-
2700227002-1095 RELAY-ASSYRELAY-ASSY
-
9207292072-031 BAND, L=149BAND, L=149
-
92072A92072-1197 BAND, L=365BAND, L=365
-
92072B92072-1239 BAND, L=188BAND, L=188
