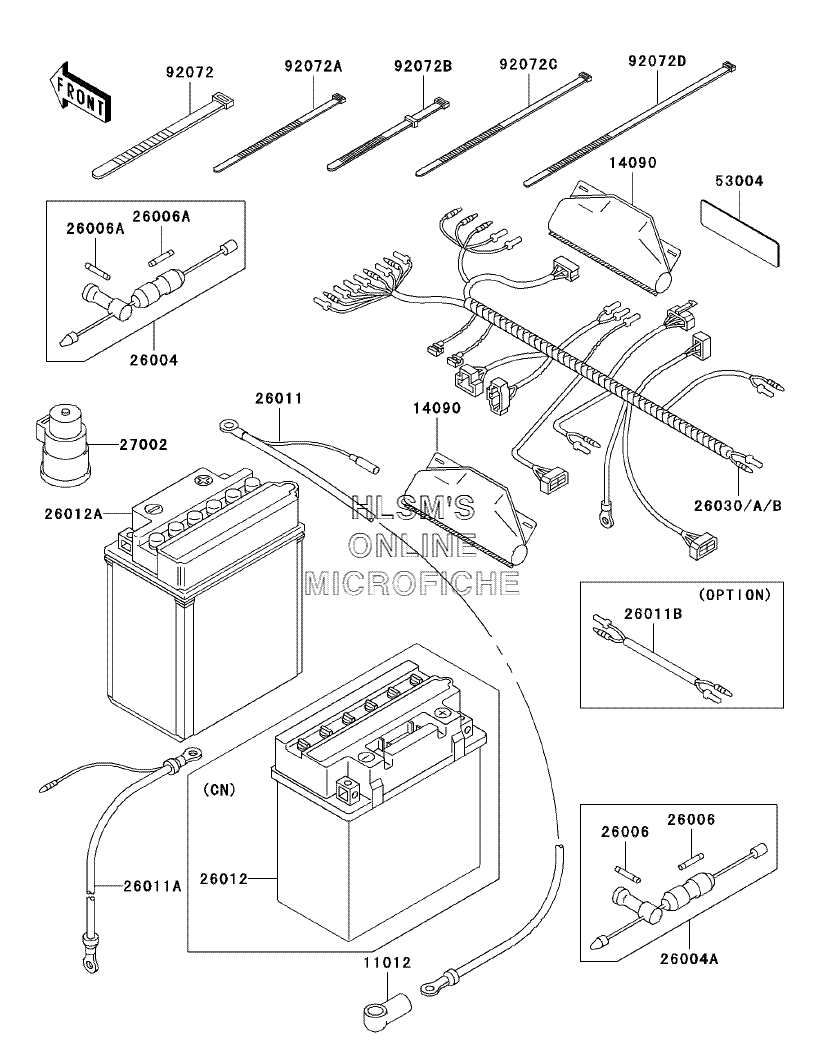

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Prairie 300 4x4 (KVF300-A4) - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1354 CAP, TERMINALCAP, TERMINAL
-
1409014090-1331 COVER, COUPLERCOVER, COUPLER
-
2600426004-1114 FUSE-ASSYFUSE-ASSY
-
26004A26004-3715 FUSE-ASSYFUSE-ASSY
-
2600626006-1059 FUSE, 30A, L=30FUSE, 30A, L=30
-
26006A26006-1074 FUSE, 5A, L=30FUSE, 5A, L=30
-
2601126011-1513 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011A26011-1637 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
26011B26011-1763 WIRE-LEAD, ACCESSORY CONNECT (OPT)WIRE-LEAD, ACCESSORY CONNECT (OPT)
-
26012A26012-1388 BATTERY, YB14A-A2, 12V 14AHBATTERY, YB14A-A2, 12V 14AH
-
26030B26030-1786 HARNESS, MAINHARNESS, MAIN
-
2700227002-1095 RELAY-ASSYRELAY-ASSY
-
5300453004-1070 MATMAT
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-031 BAND, L=149BAND, L=149
-
92072B92072-056 BAND, L=186BAND, L=186
-
92072C92072-1239 BAND, L=188BAND, L=188
-
92072D92072-3509 BAND, L=292.1BAND, L=292.1
