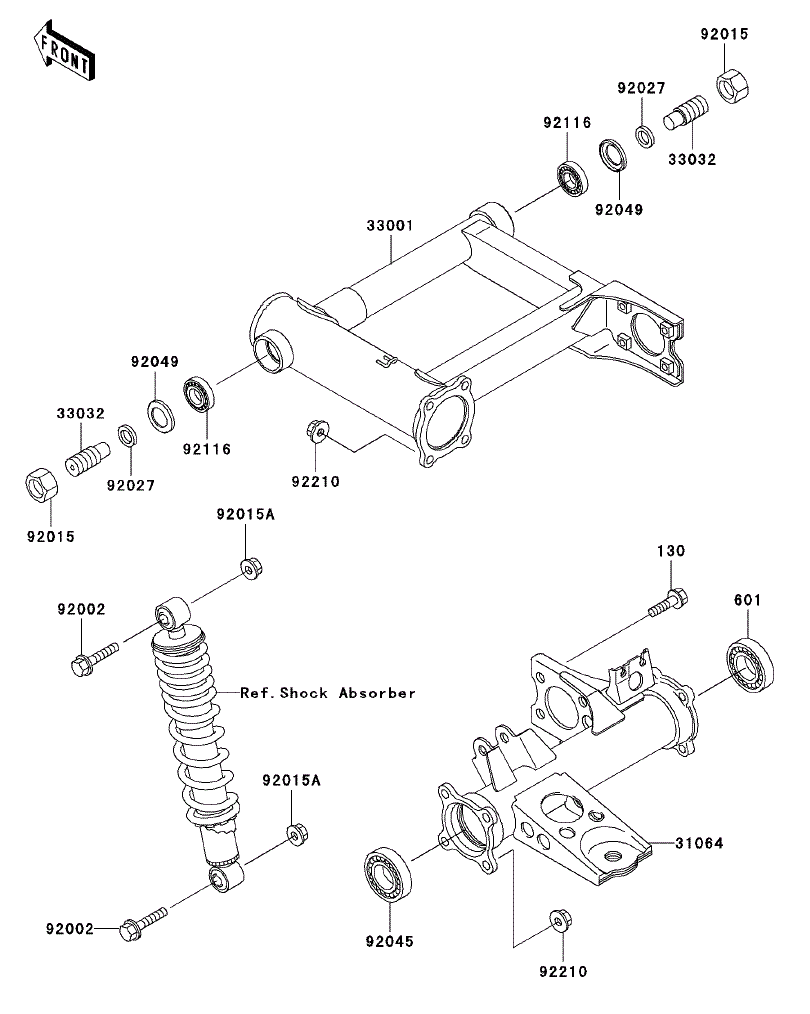

SUSPENSION - SWINGARM для Kawasaki Prairie 300 4x4 (KVF300-A4) - 2002 года выпуска
-
№АртикулНазвание
-
130130J1025 BOLT-FLANGED, 10X25BOLT-FLANGED, 10X25
-
601601A6008UU BEARING-BALL, #6008UUBEARING-BALL, #6008UU
-
3106431064-1212 PIPE-COMPPIPE-COMP
-
3300133001-1552 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-1034 SHAFT-SWING ARMSHAFT-SWING ARM
-
9200292002-1840 BOLT, FLANGED, 12X55BOLT, FLANGED, 12X55
-
9201592015-1229 NUT, 22MMNUT, 22MM
-
92015A92015-1617 NUT, FLANGED, LOCK, 12MMNUT, FLANGED, LOCK, 12MM
-
9202792027-1394 COLLAR, 17X26X4.5COLLAR, 17X26X4.5
-
9204592045-1177 BEARING-BALLBEARING-BALL
-
9204992049-1030 SEAL-OIL, 26406SEAL-OIL, 26406
-
9211692116-1001 BEARING-ROLLER, 4T30203E1BEARING-ROLLER, 4T30203E1
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
