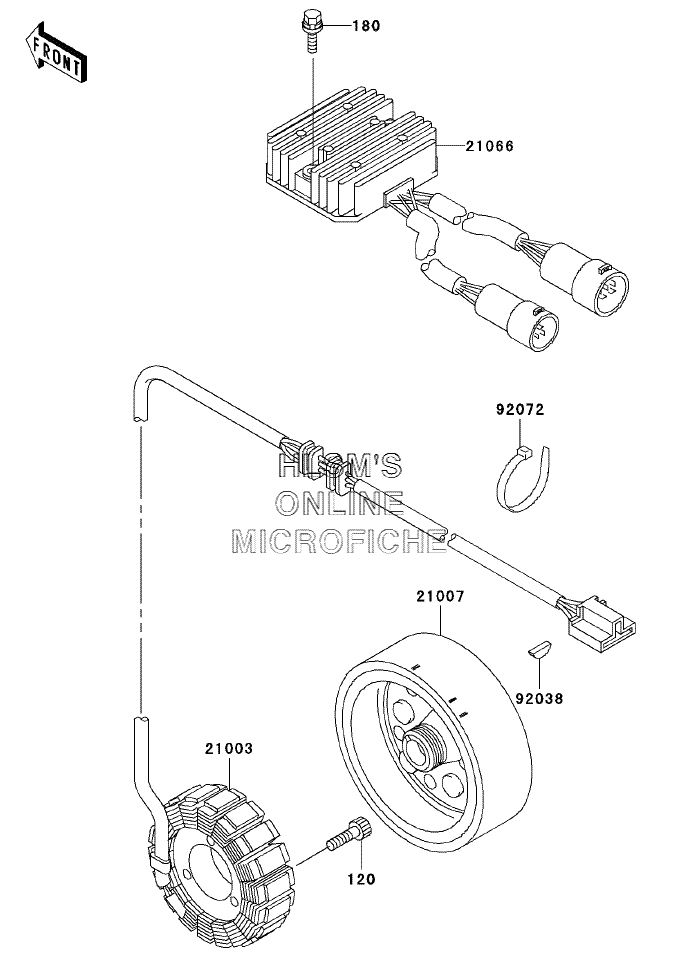

GENERATOR для Kawasaki Prairie 300 4x4 (KVF300-A4) - 2002 года выпуска
-
№АртикулНазвание
-
120120P0630 BOLT-SOCKET, 6X30BOLT-SOCKET, 6X30
-
180180B0630 BOLT-UPSET-WS, 6X30BOLT-UPSET-WS, 6X30
-
2100321003-1343 STATORSTATOR
-
2100721007-1361 ROTORROTOR
-
2106621066-1112 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
9207292072-030 BAND, L=123BAND, L=123
