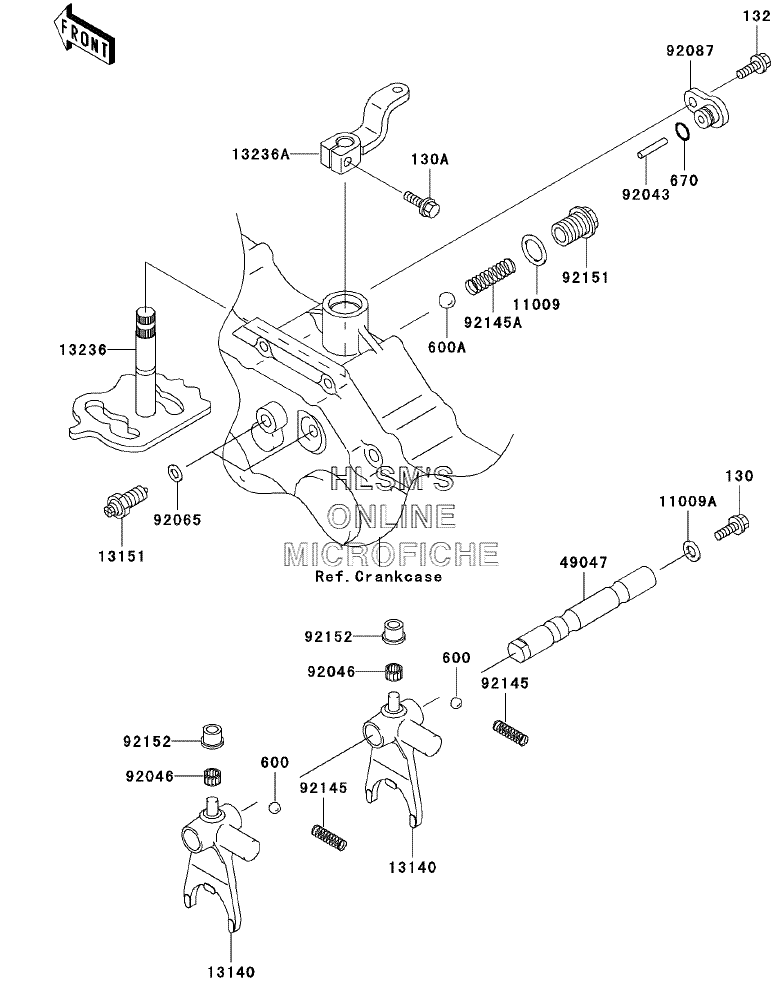

GEAR CHANGE MECHANISM для Kawasaki Prairie 300 4x4 (KVF300-A4) - 2002 года выпуска
-
№АртикулНазвание
-
130130G0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130A130P0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
132132J0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
600600A1100 BALL-STEEL, 11/32"BALL-STEEL, 11/32"
-
600A600A1300 BALL-STEEL, 13/32"BALL-STEEL, 13/32"
-
670670D1510 O RING, 10MMO RING, 10MM
-
1100911009-1008 GASKET, 15.5X22X1GASKET, 15.5X22X1
-
11009A11009-1568 GASKET, 6.5X12X1.0GASKET, 6.5X12X1.0
-
1314013140-1277 FORK-SHIFTFORK-SHIFT
-
1315113151-1069 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1323613236-1325 LEVER-COMPLEVER-COMP
-
13236A13236-1327 LEVER-COMP, FORWARD/REVERSELEVER-COMP, FORWARD/REVERSE
-
4904749047-1099 ROD-SHIFTROD-SHIFT
-
9204392043-1579 PIN, 4X34.8PIN, 4X34.8
-
9204692046-1262 BEARING-NEEDLEBEARING-NEEDLE
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9208792087-1058 BUSHING-METER GEARBUSHING-METER GEAR
-
9214592145-1178 SPRING, L=27.9SPRING, L=27.9
-
92145A92145-1216 SPRINGSPRING
-
9215192151-1451 BOLTBOLT
-
9215292152-1091 COLLARCOLLAR
