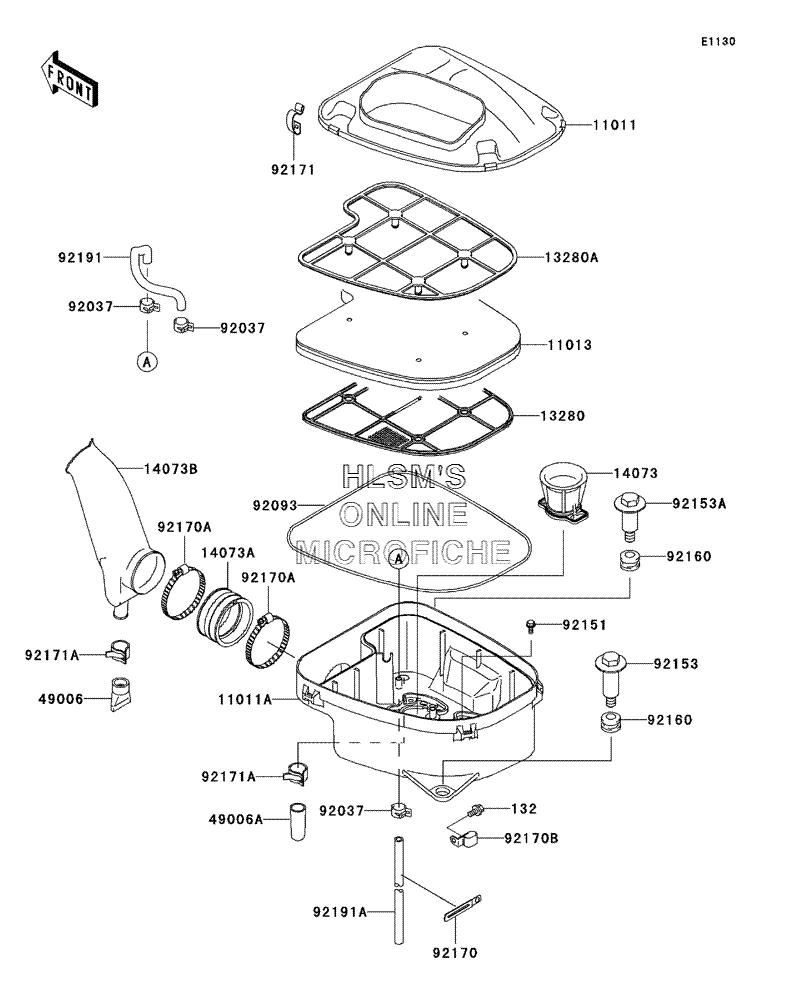

AIR CLEANER для Kawasaki Prairie 650 4x4 (KVF650-B1) - 2002 года выпуска
-
№АртикулНазвание
-
132132Y0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1101111011-1641 CASE-AIR FILTER (UPPER)CASE-AIR FILTER (UPPER)
-
11011A11011-1643 CASE-AIR FILTER (LOWER)CASE-AIR FILTER (LOWER)
-
1101311013-1287 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1328013280-1170 HOLDER, ELEMENT (LOWER)HOLDER, ELEMENT (LOWER)
-
13280A13280-1171 HOLDER, ELEMENT (UPPER)HOLDER, ELEMENT (UPPER)
-
1407314073-1736 DUCT, FRONTDUCT, FRONT
-
14073A14073-1775 DUCT, AIR FILTER JOINTDUCT, AIR FILTER JOINT
-
14073B14073-1778 DUCT, INTAKEDUCT, INTAKE
-
4900649006-1292 BOOTBOOT
-
49006A49006-1351 BOOTBOOT
-
9203792037-1505 CLAMP, TUBECLAMP, TUBE
-
9209392093-1522 SEAL, AIR FILTER CASESEAL, AIR FILTER CASE
-
9215192151-1305 BOLT, 5X12BOLT, 5X12
-
9215392153-1051 BOLT, AIR FILTER (LEFT)BOLT, AIR FILTER (LEFT)
-
92153A92153-1052 BOLT, AIR FILTER (RIGHT)BOLT, AIR FILTER (RIGHT)
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1514 CLAMPCLAMP
-
92170A92170-1764 CLAMPCLAMP
-
92170B92170-1833 CLAMPCLAMP
-
9217192171-1394 CLAMP, AIR FILTER CASECLAMP, AIR FILTER CASE
-
92171A92171-1571 CLAMPCLAMP
-
9219192191-1494 TUBE, 7X11X210TUBE, 7X11X210
-
92191A92191-1531 TUBE, 7X11X470TUBE, 7X11X470
