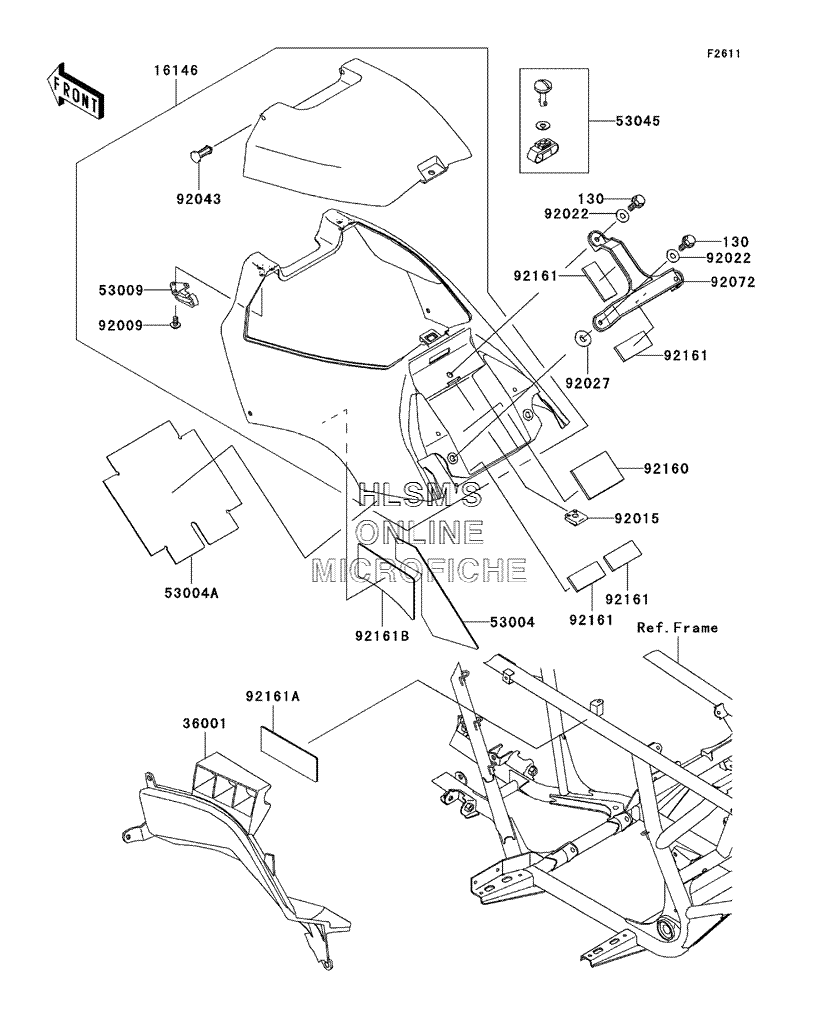

SIDE COVERS для Kawasaki Prairie 650 4x4 (KVF650-B1) - 2002 года выпуска
-
№АртикулНазвание
-
130130J0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
1614616146-1236-370 COVER, FUEL TANK, CAMOUFLAGECOVER, FUEL TANK, CAMOUFLAGE
-
3600136001-1647 COVER-SIDECOVER-SIDE
-
5300453004-1148 MAT, FUEL TANK COVERMAT, FUEL TANK COVER
-
53004A53004-1172 MAT, BATTERY CASEMAT, BATTERY CASE
-
5300953009-1110 HINGE, FUEL TANK COVER, FRONTHINGE, FUEL TANK COVER, FRONT
-
5304553045-1070 HOOK-ASSY, FUEL TANK COVER, REARHOOK-ASSY, FUEL TANK COVER, REAR
-
9200992009-1332 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9201592015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9202792027-1964 COLLAR, L=4.7COLLAR, L=4.7
-
9204392043-1623 PIN, HINGEPIN, HINGE
-
9207292072-1406 BAND, BATTERYBAND, BATTERY
-
9216092160-1897 DAMPER, BATTERYDAMPER, BATTERY
-
9216192161-1127 DAMPER, BATTERYDAMPER, BATTERY
-
92161A92161-1201 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
92161B92161-1202 DAMPER, FUEL TANK COVERDAMPER, FUEL TANK COVER
