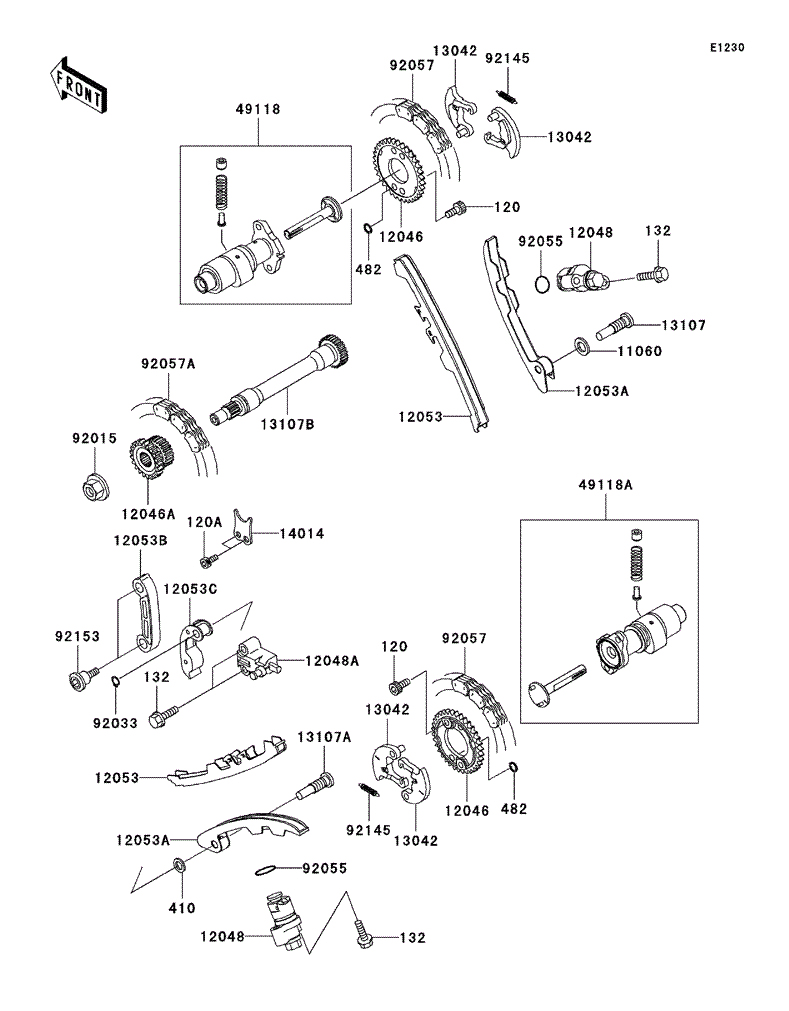

CAMSHAFT(S)/TENSIONER для Kawasaki Prairie 650 4x4 (KVF650-B1) - 2002 года выпуска
-
№АртикулНазвание
-
120120P0610 BOLT-SOCKET, 6X10BOLT-SOCKET, 6X10
-
120A120S0614 BOLT-SOCKET, 6X14 (BLACK)BOLT-SOCKET, 6X14 (BLACK)
-
132132Y0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
410410B0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
482482J5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
1106011060-1966 GASKETGASKET
-
1204612046-1203 SPROCKET, CAMSHAFT (34 TEETH)SPROCKET, CAMSHAFT (34 TEETH)
-
12046A12046-1207 SPROCKET, 2ND SHAFT (21/17 TEETH)SPROCKET, 2ND SHAFT (21/17 TEETH)
-
1204812048-1176 TENSIONER-ASSY, CAMTENSIONER-ASSY, CAM
-
12048A12048-1177 TENSIONER-ASSY, SECONDARYTENSIONER-ASSY, SECONDARY
-
1205312053-1441 GUIDE-CHAIN, CAMSHAFT, TENSIONGUIDE-CHAIN, CAMSHAFT, TENSION
-
12053A12053-1442 GUIDE-CHAIN, CAMSHAFT, SLACKGUIDE-CHAIN, CAMSHAFT, SLACK
-
12053B12053-1443 GUIDE-CHAIN, TENSIONGUIDE-CHAIN, TENSION
-
12053C12053-1444 GUIDE-CHAIN, SLACKGUIDE-CHAIN, SLACK
-
1304213042-1141 WEIGHT, DECOMPWEIGHT, DECOMP
-
1310713107-1443 SHAFT, CHAIN GUIDE, FRONTSHAFT, CHAIN GUIDE, FRONT
-
13107A13107-1444 SHAFT, CHAIN GUIDE, REARSHAFT, CHAIN GUIDE, REAR
-
13107B13107-1445 SHAFT, SECONDARYSHAFT, SECONDARY
-
1401414014-1148 PLATE-POSITION, DRIVEPLATE-POSITION, DRIVE
-
4911849118-1193 CAMSHAFT-COMP, FRONTCAMSHAFT-COMP, FRONT
-
49118A49118-1194 CAMSHAFT-COMP, REARCAMSHAFT-COMP, REAR
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9203392033-1039 RING-SNAP, 8MMRING-SNAP, 8MM
-
9205592055-086 RING-ORING-O
-
9205792057-1487 CHAIN, CAM SHAFTCHAIN, CAM SHAFT
-
92057A92057-1488 CHAIN, SECONDARY SHAFTCHAIN, SECONDARY SHAFT
-
9214592145-1303 SPRING, DECOMPSPRING, DECOMP
-
9215392153-1200 BOLTBOLT
