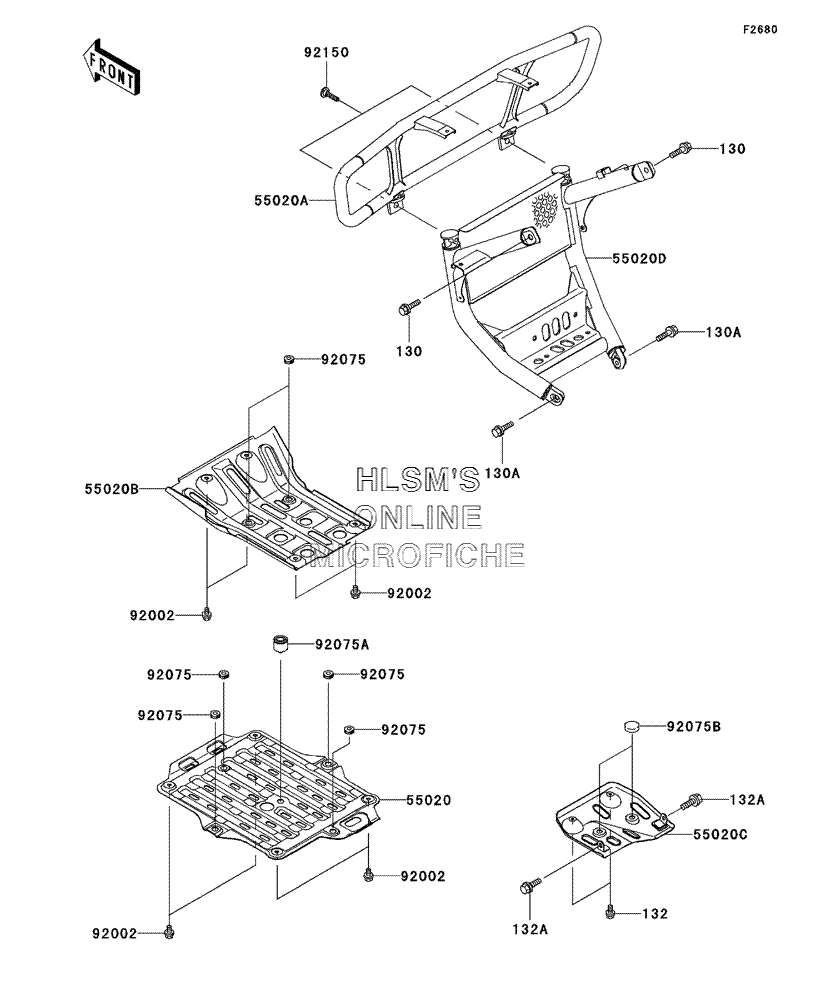

GUARD(S) для Kawasaki Prairie 650 4x4 (KVF650-B1) - 2002 года выпуска
-
№АртикулНазвание
-
130130T0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130A130Z0820 BOLT-FLANGEDBOLT-FLANGED
-
132132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132J0816 BOLT-FLANGED-SMALL, 8X16BOLT-FLANGED-SMALL, 8X16
-
5502055020-1712 GUARD, ENGINE, UNDERGUARD, ENGINE, UNDER
-
55020A55020-1741-UF GUARD, FRONT (UPPER) (S.GOLD)GUARD, FRONT (UPPER) (S.GOLD)
-
55020B55020-1748-UF GUARD, FRONT SKID (S.GOLD)GUARD, FRONT SKID (S.GOLD)
-
55020C55020-1756 GUARD, SWING ARMGUARD, SWING ARM
-
55020D55020-1760-UF GUARD, FRONT (LOWER) (S.GOLD)GUARD, FRONT (LOWER) (S.GOLD)
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
9207592075-051 DAMPERDAMPER
-
92075A92075-1002 DAMPER, STAND, CNTDAMPER, STAND, CNT
-
92075B92075-157 DAMPER, SIDE STANDDAMPER, SIDE STAND
-
9215092150-1728 BOLT, DISC PLATE, 8X30BOLT, DISC PLATE, 8X30
