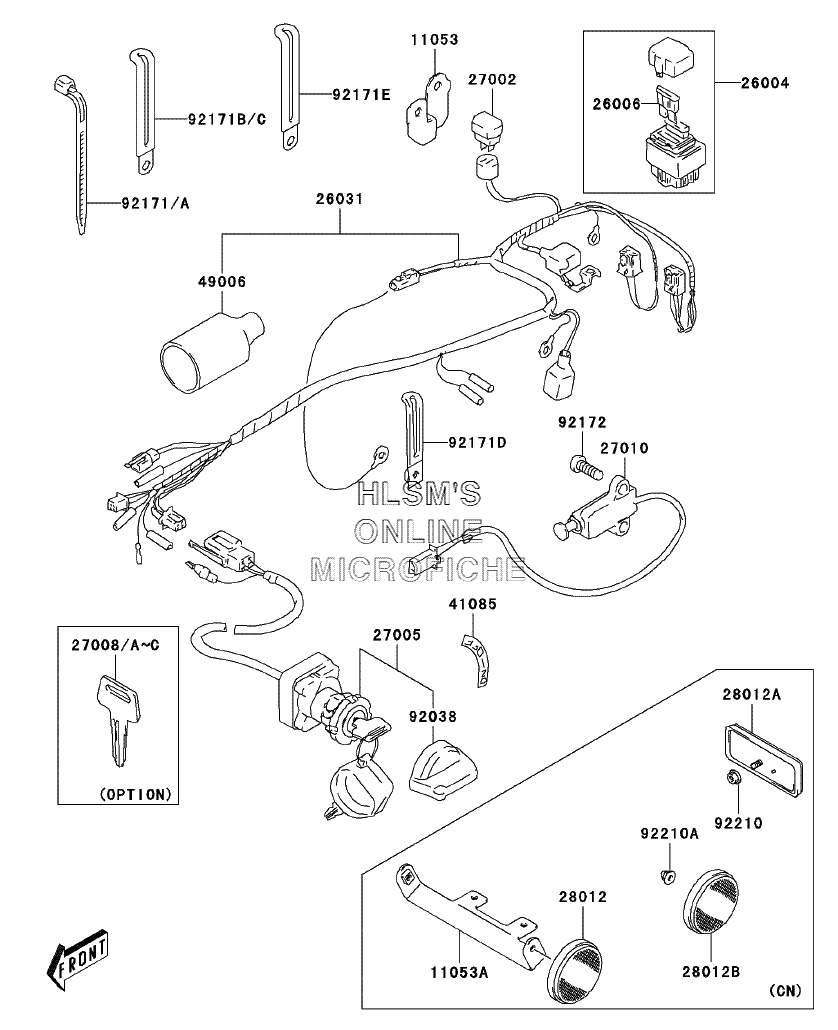

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki KFX80 (KSF80-A1) - 2003 года выпуска

№

Артикул

Название
11053

11053-S005 BRACKET

BRACKET

1 910 ₽
11053A

11053-S009 BRACKET (CANADA ONLY)

BRACKET (CANADA ONLY)

3 780 ₽
26004

26004-S001 FUSE-ASSY

FUSE-ASSY

3 300 ₽
26006

26006-S005 FUSE, 5A

FUSE, 5A

310 ₽
26031

26031-S001 HARNESS

HARNESS

22 290 ₽
27002

27002-S004 RELAY-ASSY

RELAY-ASSY

5 160 ₽
27005

27005-S004 SWITCH-ASSY-IGNITION

SWITCH-ASSY-IGNITION

20 700 ₽
27008

27008-S002 KEY-LOCK, BLANK, (TYPE:C) (OPT)

KEY-LOCK, BLANK, (TYPE:C) (OPT)

1 390 ₽
27008A

27008-S003 KEY-LOCK, BLANK, (TYPE:D) (OPT)

KEY-LOCK, BLANK, (TYPE:D) (OPT)

1 390 ₽
27010

27010-S017 SWITCH, PARKING BRAKE

SWITCH, PARKING BRAKE

12 360 ₽
28012

28012-S001 REFLECTOR-REFLEX, FRONT (CANADA ONLY)

REFLECTOR-REFLEX, FRONT (CANADA ONLY)

2 620 ₽
28012A

28012-S003 REFLECTOR-REFLEX, REAR (CANADA ONLY)

REFLECTOR-REFLEX, REAR (CANADA ONLY)

3 130 ₽
28012B

28012-S004 REFLECTOR-REFLEX, REAR SIDE (CANADA ONLY)

REFLECTOR-REFLEX, REAR SIDE (CANADA ONLY)

4 250 ₽
41085

41085-S003 INDICATOR

INDICATOR

580 ₽
49006

49006-S018 BOOT

BOOT

1 270 ₽
92038

92038-S005 COVER, KEY

COVER, KEY

1 840 ₽
92171

92171-S014 CLAMP, L=125

CLAMP, L=125

470 ₽
92171A

92171-S016 CLAMP, L=165

CLAMP, L=165

370 ₽
92171B

92171-S047 CLAMP, L=95

CLAMP, L=95

430 ₽
92171D

92171-S080 CLAMP

CLAMP

680 ₽
92171E

92171-S081 CLAMP, WIRING HARNESS

CLAMP, WIRING HARNESS

600 ₽
92172

92172-S150 SCREW, PARKING BRAKE SWITCH

SCREW, PARKING BRAKE SWITCH

280 ₽
92210

92210-S067 NUT (CANADA ONLY)

NUT (CANADA ONLY)

280 ₽
92210A

92210-S097 NUT (CANADA ONLY)

NUT (CANADA ONLY)

280 ₽
