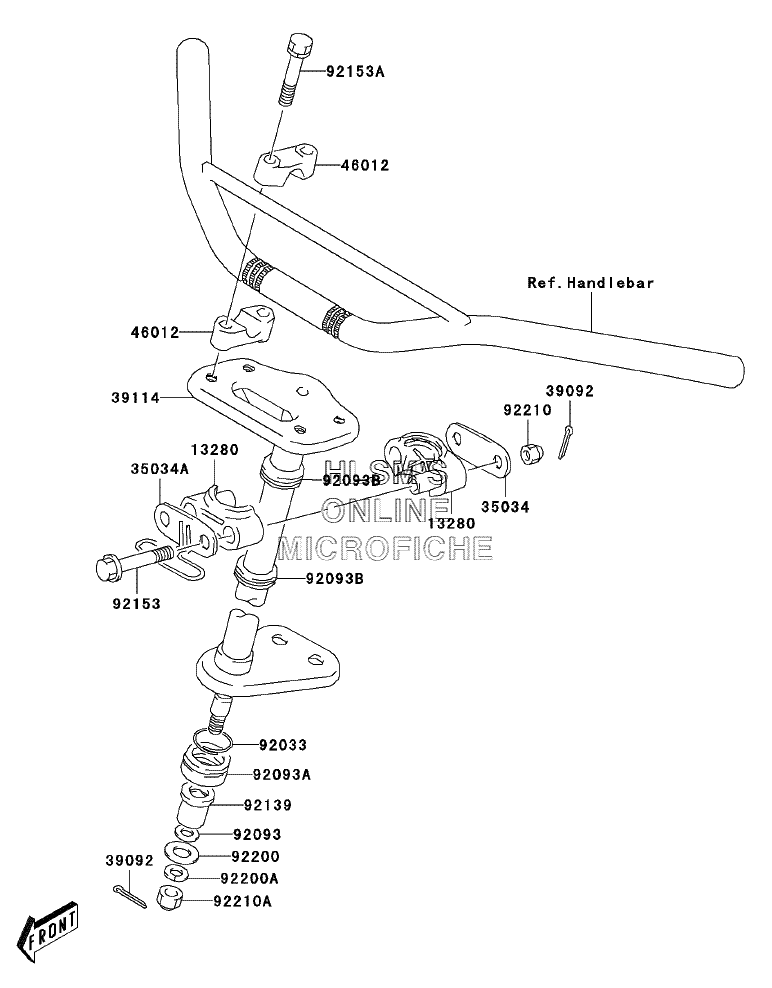

STEERING SHAFT для Kawasaki KFX80 (KSF80-A1) - 2003 года выпуска
-
№АртикулНазвание
-
1328013280-S016 HOLDER, STEERING SHAFTHOLDER, STEERING SHAFT
-
3503435034-S002 REINFORCE, STEERING HOLDERREINFORCE, STEERING HOLDER
-
35034A35034-S004 REINFORCE, STEERING HOLDERREINFORCE, STEERING HOLDER
-
3909239092-S005 PIN-HAIR, COTTERPIN-HAIR, COTTER
-
3911439114-S002-503 SHAFT-COMP-STEERING (BLACK)SHAFT-COMP-STEERING (BLACK)
-
4601246012-S003-504 HOLDER-HANDLE (BLACK)HOLDER-HANDLE (BLACK)
-
9203392033-S029 RING-SNAP, STEERING SHAFTRING-SNAP, STEERING SHAFT
-
9209392093-S008 SEAL, REAR BRAKE CAMSEAL, REAR BRAKE CAM
-
92093A92093-S016 SEAL, STEERING SHAFT DUSTSEAL, STEERING SHAFT DUST
-
92093B92093-S020 SEAL, STEERING SHAFTSEAL, STEERING SHAFT
-
9213992139-S011 BUSHING, STEERING SHAFTBUSHING, STEERING SHAFT
-
9215392153-S200 BOLT, STEERING SHAFT HOLDERBOLT, STEERING SHAFT HOLDER
-
92153A92153-S229 BOLT, HANDLE CLAMPBOLT, HANDLE CLAMP
-
9220092200-S095 WASHER, STEERING SHAFT (LOWER)WASHER, STEERING SHAFT (LOWER)
-
92200A92200-S096 WASHER, STEERING SHAFT (LOWER)WASHER, STEERING SHAFT (LOWER)
-
9221092210-S026 NUTNUT
-
92210A92210-S071 NUT, STEERING SHAFTNUT, STEERING SHAFT
