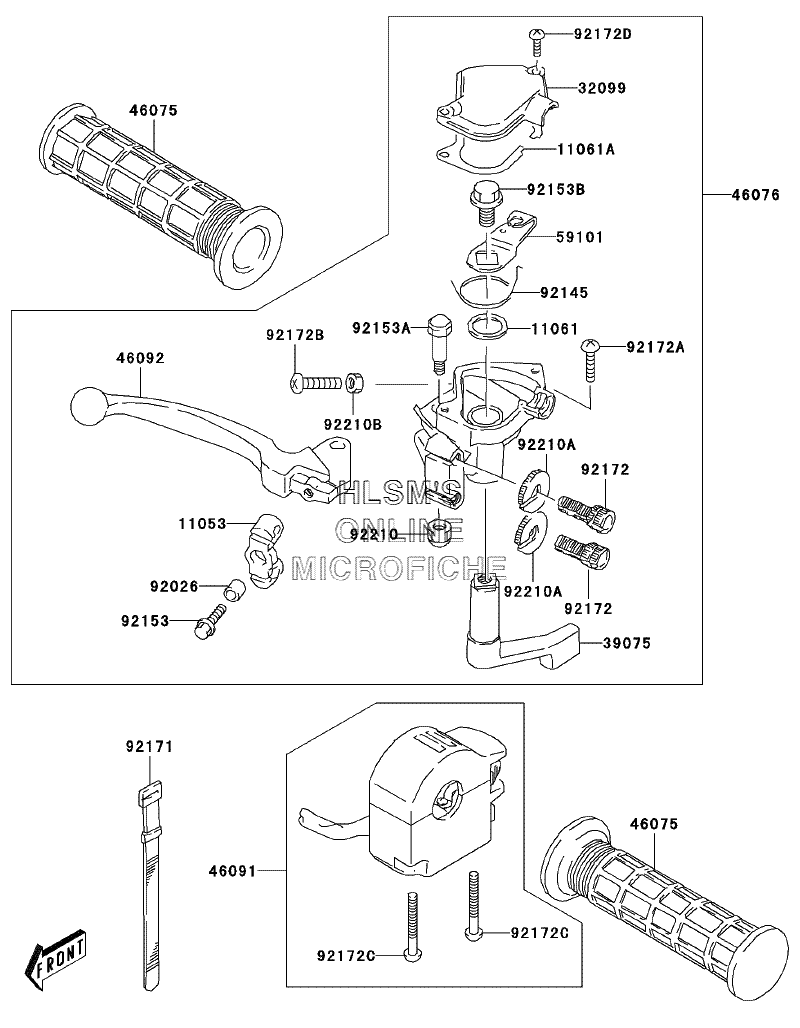

HANDLE LEVER для Kawasaki KFX80 (KSF80-A1) - 2003 года выпуска
-
№АртикулНазвание
-
1105311053-S004 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
1106111061-S065 GASKET, 14X20X1.5GASKET, 14X20X1.5
-
11061A11061-S066 GASKET, THROTTLE CASEGASKET, THROTTLE CASE
-
3209932099-S009 CASE, THROTTLECASE, THROTTLE
-
3907539075-S002 LEVER-THROTTLELEVER-THROTTLE
-
4607546075-S005-504 GRIP, HANDLE (BLACK)GRIP, HANDLE (BLACK)
-
4607646076-S011 LEVER-ASSY-GRIP, FRONT BRAKELEVER-ASSY-GRIP, FRONT BRAKE
-
4609146091-S004 HOUSING-ASSY-CONTROLHOUSING-ASSY-CONTROL
-
4609246092-S009 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
5910159101-S005 REEL, THROTTLE CABLEREEL, THROTTLE CABLE
-
9202692026-S072 SPACERSPACER
-
9214592145-S081 SPRING, THROTTLE LEVERSPRING, THROTTLE LEVER
-
9215392153-S012 BOLTBOLT
-
92153A92153-S198 BOLTBOLT
-
92153B92153-S226 BOLTBOLT
-
9217192171-S035 CLAMP, L=120CLAMP, L=120
-
9217292172-S134 SCREWSCREW
-
92172A92172-S150 SCREW, PARKING BRAKE SWITCHSCREW, PARKING BRAKE SWITCH
-
92172B92172-S155 SCREWSCREW
-
92172C92172-S156 SCREWSCREW
-
92172D92172-S157 SCREWSCREW
-
9221092210-S024 NUTNUT
-
92210A92210-S070 NUT, CABLE ADJUSTER LOCKNUT, CABLE ADJUSTER LOCK
-
92210B92210-S087 NUTNUT
