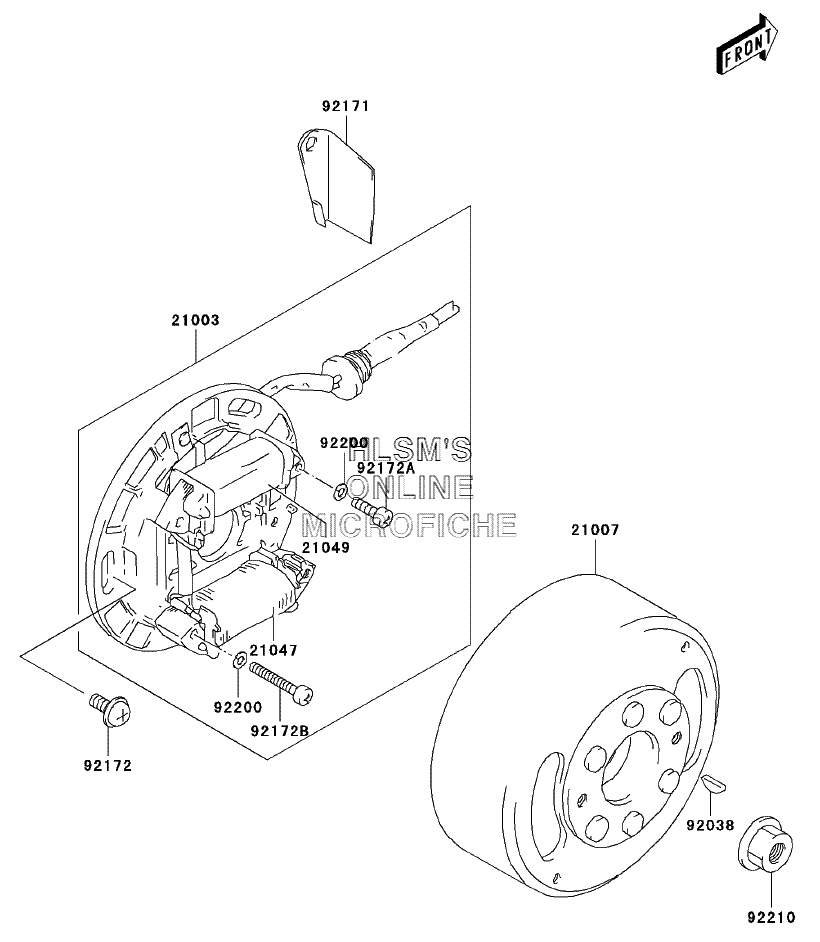

GENERATOR для Kawasaki KFX80 (KSF80-A1) - 2003 года выпуска
-
№АртикулНазвание
-
2100321003-S005 STATORSTATOR
-
2100721007-S006 ROTORROTOR
-
2104721047-S001 COIL-LIGHTINGCOIL-LIGHTING
-
2104921049-S001 COIL-EXCITINGCOIL-EXCITING
-
9203892038-S001 KEY, MAGNETO ROTORKEY, MAGNETO ROTOR
-
9217192171-S079 CLAMP, MAGNETO LEADCLAMP, MAGNETO LEAD
-
9217292172-S016 SCREWSCREW
-
92172A92172-S148 SCREWSCREW
-
92172B92172-S149 SCREWSCREW
-
9220092200-S116 WASHER, LOCKWASHER, LOCK
-
9221092210-S005 NUTNUT
