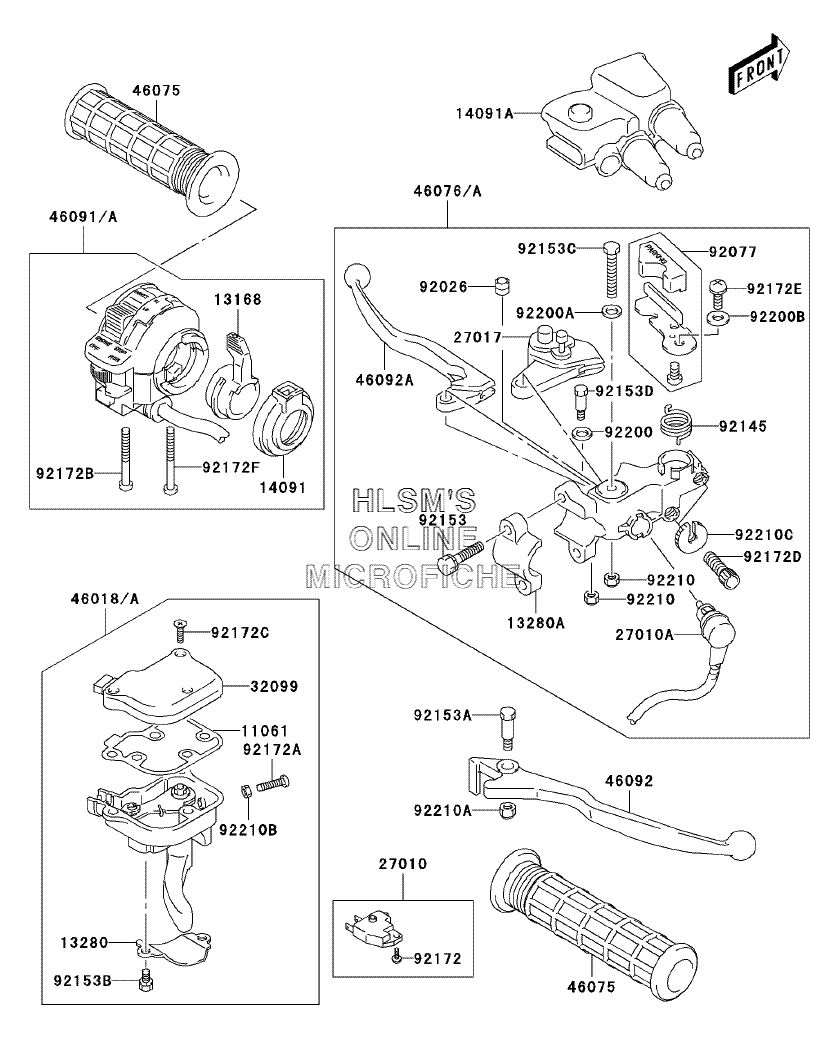

HANDLE LEVER для Kawasaki KFX400 (KSF400-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S094 GASKETGASKET
-
1316813168-S005 LEVER, CHOKELEVER, CHOKE
-
1328013280-S027 HOLDERHOLDER
-
13280A13280-S028 HOLDERHOLDER
-
1409114091-S084 COVER, CHOKECOVER, CHOKE
-
14091A14091-S090 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
-
2701027010-S038 SWITCH, STOPSWITCH, STOP
-
27010A27010-S041 SWITCHSWITCH
-
2701727017-S002 LOCK, PARKINGLOCK, PARKING
-
3209932099-S010 CASECASE
-
4601846018-S003 GRIP-ASSY-THROTTLEGRIP-ASSY-THROTTLE
-
4607546075-S009 GRIPGRIP
-
4607646076-S012 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609146091-S010 HOUSING-ASSY-CONTROLHOUSING-ASSY-CONTROL
-
4609246092-S010 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
46092A46092-S011 LEVER-GRIPLEVER-GRIP
-
9202692026-S099 SPACERSPACER
-
9207792077-S006 KNOB, PARKINGKNOB, PARKING
-
9214592145-S104 SPRING, RETURNSPRING, RETURN
-
9215392153-S002 BOLTBOLT
-
92153A92153-S116 BOLT, BRAKE LEVER PIVOTBOLT, BRAKE LEVER PIVOT
-
92153B92153-S294 BOLTBOLT
-
92153C92153-S295 BOLT, PARKING LOCKBOLT, PARKING LOCK
-
92153D92153-S296 BOLTBOLT
-
9217292172-S053 SCREWSCREW
-
92172A92172-S133 SCREWSCREW
-
92172B92172-S165 SCREWSCREW
-
92172C92172-S176 SCREWSCREW
-
92172D92172-S177 SCREW, ADJUSTERSCREW, ADJUSTER
-
92172E92172-S178 SCREW, PARKING PLATESCREW, PARKING PLATE
-
92172F92172-S182 SCREWSCREW
-
9220092200-S155 WASHER, PIVOTWASHER, PIVOT
-
92200A92200-S157 WASHER, PARKING LOCKWASHER, PARKING LOCK
-
92200B92200-S158 WASHERWASHER
-
9221092210-S024 NUTNUT
-
92210A92210-S044 NUT, LEVER PIVOTNUT, LEVER PIVOT
-
92210B92210-S065 NUTNUT
-
92210C92210-S108 NUT, ADJUSTERNUT, ADJUSTER
