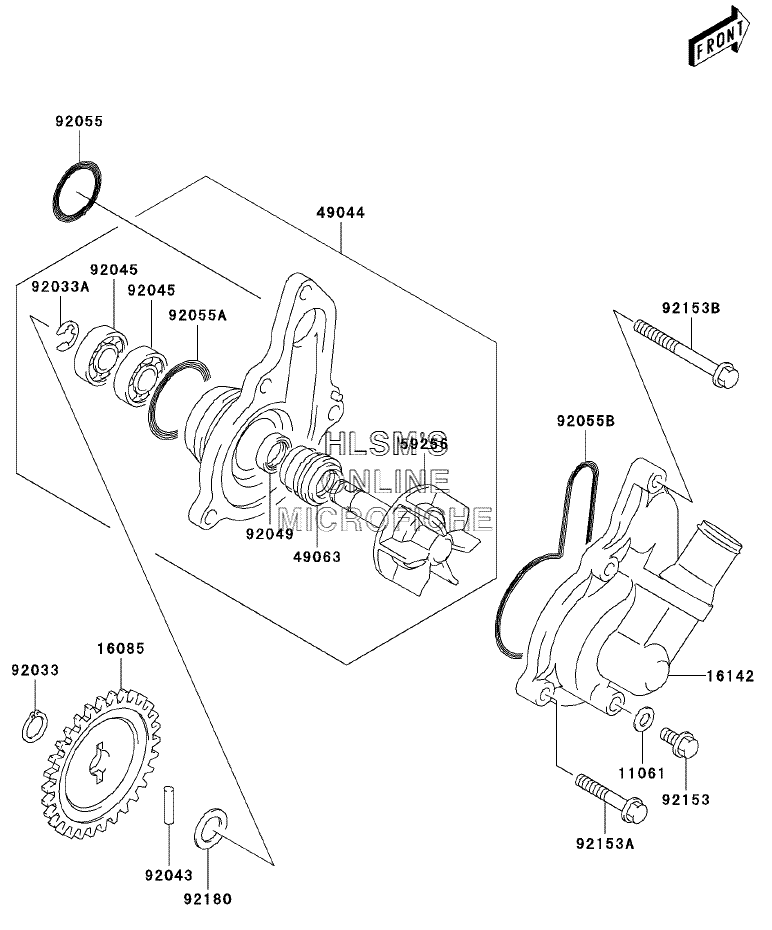

WATER PUMP для Kawasaki KFX400 (KSF400-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S045 GASKETGASKET
-
1608516085-S005 GEAR, WATER PUMPGEAR, WATER PUMP
-
1614216142-S002 COVER-PUMPCOVER-PUMP
-
4904449044-S004 PUMP-WATERPUMP-WATER
-
4906349063-S004 SEAL-MECHANICAL, WATER PUMPSEAL-MECHANICAL, WATER PUMP
-
5925659256-S003 IMPELLERIMPELLER
-
9203392033-S001 RING-SNAPRING-SNAP
-
92033A92033-S006 RING-SNAPRING-SNAP
-
9204392043-S039 PIN, WATER PUMPPIN, WATER PUMP
-
9204592045-S046 BEARING-BALLBEARING-BALL
-
9204992049-S054 SEAL-OILSEAL-OIL
-
9205592055-S007 RING-O, D=2.4RING-O, D=2.4
-
92055A92055-S015 RING-ORING-O
-
92055B92055-S066 RING-O, WATER PUMPRING-O, WATER PUMP
-
9215392153-S143 BOLTBOLT
-
92153A92153-S261 BOLT, 6X30BOLT, 6X30
-
92153B92153-S262 BOLT, CLUTCH COVERBOLT, CLUTCH COVER
-
9218092180-S001 SHIM, 10X18X0.5SHIM, 10X18X0.5
