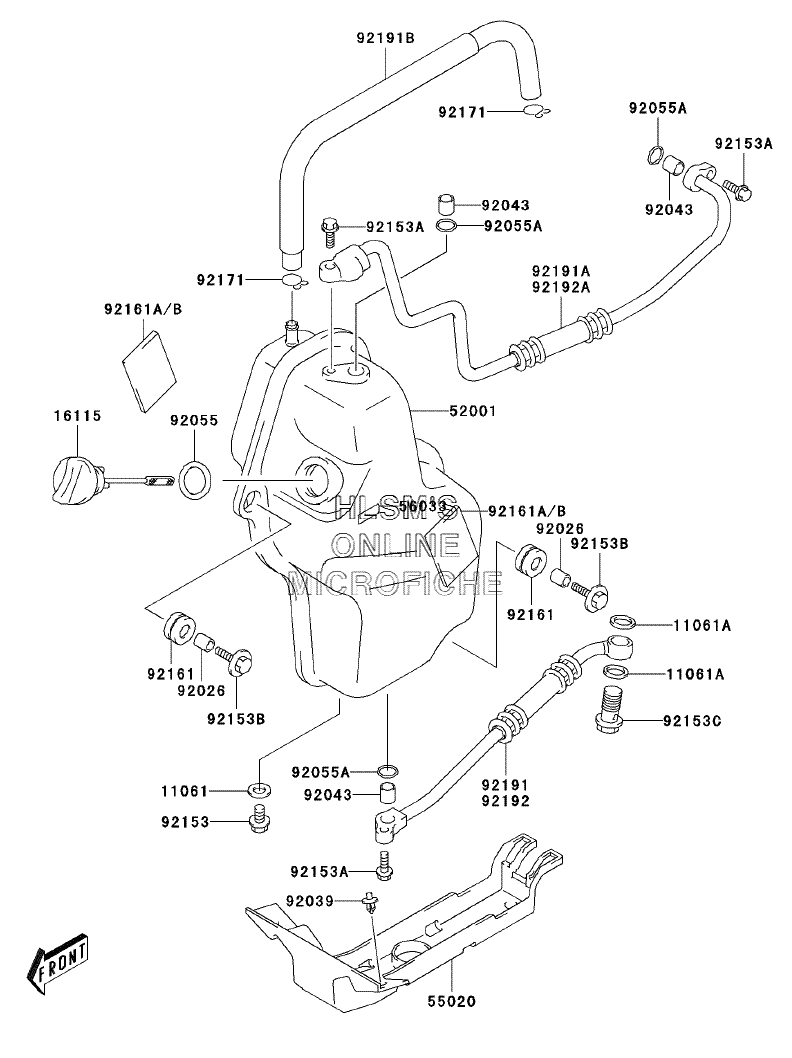

OIL TANK для Kawasaki KFX400 (KSF400-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S020 GASKET, 8.2X14X1GASKET, 8.2X14X1
-
11061A11061-S065 GASKET, 14X20X1.5GASKET, 14X20X1.5
-
1611516115-S003 CAP-OIL FILLERCAP-OIL FILLER
-
5200152001-S006 TANK-OILTANK-OIL
-
5502055020-S014 GUARD, OIL TANKGUARD, OIL TANK
-
5603356033-S010 LABEL-MANUAL, ENGINE OILLABEL-MANUAL, ENGINE OIL
-
9202692026-S081 SPACERSPACER
-
9203992039-S002-506 RIVET, BLACKRIVET, BLACK
-
9204392043-S024 PIN, CRANKCASEPIN, CRANKCASE
-
9205592055-S006 RING-O, D=3.1RING-O, D=3.1
-
92055A92055-S054 RING-O, OIL HOSERING-O, OIL HOSE
-
9215392153-S015 BOLTBOLT
-
92153A92153-S168 BOLTBOLT
-
92153B92153-S288 BOLT, OIL TANKBOLT, OIL TANK
-
92153C92153-S289 BOLT, OIL HOSE, 14X27BOLT, OIL HOSE, 14X27
-
9216192161-S089 DAMPER, OIL TANKDAMPER, OIL TANK
-
92161B92161-S176 DAMPER, 50X30X2DAMPER, 50X30X2
-
9217192171-S085 CLAMPCLAMP
-
9219192191-S061 TUBE, OIL TANKTUBE, OIL TANK
-
92191A92191-S062 TUBE, OIL TANKTUBE, OIL TANK
-
92191B92191-S063 TUBE, OIL TANKTUBE, OIL TANK
