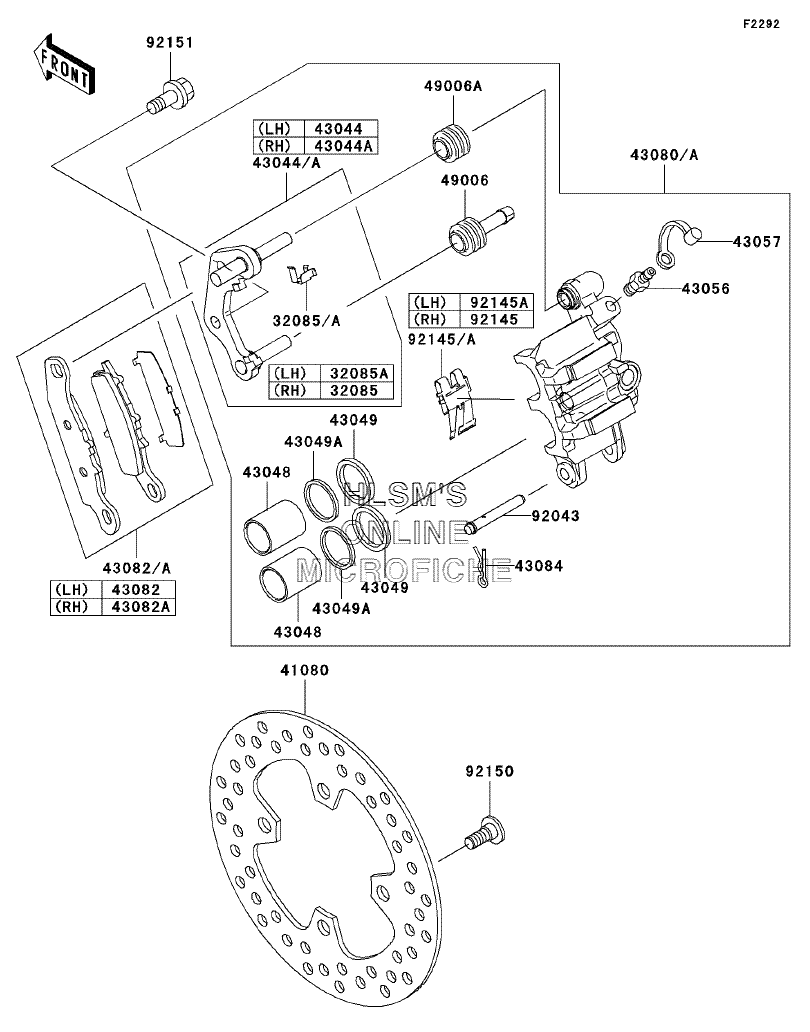

BRAKE - FRONT для Kawasaki Prairie 700 4x4 (Red / Green) (KVF700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
3208532085-1437 STOPPERSTOPPER
-
32085A32085-1517 STOPPERSTOPPER
-
4108041080-1513 DISC, FRDISC, FR
-
4304443044-1130 HOLDER COMP CALIPER, FRONT (LEFT)HOLDER COMP CALIPER, FRONT (LEFT)
-
43044A43044-1131 HOLDER COMP CALIPER, FRONT (RIGHT)HOLDER COMP CALIPER, FRONT (RIGHT)
-
4304843048-1083 PISTON CALIPERPISTON CALIPER
-
4304943049-1059 PACKING, PISTONPACKING, PISTON
-
43049A43049-1090 PACKING, PISTON SEALPACKING, PISTON SEAL
-
4305643056-1054 BREATHER BRAKEBREATHER BRAKE
-
4305743057-003 CAP BREATHERCAP BREATHER
-
4308043080-5081-DJ CALIPER SUB ASSY, FRONT (RIGHT/BLACK)CALIPER SUB ASSY, FRONT (RIGHT/BLACK)
-
43080A43080-5082-DJ CALIPER SUB ASSY, FRONT (LEFT/BLACK)CALIPER SUB ASSY, FRONT (LEFT/BLACK)
-
4308243082-1255 PAD ASSY BRAKEPAD ASSY BRAKE
-
43082A43082-1273 PAD ASSY BRAKEPAD ASSY BRAKE
-
4308443084-003 CLAMP, PADCLAMP, PAD
-
4900649006-1054 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1055 BOOT, CALIPERBOOT, CALIPER
-
9204392043-1356 PIN, PADPIN, PAD
-
9214592145-1260 SPRING, PADSPRING, PAD
-
92145A92145-1354 SPRING, PADSPRING, PAD
-
9215092150-1800 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215192151-1793 BOLT, FLANGED, 8X19BOLT, FLANGED, 8X19
