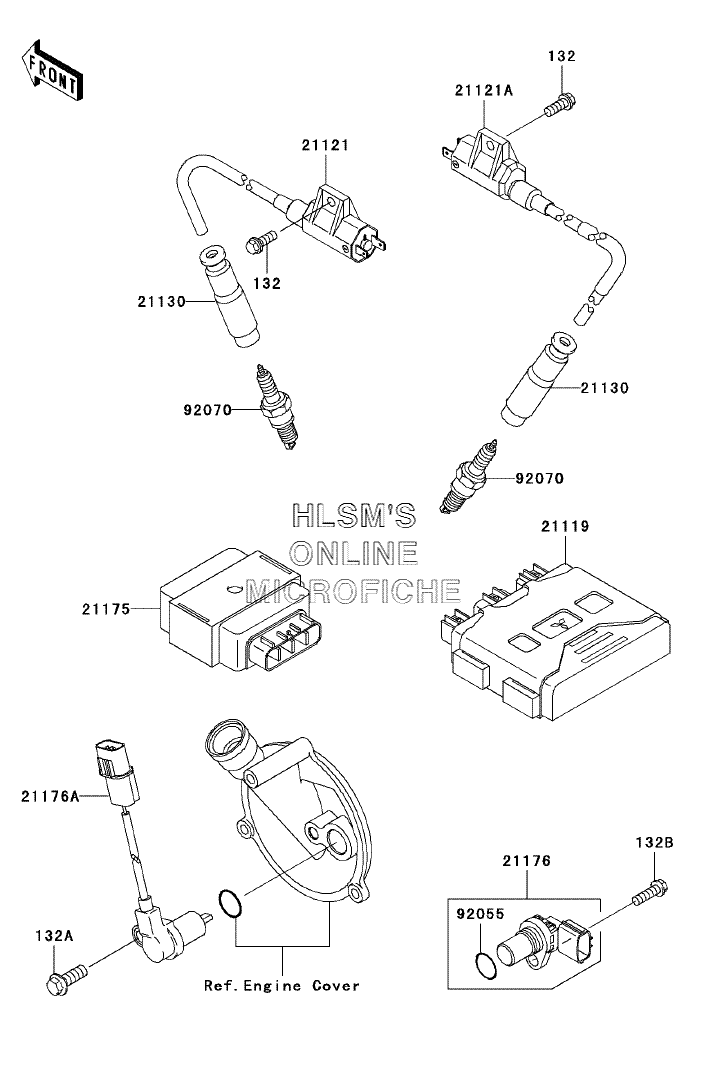

IGNITION SYSTEM для Kawasaki Prairie 700 4x4 (Red / Green) (KVF700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
132132H0616 BOLT FLANGED SMALL, 6X16BOLT FLANGED SMALL, 6X16
-
132A132H0822 BOLT FLANGED SMALL, 8X22BOLT FLANGED SMALL, 8X22
-
132B132Y0620 BOLT FLANGED SMALL, 6X20BOLT FLANGED SMALL, 6X20
-
2111921119-0004 IGNITERIGNITER
-
2112121121-1292 COIL IGNITION, FRCOIL IGNITION, FR
-
21121A21121-1306 COIL IGNITION, RRCOIL IGNITION, RR
-
2113021130-1071 CAP SPARK PLUGCAP SPARK PLUG
-
2117521175-0086 CONTROL UNIT ELECTRONICCONTROL UNIT ELECTRONIC
-
2117621176-1104 SENSOR, SPEEDSENSOR, SPEED
-
21176A21176-1109 SENSOR, REVERSESENSOR, REVERSE
-
9205592055-1718 RING ORING O
-
9207092070-1209 PLUG SPARK, CR7E(NGK)PLUG SPARK, CR7E(NGK)
