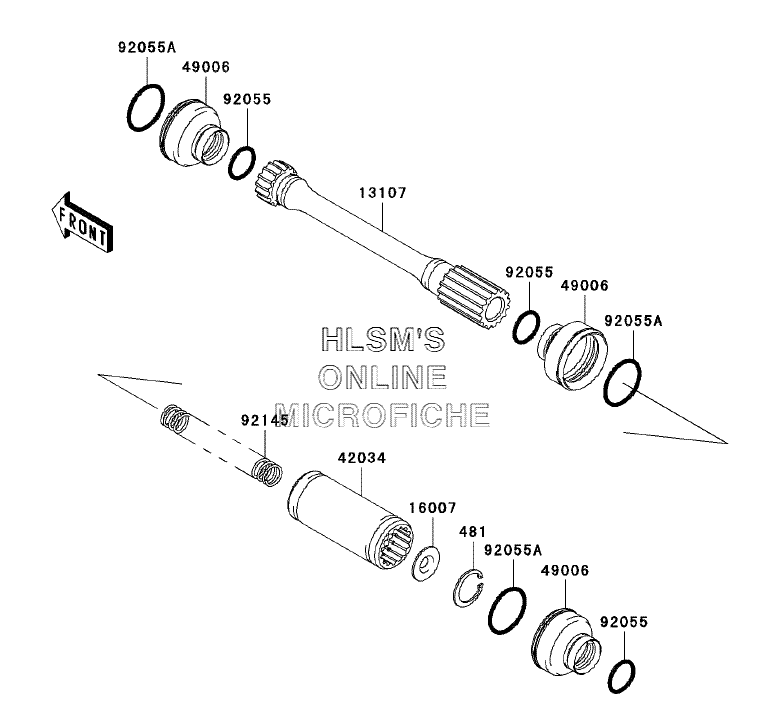

DRIVE SHAFT PROPELLER для Kawasaki Prairie 700 4x4 (Red / Green) (KVF700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
481481J2500 CIRCLIP TYPE C, 25MMCIRCLIP TYPE C, 25MM
-
1310713107-1505 SHAFT, FRONT PROPELLER SHAFTSHAFT, FRONT PROPELLER SHAFT
-
1600716007-1205 SEAT SPRING, PROPELLER SHAFTSEAT SPRING, PROPELLER SHAFT
-
4203442034-1193 COUPLING, PROPELLERCOUPLING, PROPELLER
-
4900649006-1362 BOOTBOOT
-
9205592055-1633 RING O, 18X24X3RING O, 18X24X3
-
92055A92055-1693 RING O, 30X35X2.5RING O, 30X35X2.5
-
9214592145-1304 SPRING, PROPELLER SHAFTSPRING, PROPELLER SHAFT
