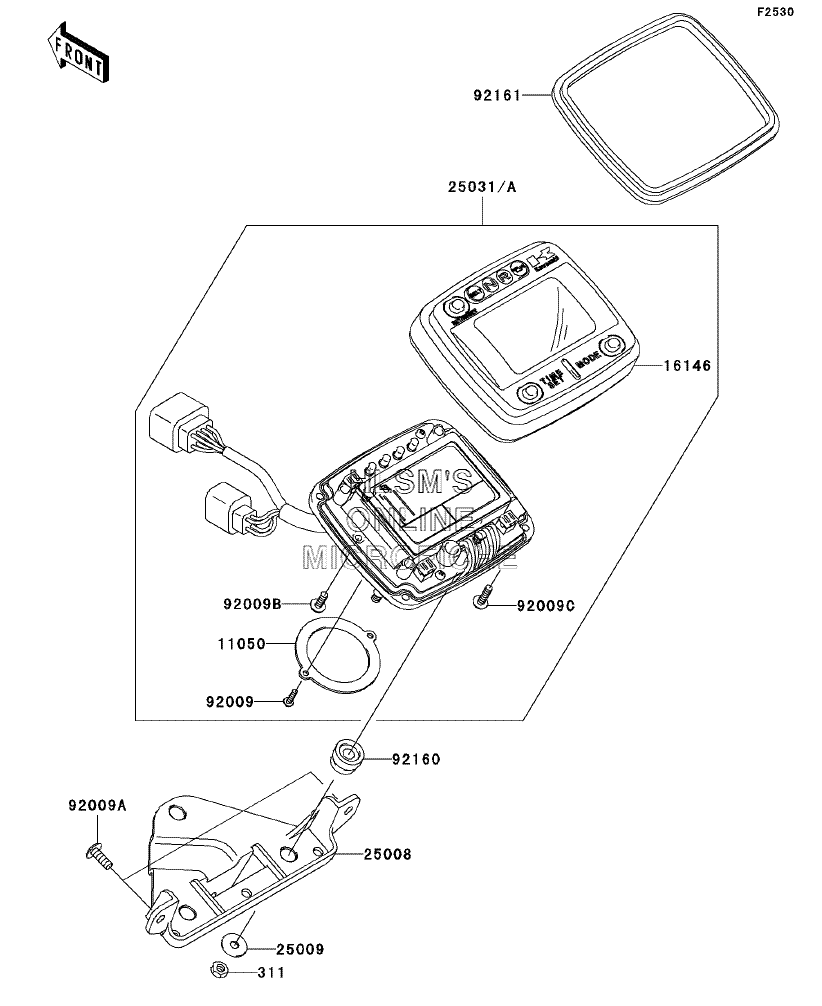

METER(S) для Kawasaki Prairie 700 4x4 (Red / Green) (KVF700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
311311C0500 NUT HEXNUT HEX
-
1105011050-1932 BRACKET, METERBRACKET, METER
-
1614616146-0011 COVER ASSY (UPPER)COVER ASSY (UPPER)
-
2500825008-1226 BRACKET METERBRACKET METER
-
2500925009-004 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
2503125031-0025 METER ASSY, MPH (USA ONLY)METER ASSY, MPH (USA ONLY)
-
25031A25031-0026 METER ASSY, KPH (CANADA ONLY)METER ASSY, KPH (CANADA ONLY)
-
9200992009-1028 SCREW, TAPPING, 3X12SCREW, TAPPING, 3X12
-
92009A92009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
92009B92009-1254 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009C92009-1663 SCREW, 6X18SCREW, 6X18
-
9216092160-1460 DAMPERDAMPER
-
9216192161-1114 DAMPER, METER (UPPER)DAMPER, METER (UPPER)
