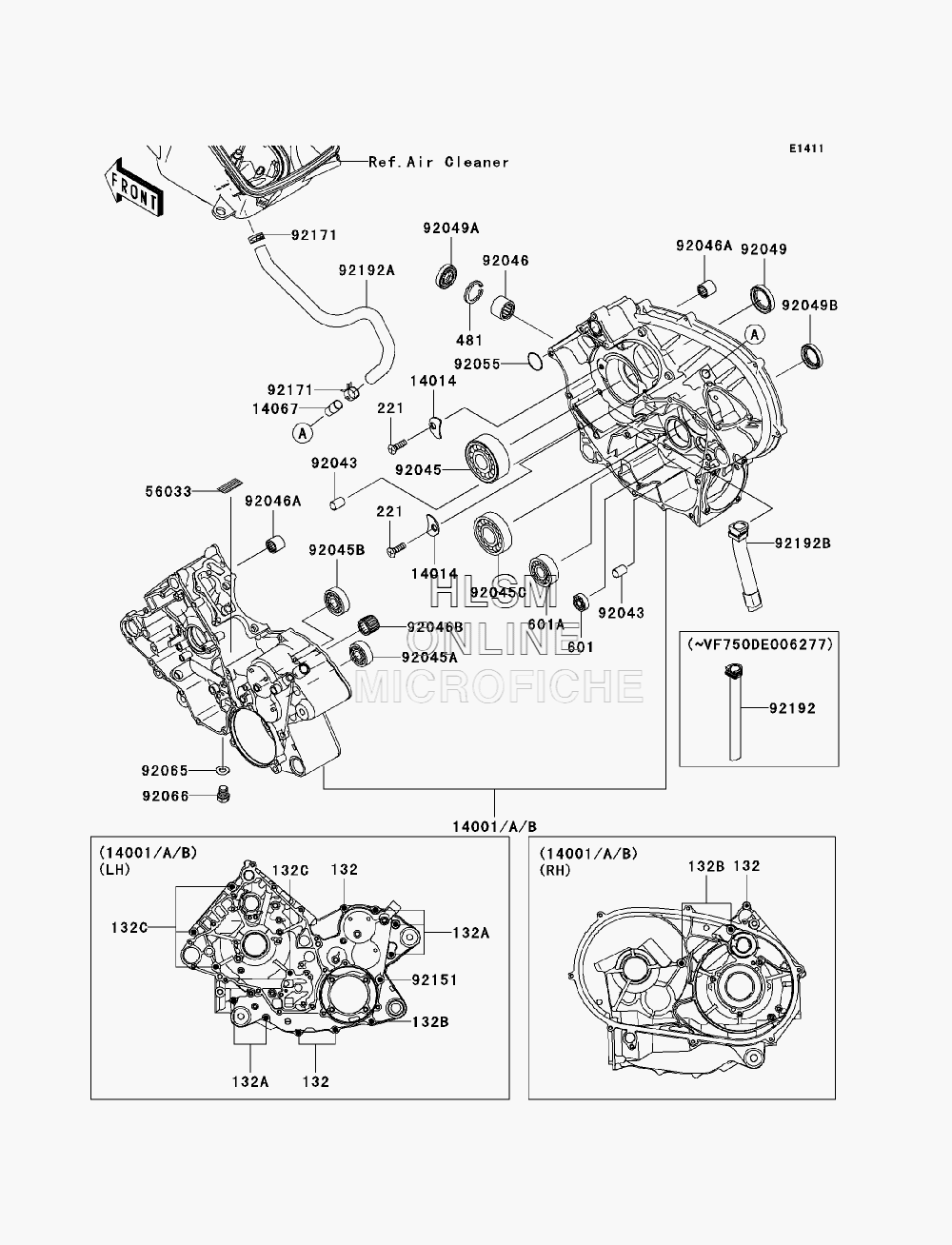

CRANKCASE для Kawasaki BRUTE FORCE 750 4X4I (KVF750F8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132BD0640 BOLT - FLANGED - SMALL, 6X40BOLT - FLANGED - SMALL, 6X40
-
132A132BD0665 BOLT - FLANGED - SMALL, 6X65BOLT - FLANGED - SMALL, 6X65
-
132B132BD08110 BOLT - FLANGED - SMALL, 8X110BOLT - FLANGED - SMALL, 8X110
-
132C132BD0875 BOLT - FLANGED - SMALL, 8X75BOLT - FLANGED - SMALL, 8X75
-
221221AA0616 SCREW - CSK - CROS, 6X16SCREW - CSK - CROS, 6X16
-
481481J3700 CIRCLIP - TYPE - C, 37MMCIRCLIP - TYPE - C, 37MM
-
601601A6000 BEARING - BALLBEARING - BALL
-
601A601A6304 BEARING - BALL, #6304BEARING - BALL, #6304
-
1400114001-0015 SET - CRANKCASE (UP TO VF750DE006277)SET - CRANKCASE (UP TO VF750DE006277)
-
14001A14001-0109 SET - CRANKCASE (VF750DE006278 AND ABOVE)SET - CRANKCASE (VF750DE006278 AND ABOVE)
-
1401414014-0006 PLATE - POSITIONPLATE - POSITION
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
5603356033-0078 LABEL - MANUAL, OIL LEVELLABEL - MANUAL, OIL LEVEL
-
9204392043-1506 PIN, 10X14PIN, 10X14
-
9204592045-0012 BEARING - BALL, 5208X2 - A - ECG45BEARING - BALL, 5208X2 - A - ECG45
-
92045A92045-0076 BEARING - BALL, #6004BEARING - BALL, #6004
-
92045B92045-0091 BEARING - BALL, 6303LUABEARING - BALL, 6303LUA
-
92045C92045-1190 BEARING - BALL, 6306SH2BEARING - BALL, 6306SH2
-
9204692046-0022 BEARING - NEEDLEBEARING - NEEDLE
-
92046A92046-1118 BEARING - NEEDLE, TA202715ZEBEARING - NEEDLE, TA202715ZE
-
92046B92046-1143 BEARING - NEEDLEBEARING - NEEDLE
-
9204992049-1452 SEAL - OIL, TC 35X50X8SEAL - OIL, TC 35X50X8
-
92049A92049-1570 SEAL - OIL, TCY 28X42X8SEAL - OIL, TCY 28X42X8
-
92049B92049-1575 SEAL - OIL, HTC 30X45X8SEAL - OIL, HTC 30X45X8
-
9205592055-1136 O-RING, 25.7X2.4O-RING, 25.7X2.4
-
9206592065-097 GASKET, 12X22X2GASKET, 12X22X2
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
9215192151-1689 BOLT, 8X110BOLT, 8X110
-
9217192171-0329 CLAMPCLAMP
-
9219292192-0057 TUBE, OIL RETURN (UP TO VF750DE006277)TUBE, OIL RETURN (UP TO VF750DE006277)
-
92192A92192-0436 TUBE, CRANKCASE - A/CTUBE, CRANKCASE - A/C
-
92192B92192-0560 TUBE, OIL RETURN (VF750DE006278 AND ABOVE)TUBE, OIL RETURN (VF750DE006278 AND ABOVE)
