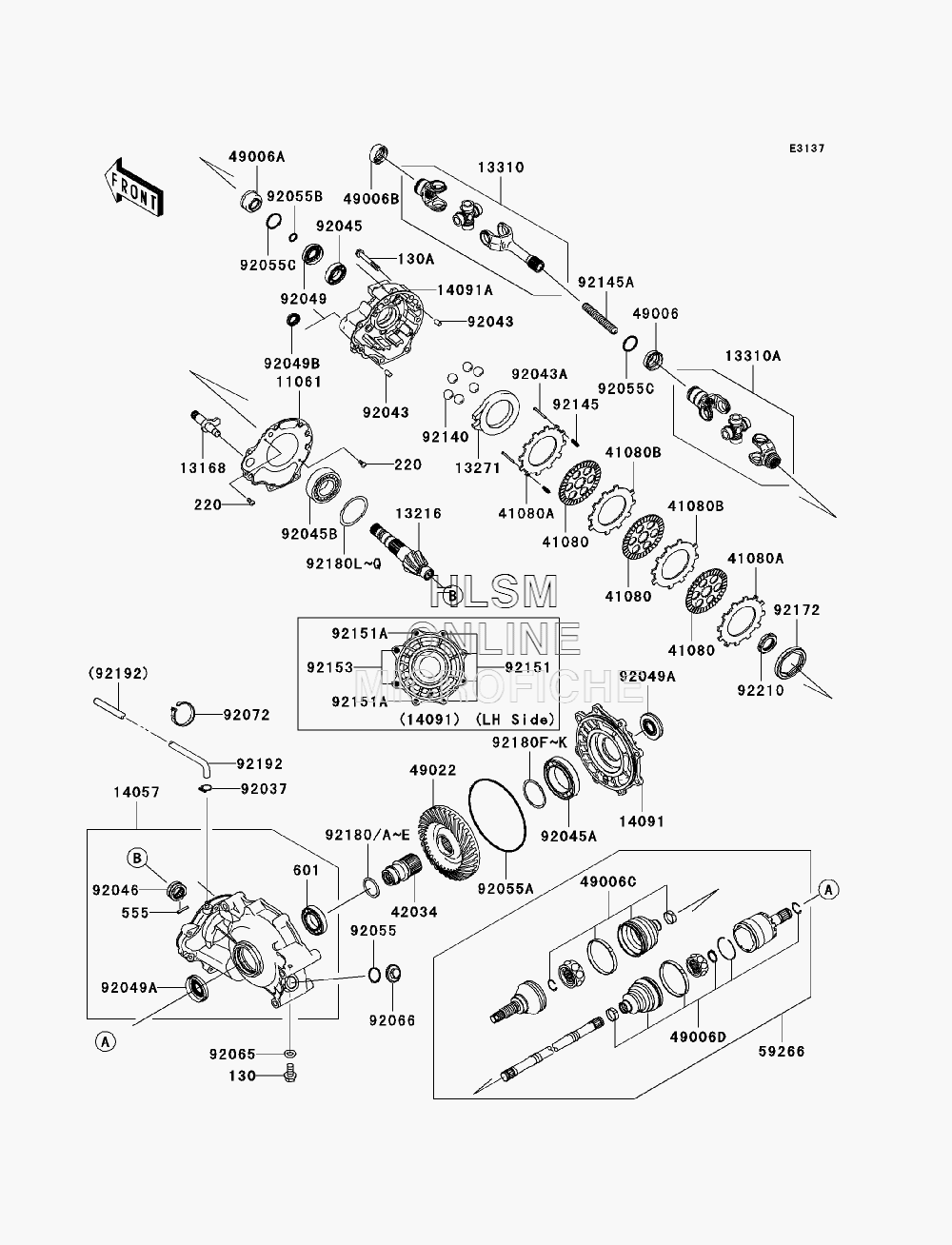

DRIVE SHAFT- REAR для Kawasaki BRUTE FORCE 750 4X4I (KVF750F8F) - 2008 года выпуска
-
№АртикулНазвание
-
1106111061-0059 GASKET, SOFT METALGASKET, SOFT METAL
-
1316813168-0042 LEVER, BRAKELEVER, BRAKE
-
1321613216-0017 GEAR - COMPGEAR - COMP
-
1327113271-0539 PLATE, CAMPLATE, CAM
-
1331013310-0013 SHAFT - ASSY, ENGINE SIDESHAFT - ASSY, ENGINE SIDE
-
13310A13310-0014 SHAFT - ASSY, GEAR - ASSY SIDESHAFT - ASSY, GEAR - ASSY SIDE
-
1405714057-0002 CASE - COMP - GEARCASE - COMP - GEAR
-
1409114091-0142 COVER (RIGHT)COVER (RIGHT)
-
14091A14091-0143 COVER, FRONTCOVER, FRONT
-
4108041080-1482 DISC, FRICTIONDISC, FRICTION
-
41080A41080-1483 DISC, PRESSUREDISC, PRESSURE
-
41080B41080-1484 DISC, SEPARATERDISC, SEPARATER
-
4203442034-0006 COUPLINGCOUPLING
-
4900649006-0007 BOOTBOOT
-
49006A49006-0008 BOOTBOOT
-
49006B49006-0021 BOOTBOOT
-
49006C49006-0064 BOOT, UJBOOT, UJ
-
49006D49006-0065 BOOT, DOJBOOT, DOJ
-
4902249022-0009 GEAR - BEVEL, 35TGEAR - BEVEL, 35T
-
5926659266-0023 JOINT - BALLJOINT - BALL
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
9204392043-1567 PIN, 8X14PIN, 8X14
-
92043A92043-1617 PIN, 3X35PIN, 3X35
-
9204592045-0077 BEARING - BALL, #6005BEARING - BALL, #6005
-
92045A92045-0078 BEARING - BALL, 55X90X18BEARING - BALL, 55X90X18
-
92045B92045-0099 BEARING - BALL, BX30 - 1C3 UR3BEARING - BALL, BX30 - 1C3 UR3
-
9204692046-1280 BEARING - NEEDLE, AH502504ABEARING - NEEDLE, AH502504A
-
9204992049-0028 SEAL - OIL, HTGY 24X45X9.5SEAL - OIL, HTGY 24X45X9.5
-
92049A92049-0029 SEAL - OIL, SDD7 25X57X7 HSSEAL - OIL, SDD7 25X57X7 HS
-
92049B92049-1537 SEAL - OIL, TC17X28X6SEAL - OIL, TC17X28X6
-
9205592055-0122 O-RINGO-RING
-
92055A92055-1631 O-RING, 158.5X3.70O-RING, 158.5X3.70
-
92055B92055-1633 O-RING, 18X24X3O-RING, 18X24X3
-
92055C92055-1693 O-RING, 30X35X2.5O-RING, 30X35X2.5
-
9206592065-023 GASKETGASKET
-
9206692066-1303 PLUGPLUG
-
9207292072-056 BAND, L=186BAND, L=186
-
9214092140-1064 BALL, D/O#12BALL, D/O#12
-
9214592145-1301 SPRING, REAR BRAKESPRING, REAR BRAKE
-
92145A92145-1304 SPRING, PROPELLER SHAFTSPRING, PROPELLER SHAFT
-
130130BA0816 BOLT - FLANGED, 8X16BOLT - FLANGED, 8X16
-
130A130CD0860 BOLT - FLANGED, 8X60BOLT - FLANGED, 8X60
-
220220AA0408 SCREW - PAN - CROS, 4X8SCREW - PAN - CROS, 4X8
-
555555A0428 PIN - SPRINGPIN - SPRING
-
601601A6007 BEARING - BALL, #6007BEARING - BALL, #6007
-
9215192151-1908 BOLT, 8X30BOLT, 8X30
-
92151A92151-1909 BOLT, 10X35BOLT, 10X35
-
9215392153-0311 BOLT, 12X35BOLT, 12X35
-
9217292172-0341 SCREW, SET, 75X10SCREW, SET, 75X10
-
9218092180-0161 SHIM, 35.2X44.0X1.2SHIM, 35.2X44.0X1.2
-
92180A92180-0162 SHIM, 35.2X44.0X1.0SHIM, 35.2X44.0X1.0
-
92180B92180-0163 SHIM, 35.2X44.0X0.8SHIM, 35.2X44.0X0.8
-
92180C92180-0164 SHIM, 35.2X44.0X0.5SHIM, 35.2X44.0X0.5
-
92180D92180-0165 SHIM, 35.2X44.0X0.2SHIM, 35.2X44.0X0.2
-
92180E92180-0166 SHIM, 35.2X44.0X0.15SHIM, 35.2X44.0X0.15
-
92180F92180-1417 SHIM, 55X64X0.15SHIM, 55X64X0.15
-
92180G92180-1418 SHIM, 55X64X0.20SHIM, 55X64X0.20
-
92180H92180-1419 SHIM, 55X64X0.50SHIM, 55X64X0.50
-
92180I92180-1420 SHIM, 55X64X0.80SHIM, 55X64X0.80
-
92180J92180-1421 SHIM, 55X64X1.00SHIM, 55X64X1.00
-
92180K92180-1422 SHIM, 55X64X1.20SHIM, 55X64X1.20
-
92180L92180-1423 SHIM, 60X72X0.15SHIM, 60X72X0.15
-
92180M92180-1424 SHIM, 60X72X0.20SHIM, 60X72X0.20
-
92180N92180-1425 SHIM, 60X72X0.50SHIM, 60X72X0.50
-
92180O92180-1426 SHIM, 60X72X0.80SHIM, 60X72X0.80
-
92180P92180-1427 SHIM, 60X72X1.00SHIM, 60X72X1.00
-
92180Q92180-1428 SHIM, 60X72X1.20SHIM, 60X72X1.20
-
9219292192-0210 TUBE, BREATHER, L=1680MMTUBE, BREATHER, L=1680MM
-
9221092210-1294 NUT, 30MMNUT, 30MM
