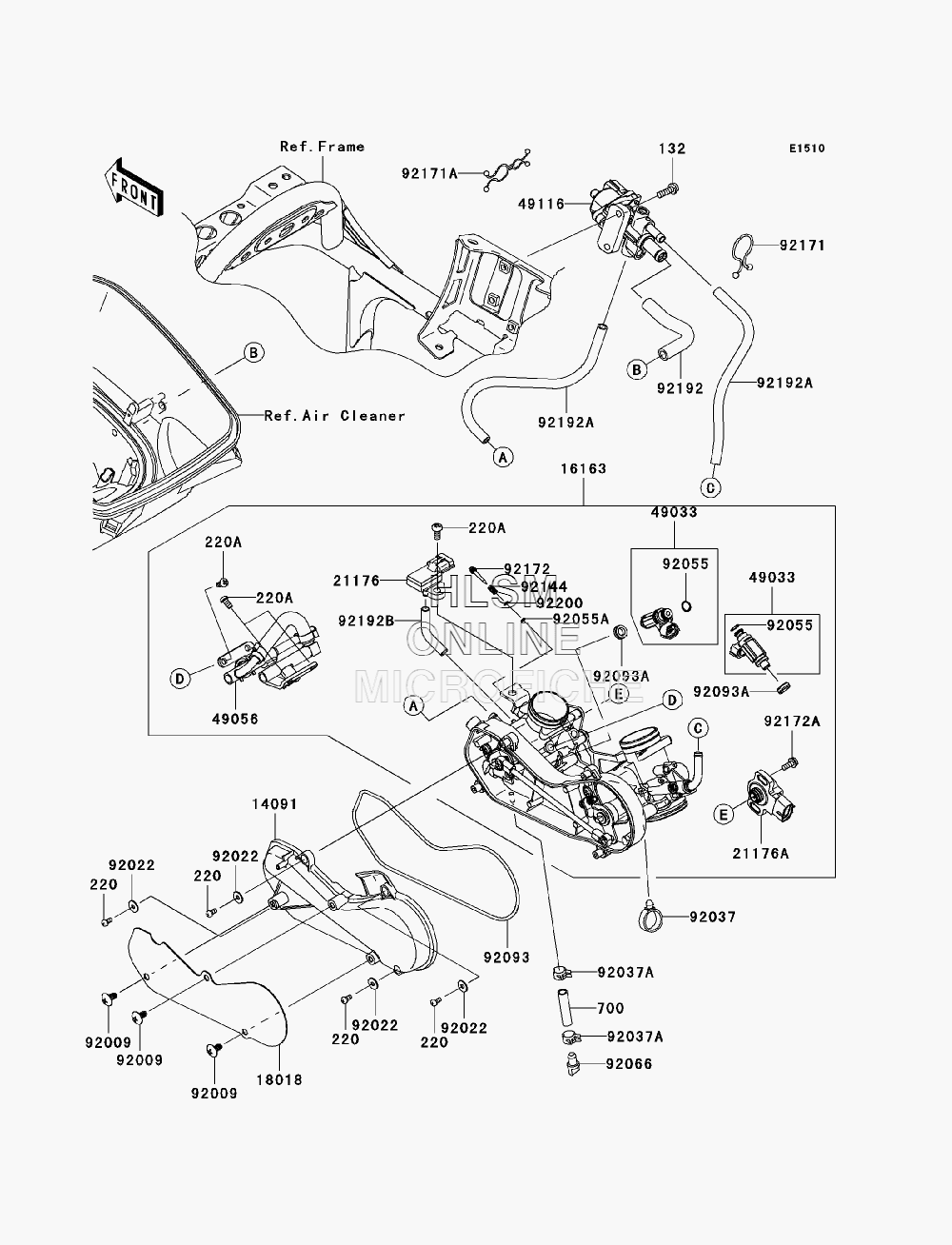

THROTTLE для Kawasaki BRUTE FORCE 750 4X4I (KVF750F8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132BD0618 BOLT - FLANGED - SMALL, 6X18BOLT - FLANGED - SMALL, 6X18
-
220220AA0408 SCREW - PAN - CROS, 4X8SCREW - PAN - CROS, 4X8
-
220A220AA0612 SCREW - PAN - CROSS, 6X12SCREW - PAN - CROSS, 6X12
-
700700Q0740 TUBE - PVCTUBE - PVC
-
1409114091-0737 COVERCOVER
-
1616316163-0125 THROTTLE - ASSY, 36EISTHROTTLE - ASSY, 36EIS
-
1801818018-0010 PLATE - HEAT GUARDPLATE - HEAT GUARD
-
2117621176-0058 SENSOR, PRESSURESENSOR, PRESSURE
-
21176A21176-0100 SENSOR, TPSSENSOR, TPS
-
4903349033-1060 NOZZLE - INJECTIONNOZZLE - INJECTION
-
4905649056-0021 PIPE - INJECTIONPIPE - INJECTION
-
4911649116-0021 VALVE - ASSYVALVE - ASSY
-
9200992009-1480 SCREW, 6X12SCREW, 6X12
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
92037A92037-2113 CLAMPCLAMP
-
9205592055-1622 O-RING, INJECTION NOZZLEO-RING, INJECTION NOZZLE
-
92055A92055-1658 O-RING, AIR SCREWO-RING, AIR SCREW
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9209392093-0082 SEALSEAL
-
92093A92093-0127 SEALSEAL
-
9214492144-1674 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
9217192171-1185 CLAMPCLAMP
-
92171A92171-1438 CLAMPCLAMP
-
9217292172-0156 SCREWSCREW
-
92172A92172-0254 SCREWSCREW
-
9219292192-0437 TUBETUBE
-
92192A92192-0439 TUBETUBE
-
92192B92192-0578 TUBE, 3.2X7.4X50TUBE, 3.2X7.4X50
-
9220092200-1564 WASHER, PILOT AIR SCREWWASHER, PILOT AIR SCREW
