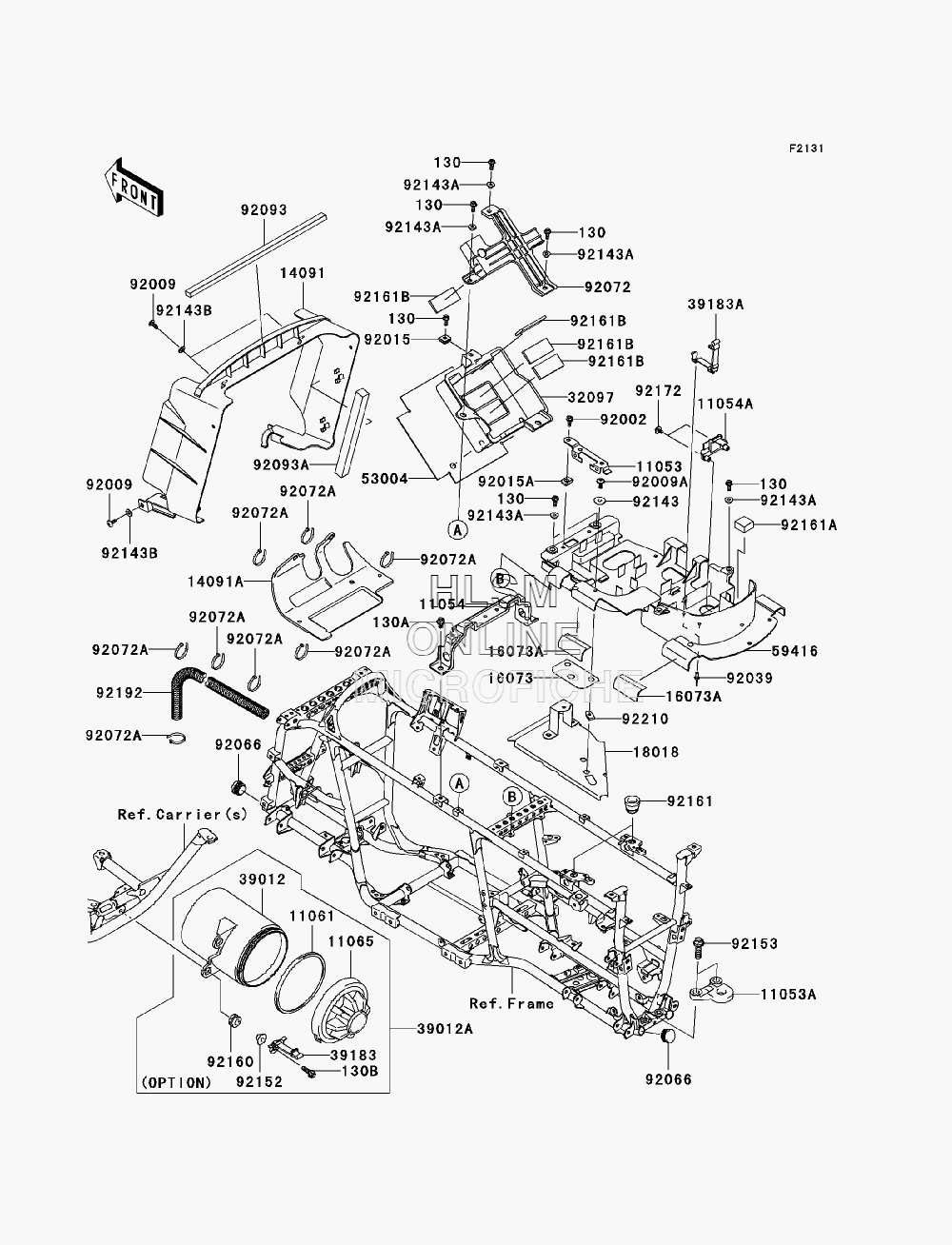

FRAME FITTINGS для Kawasaki BRUTE FORCE 750 4X4I (KVF750F8F) - 2008 года выпуска
-
№АртикулНазвание
-
1105311053-0937 BRACKET, FUSE ASSYBRACKET, FUSE ASSY
-
11053A11053-1638 BRACKET, TRAILER HITCHBRACKET, TRAILER HITCH
-
1105411054-1236 BRACKET, SEAT & BATTERY BANDBRACKET, SEAT & BATTERY BAND
-
11054A11054-1318 BRACKET, RELAYBRACKET, RELAY
-
1106111061-0072 GASKET, TOOL CASE (OPTION)GASKET, TOOL CASE (OPTION)
-
1106511065-0088 CAP, TOOL CASE (OPTION)CAP, TOOL CASE (OPTION)
-
1409114091-0338 COVER, RADIATORCOVER, RADIATOR
-
14091A14091-0540 COVER, AIR CLEANERCOVER, AIR CLEANER
-
1607316073-0035 INSULATOR, ELECTRIC CASEINSULATOR, ELECTRIC CASE
-
16073A16073-0036 INSULATOR, ELECTRIC CASEINSULATOR, ELECTRIC CASE
-
1801818018-0009 PLATE - HEAT GUARDPLATE - HEAT GUARD
-
3209732097-0009 CASE - BATTERYCASE - BATTERY
-
3901239012-0005 CASE - STORAGE (OPTION)CASE - STORAGE (OPTION)
-
39012A39012-5013 CASE - STORAGE, ASSY (OPTION)CASE - STORAGE, ASSY (OPTION)
-
3918339183-0003 BAND - ASSY, TOOL BAG (OPTION)BAND - ASSY, TOOL BAG (OPTION)
-
39183A39183-1065 BAND - ASSY, TOOL BAGBAND - ASSY, TOOL BAG
-
5300453004-0002 MAT, BATTERY CASEMAT, BATTERY CASE
-
5941659416-0004 CASE - ELECTRICCASE - ELECTRIC
-
9200292002-1571 BOLT, 6X16BOLT, 6X16
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1094 NUT, 6MMNUT, 6MM
-
92015A92015-1602 NUT, 6MMNUT, 6MM
-
9203992039-3719 RIVET, 4.8MMRIVET, 4.8MM
-
9206692066-0036 PLUGPLUG
-
9207292072-0033 BAND, BATTERYBAND, BATTERY
-
92072A92072-1239 BAND, L=188BAND, L=188
-
9209392093-0024 SEAL, L=408SEAL, L=408
-
92093A92093-0028 SEAL, L=250SEAL, L=250
-
9214392143-1025 COLLAR, L=6.5COLLAR, L=6.5
-
92143A92143-1057 COLLARCOLLAR
-
92143B92143-1087 COLLARCOLLAR
-
9215292152-0155 COLLAR (OPTION)COLLAR (OPTION)
-
9215392153-0847 BOLT, FLANGED, 12X35BOLT, FLANGED, 12X35
-
9216092160-1151 DAMPER (OPTION)DAMPER (OPTION)
-
130130BB0616 BOLT - FLANGED, 6X16BOLT - FLANGED, 6X16
-
130A130BB0812 BOLT - FLANGED, 8X12BOLT - FLANGED, 8X12
-
130B130BB0825 BOLT - FLANGED, 8X25 (OPTION)BOLT - FLANGED, 8X25 (OPTION)
-
9216192161-0048 DAMPERDAMPER
-
92161A92161-0618 DAMPER, SENSORDAMPER, SENSOR
-
92161B92161-1127 DAMPERDAMPER
-
9217292172-0175 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9219292192-0572 TUBE, COREARUGATED, L=840TUBE, COREARUGATED, L=840
-
9221092210-1331 NUTNUT
