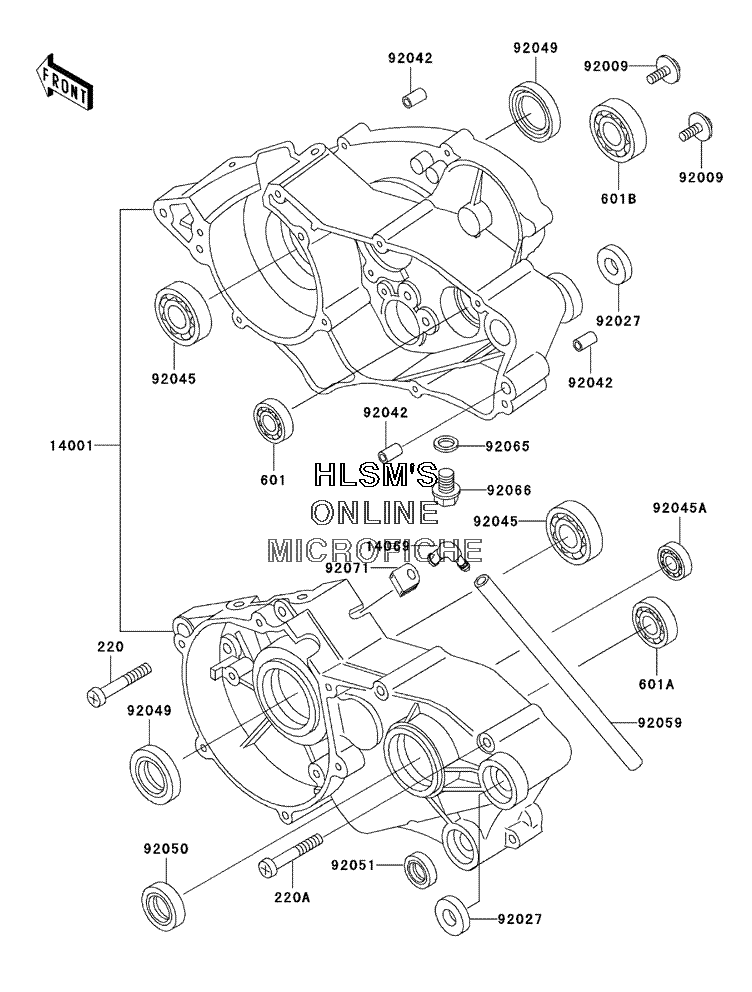

CRANKCASE для Kawasaki KX 60 - 2000 года выпуска
-
№АртикулНазвание
-
220220B0635 SCREW, PAN, CROS, 6X35SCREW, PAN, CROS, 6X35
-
220A220B0660 SCREW, PAN, CROS, 6X60SCREW, PAN, CROS, 6X60
-
601601A6002 BEARING, BALL, #6002BEARING, BALL, #6002
-
601A601A6004 BEARING, BALL, #6004BEARING, BALL, #6004
-
601B601A6203 BEARING, BALL, #6203BEARING, BALL, #6203
-
1400114001-5151 SET, CRANKCASESET, CRANKCASE
-
1406914069-002 BREATHER, CRANKCASEBREATHER, CRANKCASE
-
9200992009-1103 SCREW, 6X15SCREW, 6X15
-
9202792027-1744 COLLAR, 12.1X26X6COLLAR, 12.1X26X6
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-1059 BEARING, BAL(LEFT, RIGHT) 6304C3BEARING, BAL(LEFT, RIGHT) 6304C3
-
92045A92045-1235 BEARING, BALL, 6001C3ML01BEARING, BALL, 6001C3ML01
-
9204992049-1188 SEAL, OIL, SD20407GSSEAL, OIL, SD20407GS
-
9205092050-013 SEAL, OIL, SC25376SEAL, OIL, SC25376
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205992059-1074 TUBE, 6X9X280TUBE, 6X9X280
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1241 PLUG, DRAINPLUG, DRAIN
-
9207192071-042 GROMMET, BREATHERGROMMET, BREATHER
