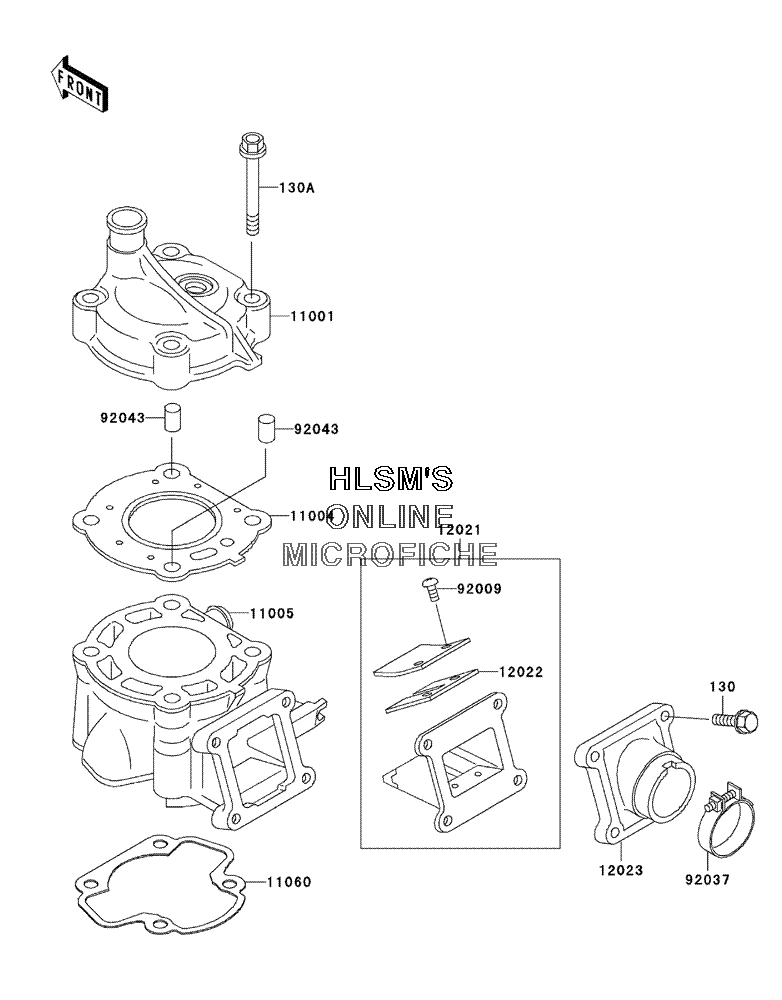

CYLINDER HEAD W/CYLINDER для Kawasaki KX 60 - 2000 года выпуска
-
№АртикулНазвание
-
130130G0620 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
130A130P08105 BOLT, FLANGEDBOLT, FLANGED
-
1100111001-1175 HEAD, CYLINDERHEAD, CYLINDER
-
1100411004-1218 GASKET, HEADGASKET, HEAD
-
1100511005-1378 CYLINDER, ENGINECYLINDER, ENGINE
-
1106011060-1873 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1202112021-1015 VALVE, ASSY., REEDVALVE, ASSY., REED
-
1202212022-1013 VALVE, REED, T=0.42VALVE, REED, T=0.42
-
1202312023-1019 HOLDER, VALVE, REEDHOLDER, VALVE, REED
-
9200992009-1014 SCREW, REED VALVESCREW, REED VALVE
-
9203792037-1305 CLAMPCLAMP
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
