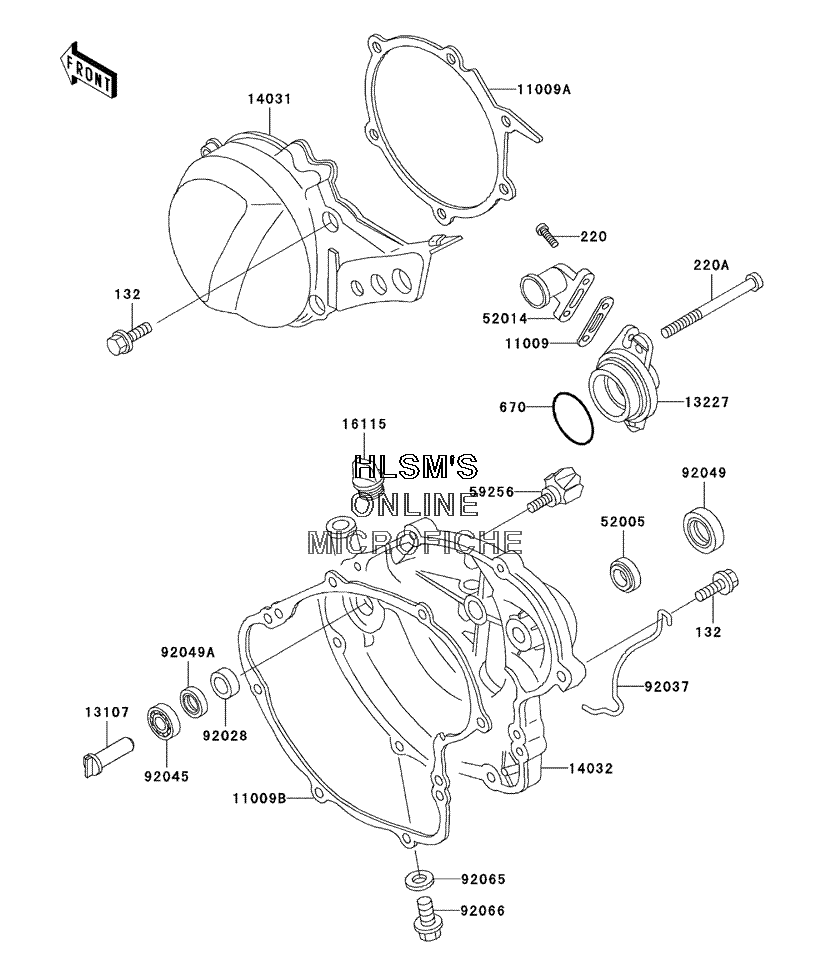

ENGINE COVER для Kawasaki KX 60 - 2000 года выпуска
-
№АртикулНазвание
-
132132G0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0520 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220B0675 SCREW, PAN, CROS, 6X75SCREW, PAN, CROS, 6X75
-
670670B3039 O-RING, 39MMO-RING, 39MM
-
1100911009-1952 GASKET, ELBOWGASKET, ELBOW
-
11009A11009-1974 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11009B11009-1976 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1310713107-1123 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
1322713227-1069 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
1403114031-1215 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1246 COVER, CLUTCHCOVER, CLUTCH
-
1611516115-018 CAP, OIL FILLERCAP, OIL FILLER
-
5200552005-1055 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5201452014-1067 ELBOWELBOW
-
5925659256-1052 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
9202892028-1317 BUSHINGBUSHING
-
9203792037-1236 CLAMP, TUBECLAMP, TUBE
-
9204592045-1305 BEARING, BALL, 608MC3BEARING, BALL, 608MC3
-
9204992049-002 SEAL, OIL, SB16244SEAL, OIL, SB16244
-
92049A92049-1366 SEAL, OIL, MHSD8X18X10J, 1SEAL, OIL, MHSD8X18X10J, 1
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1241 PLUG, DRAINPLUG, DRAIN
