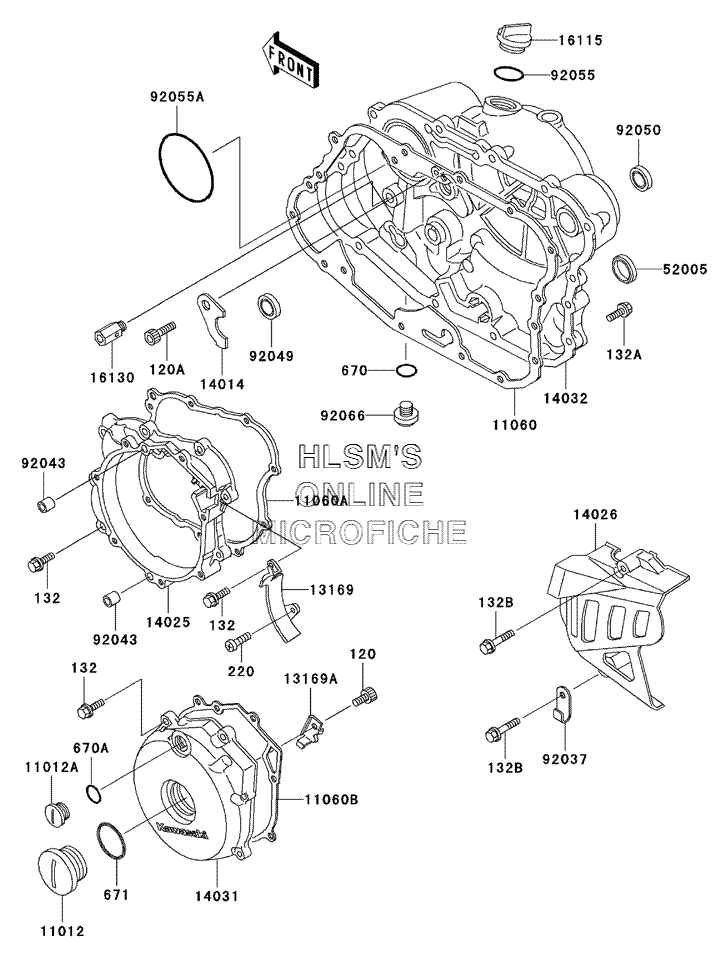

ENGINE COVER для Kawasaki KLR250 - 2001 года выпуска
-
№АртикулНазвание
-
120120P0608 BOLT, SOCKETBOLT, SOCKET
-
120A120P0610 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
132132J0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0645 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0608 SCREW, PAN, CROS, 6X8SCREW, PAN, CROS, 6X8
-
670670B2011 O-RING, 11MMO-RING, 11MM
-
670A670B2018 O-RING, 18MMO-RING, 18MM
-
671671B2540 O-RING, 40MMO-RING, 40MM
-
1101211012-1362 CAPCAP
-
11012A11012-1363 CAP, TOP MARKCAP, TOP MARK
-
1106011060-1127 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11060A11060-1128 GASKET, GENERATOR CASE COVERGASKET, GENERATOR CASE COVER
-
11060B11060-1129 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1316913169-1879 PLATEPLATE
-
13169A13169-1880 PLATE, GENERATOR LEADPLATE, GENERATOR LEAD
-
1401414014-1062 PLATE, POSITIONPLATE, POSITION
-
1402514025-1911 COVER, GENERATOR CASECOVER, GENERATOR CASE
-
1402614026-1112 COVER, CHAINCOVER, CHAIN
-
1403114031-1238 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1277 COVER, CLUTCHCOVER, CLUTCH
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
1613016130-1001 VALVE, ASSY, RELIEFVALVE, ASSY, RELIEF
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9203792037-1069 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204992049-1191 SEAL, OILSEAL, OIL
-
9205092050-078 SEAL, OILSEAL, OIL
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055A92055-1221 O-RING, 62.6X66X3.1O-RING, 62.6X66X3.1
-
9206692066-1156 PLUG, DRAINPLUG, DRAIN
