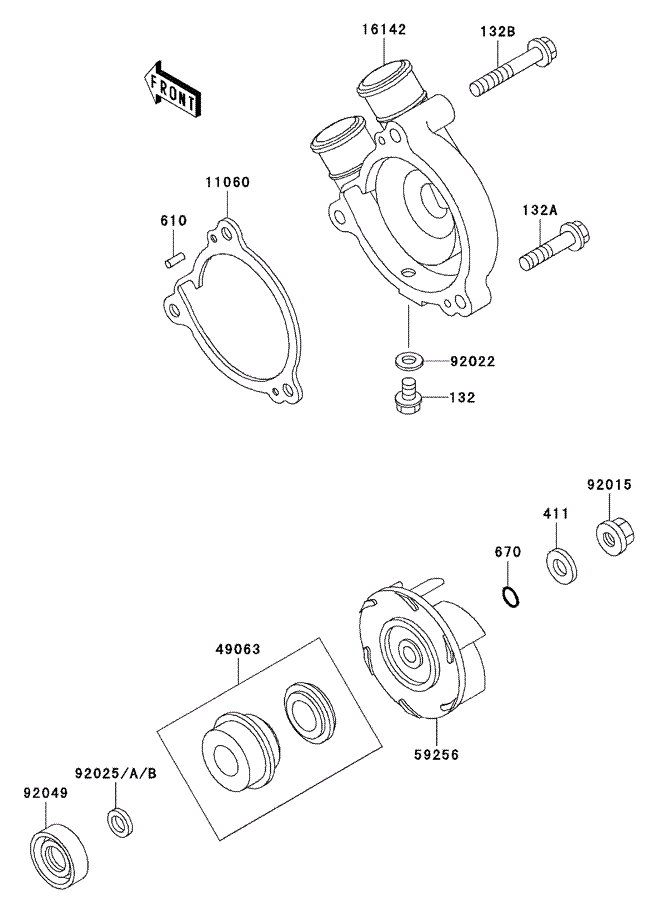

WATER PUMP для Kawasaki KLR250 - 2001 года выпуска
-
№АртикулНазвание
-
132132J0608 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0645 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
411411F0600 WASHER, PLAIN, 6MM (BLACK)WASHER, PLAIN, 6MM (BLACK)
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
670670B1506 O-RING, 6MMO-RING, 6MM
-
1106011060-1131 GASKET, WATER PUMPGASKET, WATER PUMP
-
1614216142-1055 COVER, PUMPCOVER, PUMP
-
4906349063-1054 SEAL, MECHANICALSEAL, MECHANICAL
-
5925659256-1055 IMPELLERIMPELLER
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202592025-1503 SHIM, T=0.8SHIM, T=0.8
-
92025A92025-1506 SHIM, T=1.4SHIM, T=1.4
-
92025B92025-1507 SHIM, T=0.8SHIM, T=0.8
-
9204992049-1157 SEAL, OIL, SC10227SEAL, OIL, SC10227
