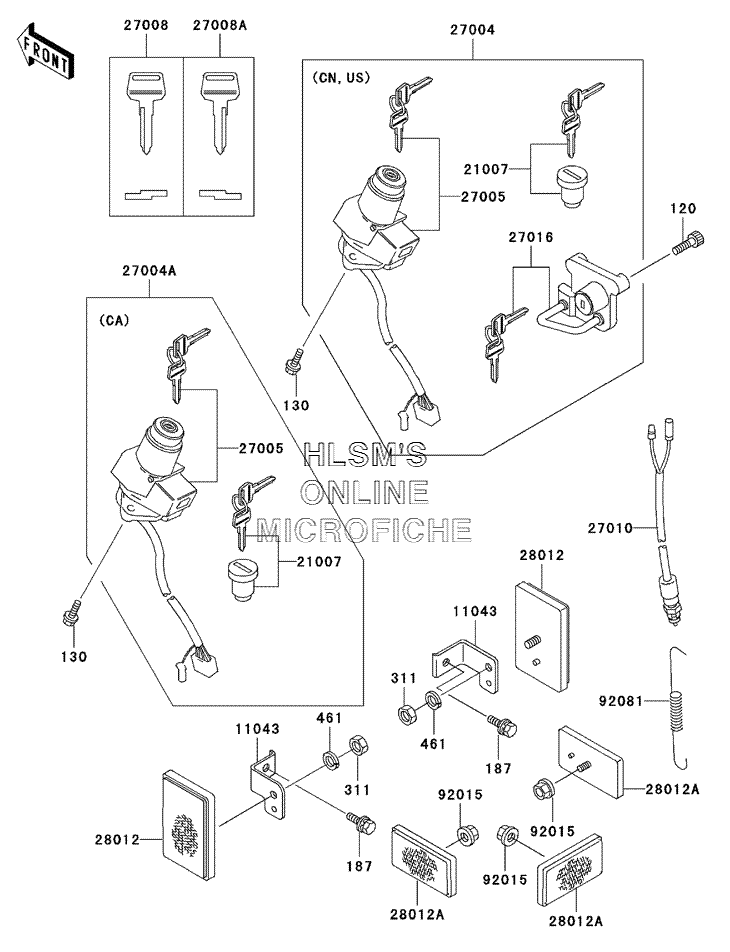

IGNITION SWITCH для Kawasaki KLR250 - 2001 года выпуска
-
№АртикулНазвание
-
120120S0612 BOLT, SOCKET (US ONLY)BOLT, SOCKET (US ONLY)
-
130130D0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
187187C0614 BOLT, UPSET, WSPBOLT, UPSET, WSP
-
311311B0500 NUT, HEXNUT, HEX
-
461461F0500 WASHER, SPRING, 5MMWASHER, SPRING, 5MM
-
1104311043-1362 BRACKET, REFLECTOR, FRONTBRACKET, REFLECTOR, FRONT
-
2100721007-5022 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700427004-5397 SWITCH, ASSY (US ONLY)SWITCH, ASSY (US ONLY)
-
27004A27004-5414 SWITCH, ASSY (CALIF. ONLY)SWITCH, ASSY (CALIF. ONLY)
-
2700527005-1103 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1034 KEY, LOCK, BLANK, #A (OPT)KEY, LOCK, BLANK, #A (OPT)
-
27008A27008-1035 KEY, LOCK, BLANK, #B (OPT)KEY, LOCK, BLANK, #B (OPT)
-
2701027010-1019 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-5075 LOCK, ASSY, HELMET (US ONLY)LOCK, ASSY, HELMET (US ONLY)
-
2801228012-1003 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012A28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9208192081-1704 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
