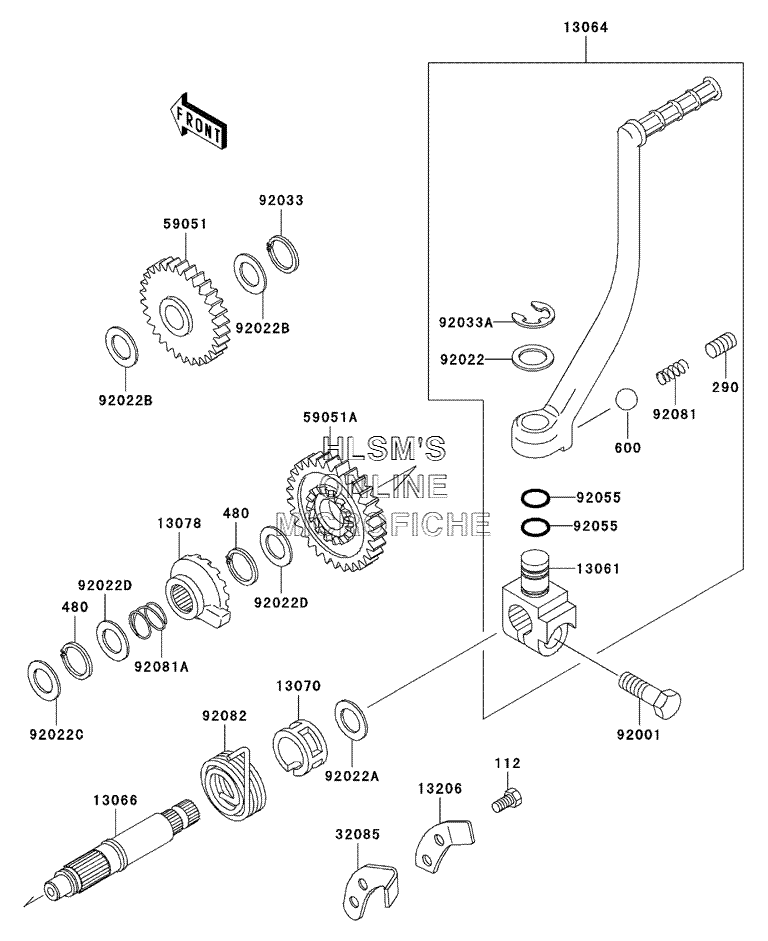

KICKSTARTER MECHANISM для Kawasaki KLR250 - 2001 года выпуска
-
№АртикулНазвание
-
112112G0618 BOLT, UPSETBOLT, UPSET
-
290290Q0808 SCREW, SET, SOCKET, 8X8SCREW, SET, SOCKET, 8X8
-
480480J1600 CIRCLIP, TYPE, C, 16MMCIRCLIP, TYPE, C, 16MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
1306113061-1131 BOSS, KICK PEDALBOSS, KICK PEDAL
-
1306413064-1121 LEVER, ASSY, KICK, PEDALLEVER, ASSY, KICK, PEDAL
-
1306613066-1088 SHAFT, KICKSHAFT, KICK
-
1307013070-011 GUIDE, KICK SPRINGGUIDE, KICK SPRING
-
1307813078-1052 RATCHETRATCHET
-
1320613206-1054 GUIDE, KICKGUIDE, KICK
-
3208532085-1027 STOPPER, KICKSTARTERSTOPPER, KICKSTARTER
-
5905159051-1120 GEAR, SPUR, IDLE (28 TEETH)GEAR, SPUR, IDLE (28 TEETH)
-
59051A59051-1131 GEAR, SPUR, KICK (29 TEETH)GEAR, SPUR, KICK (29 TEETH)
-
9200192001-1042 BOLT, 8X28BOLT, 8X28
-
9202292022-1019 WASHER, 15.2X20X1WASHER, 15.2X20X1
-
92022A92022-118 WASHER, 18.5X23X1.2WASHER, 18.5X23X1.2
-
92022B92022-1614 WASHER, 17.3X25X0.5WASHER, 17.3X25X0.5
-
92022C92022-269 WASHER, 12.3X20X0.5WASHER, 12.3X20X0.5
-
92022D92022-315 WASHER, 16.8X22X0.5WASHER, 16.8X22X0.5
-
9203392033-032 RING, SNAPRING, SNAP
-
92033A92033-1166 RING, SNAP, 10MMRING, SNAP, 10MM
-
9205592055-061 O-RING, 10X1.5O-RING, 10X1.5
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-122 SPRING, RATCHETSPRING, RATCHET
-
9208292082-003 SPRING, KICKSTARTERSPRING, KICKSTARTER
