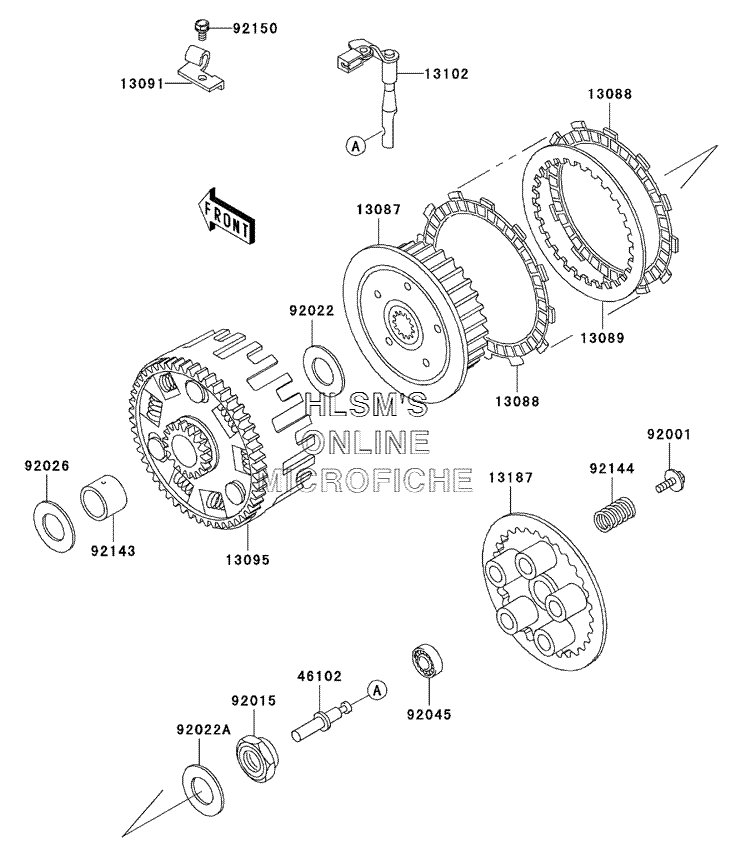

CLUTCH для Kawasaki KLR650 - 2001 года выпуска
-
№АртикулНазвание
-
1308713087-1164 HUB, CLUTCHHUB, CLUTCH
-
1308813088-040 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1068 PLATE, CLUTCH, T=2.0PLATE, CLUTCH, T=2.0
-
1309113091-1257 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1309513095-1311 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-1128 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1318713187-1080 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
4610246102-1030 ROD, CLUTCHROD, CLUTCH
-
9200192001-1066 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1476 WASHER, 25.5X52.6X2WASHER, 25.5X52.6X2
-
92022A92022-1868 WASHERWASHER
-
9202692026-1206 SPACER, 25.1X38X4SPACER, 25.1X38X4
-
9204592045-1408 BEARING, BALLBEARING, BALL
-
9214392143-1769 COLLARCOLLAR
-
9214492144-1559 SPRING, CLUTCHSPRING, CLUTCH
-
9215092150-1965 BOLT, 6X12BOLT, 6X12
