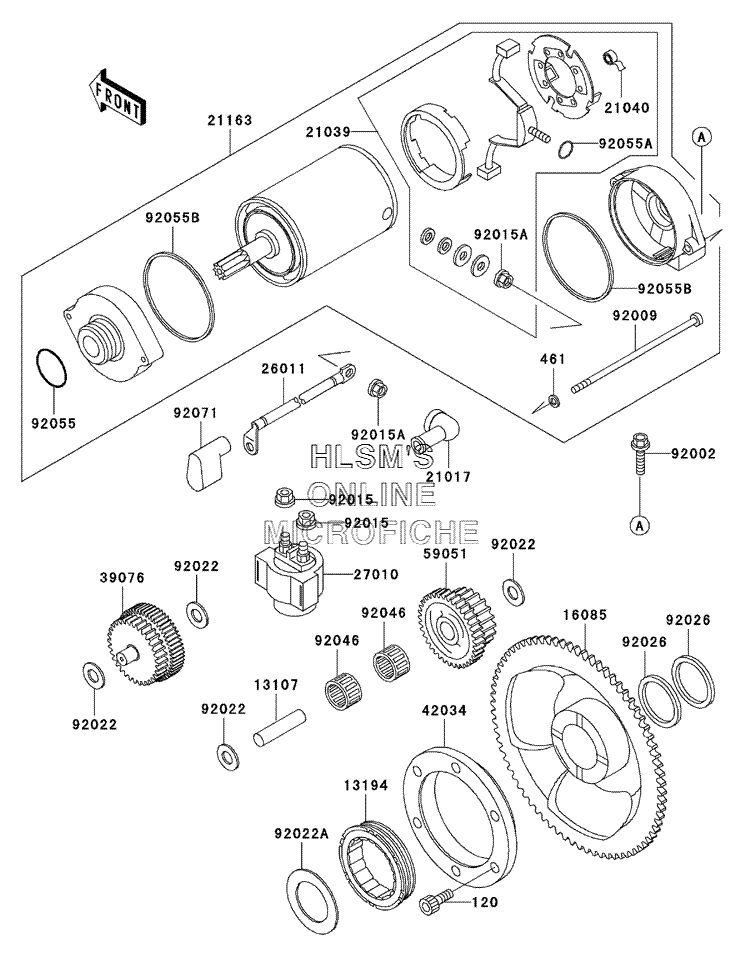

STARTER MOTOR для Kawasaki KLR650 - 2001 года выпуска
-
№АртикулНазвание
-
120120P0818 BOLT, SOCKETBOLT, SOCKET
-
461461F0500 WASHER, SPRING, 5MMWASHER, SPRING, 5MM
-
1310713107-1135 SHAFT, IDLERSHAFT, IDLER
-
1319413194-1089 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1608516085-1205 GEAR, ONEWAY CLUTCHGEAR, ONEWAY CLUTCH
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2103921039-1060 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1055 SPRING, BRUSHSPRING, BRUSH
-
2116321163-1108 STARTER, ELECTRICSTARTER, ELECTRIC
-
2601126011-1397 WIRE, LEAD, STARTER MOTORWIRE, LEAD, STARTER MOTOR
-
2701027010-1314 SWITCH, STARTERSWITCH, STARTER
-
3907639076-1056 LIMITER, STARTER IDLE GEARLIMITER, STARTER IDLE GEAR
-
4203442034-1094 COUPLINGCOUPLING
-
5905159051-1133 GEAR, SPUR (20/37 TEETH)GEAR, SPUR (20/37 TEETH)
-
9200292002-1086 BOLT, 6X25BOLT, 6X25
-
9200992009-1369 SCREWSCREW
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1649 WASHER, 10.2X20X0.5WASHER, 10.2X20X0.5
-
92022A92022-1650 WASHER, 32.2X50X1.0WASHER, 32.2X50X1.0
-
9202692026-1474 SPACERSPACER
-
9204692046-1134 BEARING, NEEDLE, K10X14X10BEARING, NEEDLE, K10X14X10
-
9205592055-1276 O-RINGO-RING
-
92055A92055-1370 O-RING, 4.5X2.0O-RING, 4.5X2.0
-
92055B92055-1381 O-RING, STARTER MOTORO-RING, STARTER MOTOR
-
9207192071-1130 GROMMET, TERMINALGROMMET, TERMINAL
