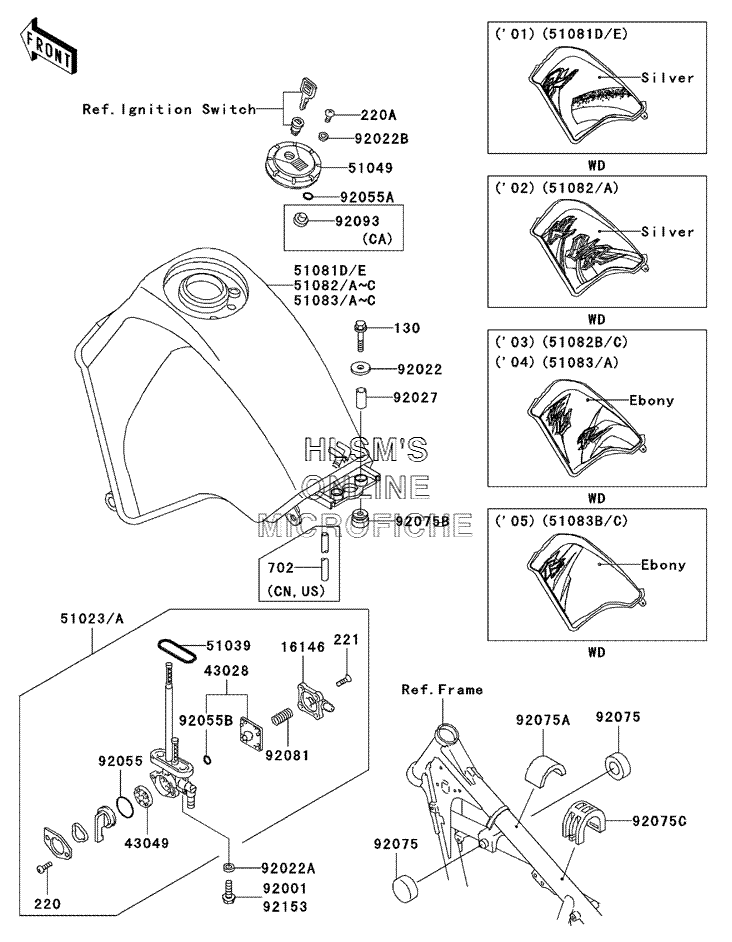

FUEL TANK для Kawasaki KLR650 - 2001 года выпуска
-
№АртикулНазвание
-
1614616146-1010 COVER, ASSY, TAP DIAPHRAGMCOVER, ASSY, TAP DIAPHRAGM
-
4302843028-1033 DIAPHRAGMDIAPHRAGM
-
4304943049-1103 PACKINGPACKING
-
51023A51023-1390 TAP, ASSY, FUELTAP, ASSY, FUEL
-
5103951039-003 RING, TAP FLANGEDRING, TAP FLANGED
-
5104951049-1134 CAP, TANK, FUELCAP, TANK, FUEL
-
5108251082-5091-F2 TANK, COMP, FUEL (G.SILVER) (EXCEPT CALIF.)TANK, COMP, FUEL (G.SILVER) (EXCEPT CALIF.)
-
51082A51082-5109-F2 TANK, COMP, FUEL (G.SILVER) (CALIF. ONLY)TANK, COMP, FUEL (G.SILVER) (CALIF. ONLY)
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
92022A92022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
92022B92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9202792027-1856 COLLAR, 6.8X10X20COLLAR, 6.8X10X20
-
9205592055-1085 O-RING, TAP LEVERO-RING, TAP LEVER
-
92055A92055-1552 O-RING, ID=9O-RING, ID=9
-
92055B92055-1664 O-RINGO-RING
-
9207592075-101 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1507 DAMPERDAMPER
-
92075B92075-1660 DAMPERDAMPER
-
92075C92075-1862 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9208192081-1240 SPRING, TAP DIAPHRAGMSPRING, TAP DIAPHRAGM
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9215392153-0746 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
130130J0630 BOLT, FLANGED, 6X30 (BLACK)BOLT, FLANGED, 6X30 (BLACK)
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
221221B0414 SCREW, CSK, CROS, 4X14SCREW, CSK, CROS, 4X14
-
702702A05620 TUBE, RUBBER, 5X8X620 (EXCEPT CALIF.)TUBE, RUBBER, 5X8X620 (EXCEPT CALIF.)
