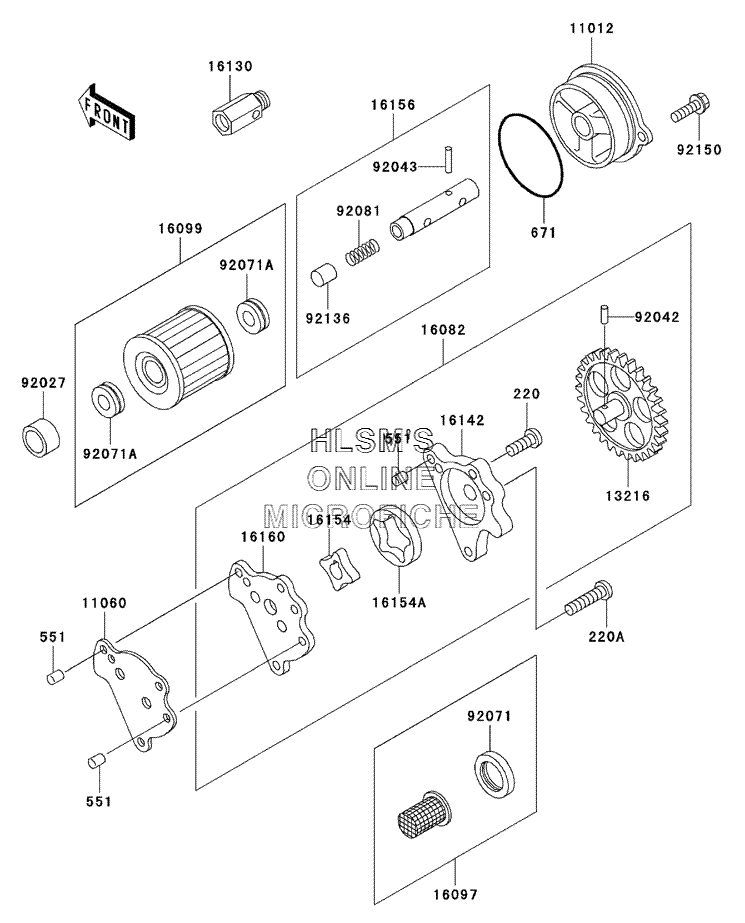

OIL PUMP для Kawasaki KLR650 - 2001 года выпуска
-
№АртикулНазвание
-
220220B0616 SCREW, PAN, CROS, 6X16SCREW, PAN, CROS, 6X16
-
220A220B0625 SCREW, PAN, CROS, 6X25SCREW, PAN, CROS, 6X25
-
551551A0608 PIN, DOWEL, 6X8PIN, DOWEL, 6X8
-
671671B2555 O-RING, 55MMO-RING, 55MM
-
1101211012-1695 CAP, OIL FILTERCAP, OIL FILTER
-
1106011060-1115 GASKET, OIL PUMPGASKET, OIL PUMP
-
1321613216-1110 GEAR, COMP, OIL PUMPGEAR, COMP, OIL PUMP
-
1608216082-1088 PUMP, ASSY, OILPUMP, ASSY, OIL
-
1609716097-1001 FILTER, ASSY, OILFILTER, ASSY, OIL
-
1609916099-004 ELEMENT, OIL FILTERELEMENT, OIL FILTER
-
1613016130-1001 VALVE, ASSY, RELIEFVALVE, ASSY, RELIEF
-
1614216142-1078 COVER, PUMPCOVER, PUMP
-
1615416154-1069 ROTOR, PUMP, INNERROTOR, PUMP, INNER
-
16154A16154-1070 ROTOR, PUMP, OUTERROTOR, PUMP, OUTER
-
1615616156-002 PISTON, ASSY, VALVE, BY, PASSPISTON, ASSY, VALVE, BY, PASS
-
1616016160-1137 BODYBODY
-
9202792027-1695 COLLAR, 13X20X9COLLAR, 13X20X9
-
9204292042-041 PIN, DOWEL, 4X12.8PIN, DOWEL, 4X12.8
-
9204392043-123 PIN, SPRING, 2.2X13.5PIN, SPRING, 2.2X13.5
-
9207192071-100 GROMMET, OIL STRAINERGROMMET, OIL STRAINER
-
92071A92071-101 GROMMET, OIL FILTERGROMMET, OIL FILTER
-
9208192081-043 SPRING, PISTONSPRING, PISTON
-
9213692136-002 VALVEVALVE
-
9215092150-1010 BOLT, 6X20BOLT, 6X20
