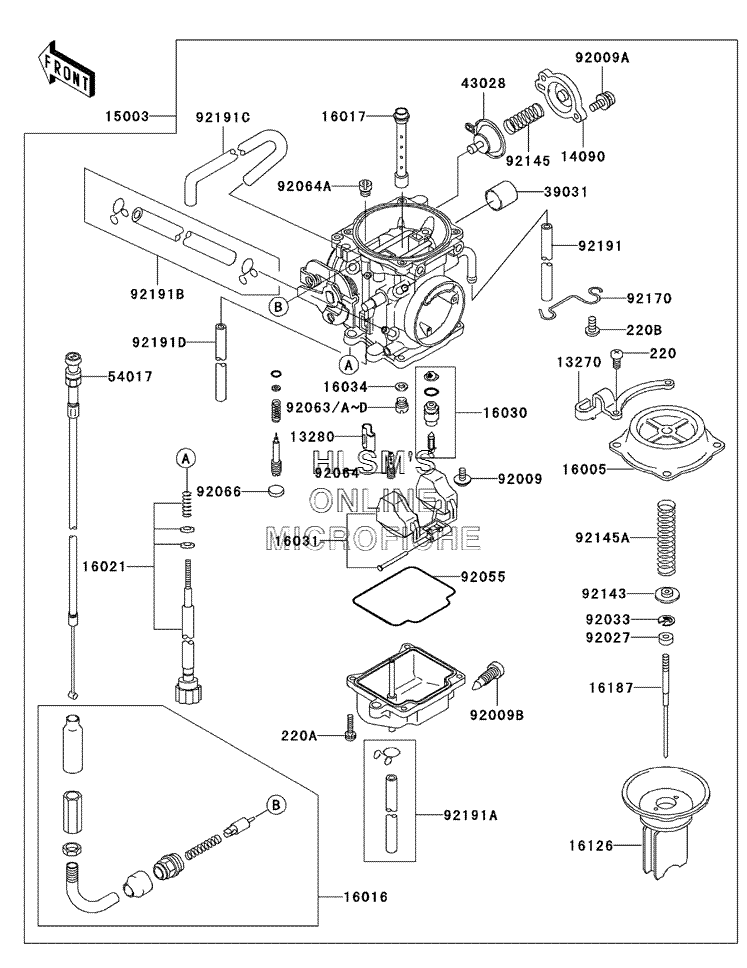

CARBURETOR для Kawasaki Super Sherpa - 2001 года выпуска
-
№АртикулНазвание
-
1327013270-1907 PLATE, CHAMBER TOPPLATE, CHAMBER TOP
-
1328013280-1077 HOLDERHOLDER
-
1409014090-1873 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1500315003-1641 CARBURETOR, ASSYCARBURETOR, ASSY
-
1600516005-1080 TOP, CHAMBER, MIXINGTOP, CHAMBER, MIXING
-
1601616016-1111 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1410 JET, NEEDLE, P, 3MJET, NEEDLE, P, 3M
-
1602116021-1215 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1603016030-1085 VALVE, FLOATVALVE, FLOAT
-
1603116031-1091 FLOATFLOAT
-
1603416034-001 WASHER, MAIN JETWASHER, MAIN JET
-
1612616126-1347 VALVE, VACUUMVALVE, VACUUM
-
1618716187-1124 NEEDLE, JET, 4C16NEEDLE, JET, 4C16
-
3903139031-1007 CAP, END, CARBURETORCAP, END, CARBURETOR
-
4302843028-1026 DIAPHRAGM, COASTING RICHERDIAPHRAGM, COASTING RICHER
-
5401754017-1196 CABLE, STARTERCABLE, STARTER
-
9200992009-1810 SCREWSCREW
-
92009A92009-1811 SCREWSCREW
-
92009B92009-1812 SCREW, DRAINSCREW, DRAIN
-
9202792027-1103 COLLAR, THROTTLE VALVECOLLAR, THROTTLE VALVE
-
9203392033-1290 RING, SNAPRING, SNAP
-
9205592055-1575 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1100 JET, MAIN, #A127.5JET, MAIN, #A127.5
-
92063A92063-1101 JET, MAIN, #A122.5 (OPT)JET, MAIN, #A122.5 (OPT)
-
92063B92063-1102 JET, MAIN, #A125 (OPT)JET, MAIN, #A125 (OPT)
-
92063C92063-1103 JET, MAIN, #A130 (OPT)JET, MAIN, #A130 (OPT)
-
92063D92063-1104 JET, MAIN, #A132.5 (OPT)JET, MAIN, #A132.5 (OPT)
-
9206492064-1183 JET, PILOT, #A17.5JET, PILOT, #A17.5
-
92064A92064-1205 JET, PILOT, #90JET, PILOT, #90
-
9206692066-1501 PLUG, PILOT AIR SCREWPLUG, PILOT AIR SCREW
-
9214392143-1986 COLLARCOLLAR
-
9214592145-1103 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
92145A92145-1104 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
9217092170-1816 CLAMPCLAMP
-
9219192191-1199 TUBE, 5X8X400TUBE, 5X8X400
-
92191A92191-1200 TUBE, 3X7X350TUBE, 3X7X350
-
220220D0410 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0412 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
220B220D0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
92191B92191-1201 TUBE, 5.3X10.5X175TUBE, 5.3X10.5X175
-
92191C92191-1202 TUBE, L=290TUBE, L=290
-
92191D92191-1203 TUBE, 3X5X350TUBE, 3X5X350
