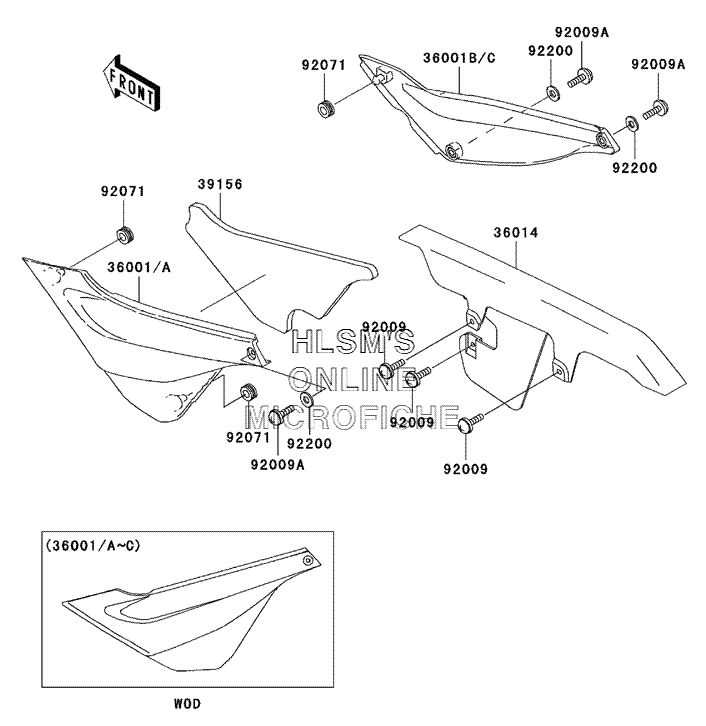

SIDE COVER(S) W/ CHAIN COVER для Kawasaki Super Sherpa - 2001 года выпуска
-
№АртикулНазвание
-
36001A36001-1580-68 COVER, SIDE (LEFT) (O.GREEN)COVER, SIDE (LEFT) (O.GREEN)
-
36001C36001-1581-68 COVER, SIDE (RIGHT) (O.GREEN)COVER, SIDE (RIGHT) (O.GREEN)
-
3601436014-1209 CASE, CHAINCASE, CHAIN
-
3915639156-1580 PAD, SIDE COVER (LEFT)PAD, SIDE COVER (LEFT)
-
9200992009-1661 SCREW, 6X10SCREW, 6X10
-
92009A92009-1806 SCREW, 6X16SCREW, 6X16
-
9207192071-056 GROMMETGROMMET
-
9220092200-1388 WASHER, 6.5X14X1WASHER, 6.5X14X1
